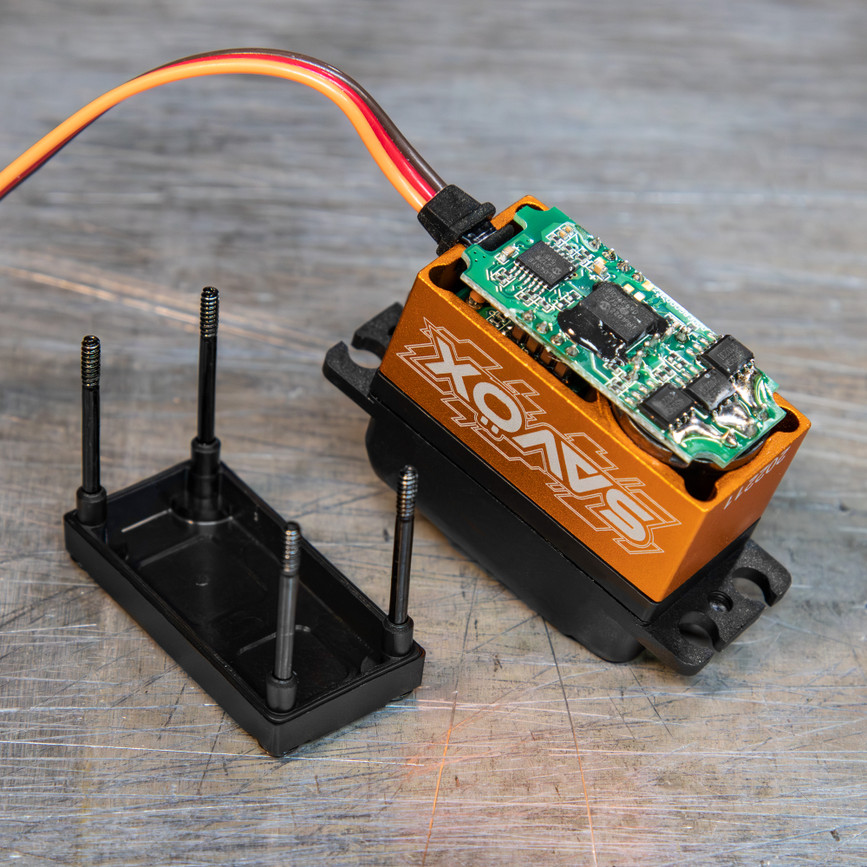

SB2270SGP High Voltage Brushless Digital Servo
SKU:
This is the Savox SB-2270SG Monster Torque Brushless Steel Gear Digital Servo which combines leading edge technology with super high 12 bit (4096) resolution.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
102°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
160°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
160°
Controllers such as the Actobotics® Servo Controller, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Output Shaft Style | H25T Spline |
|---|---|
| Voltage Range | 6.0V ~ 7.4V |
| No-Load Speed (7.4V) | 0.12 sec/60° |
| No-Load Speed (6.0V) | 0.15 sec/60° |
| Stall Torque (6.0V) | 347.2 oz-in (25.0 kg.cm) |
| Stall Torque (7.4V) | 444.4 oz-in (32.0 kg.cm) |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -10°C to 50°C |
| Current Drain - idle (6.0V) | 5mA |
| Current Drain - idle (7.4V) | 5mA |
| Current Drain - no-load (6V) | 180mA |
| Current Drain - no-load (7.4V) | 220mA |
| Current Drain - stall (6V) | 6000mA (6.0A) |
| Current Drain - stall (7.4V) | 7400mA (7.4A) |
| Motor Type | Brushless |
| Output Shaft Support | Dual Ball Bearings |
| Gear Material | Steel |
| Wire Length | 11.5" (292.1mm) |
| Weight | 2.43oz (69g) |
| Wire Gauge | 22 AWG |
| Max PWM Signal Range | 800-2200μsec |
| Servo Size | Standard |
| Max Rotation | 160° |
| Travel per µs | 0.114°/µsec |
| Direction with Increasing PWM Signal | Counterclockwise |
| Previous SKU | SB2270SG |
