8mm REX™ Bore Flat Pillow Block (16mm x 32mm Mounting Pattern) - 2 Pack

SKU:
$9.99 / 2 Pack

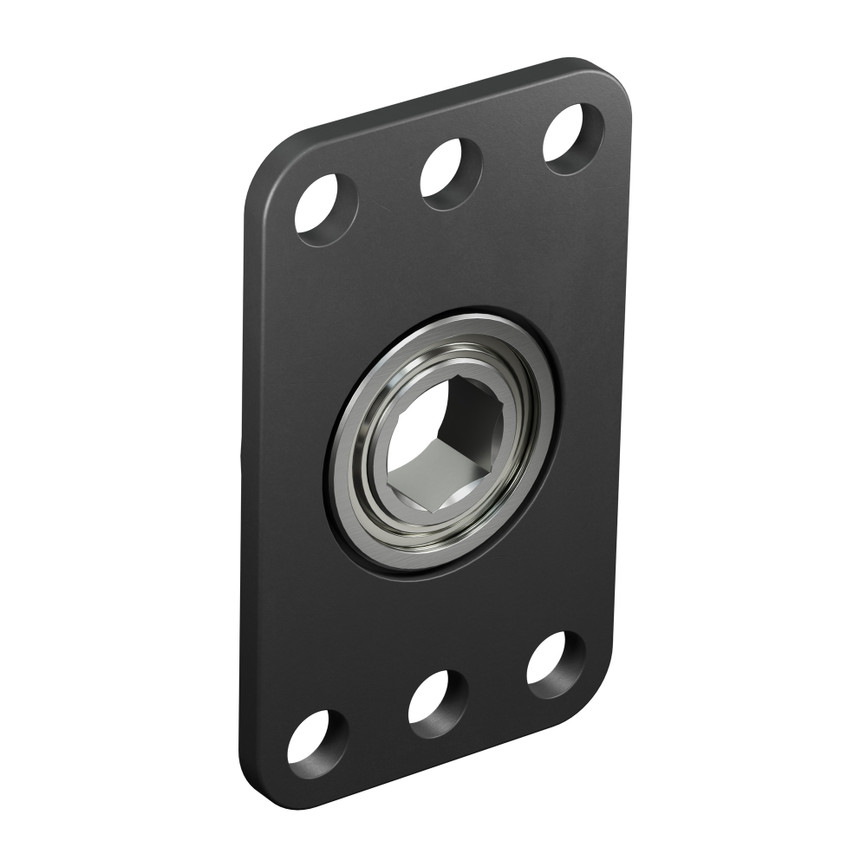

This 8mm REX™ Bore Flat Pillow Block consists of a bearing and the flat plastic casing it press-fits into. The flange of the bearing is flush with the back of the casing so that when the pillow block is bolted to a flat surface, the bearing is fully constrained.

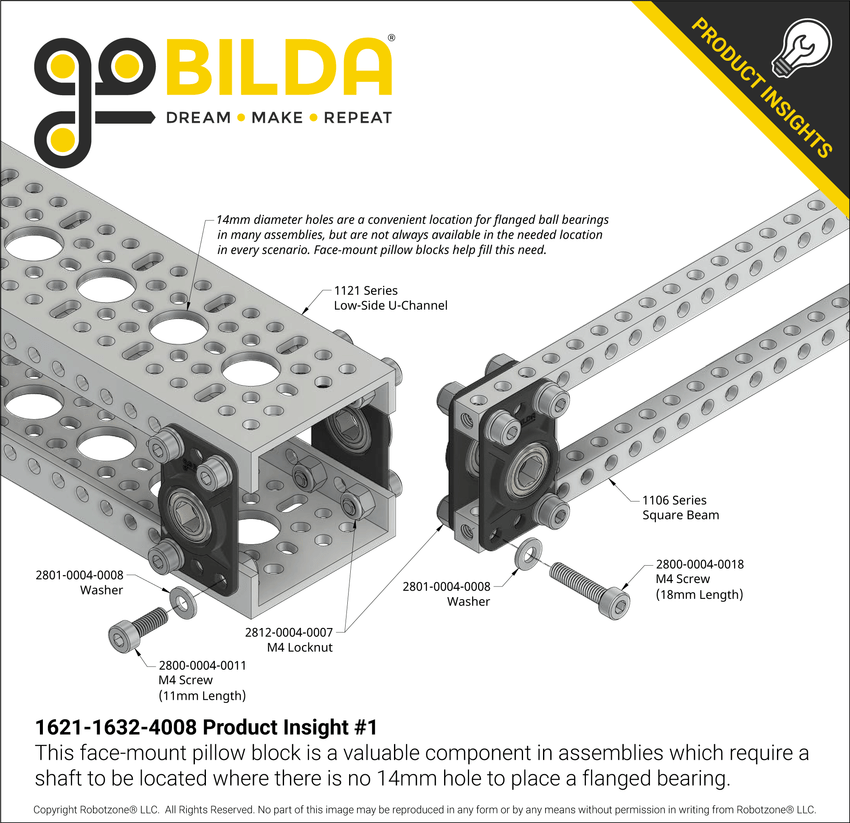

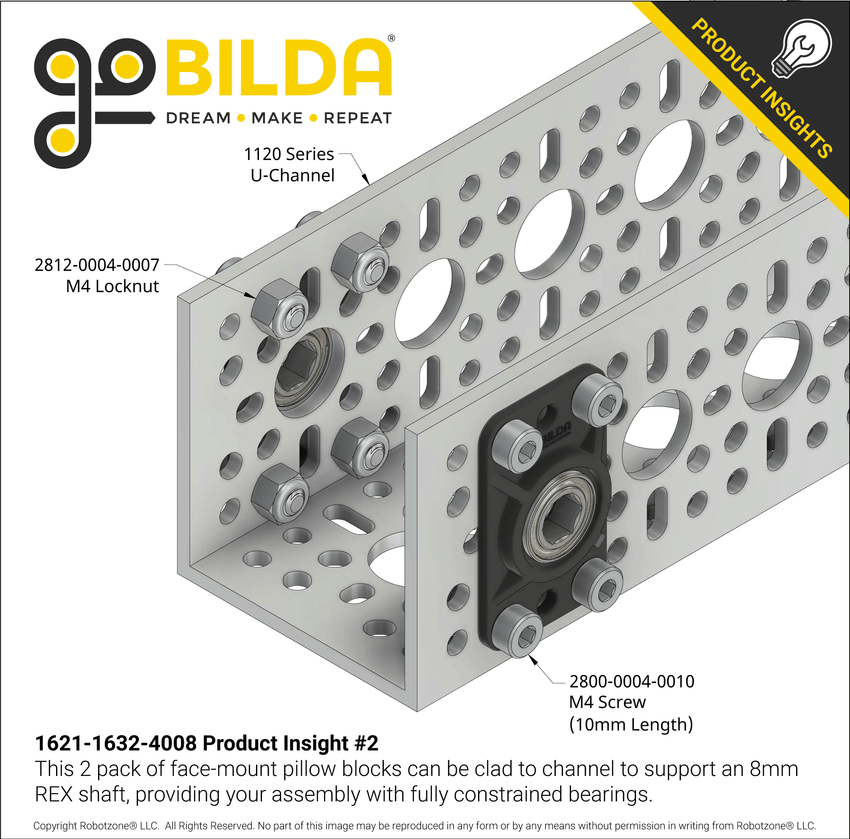

This pillow block’s compact dimensions and goBILDA® 16mm pattern holes (with two additional 8mm pattern center holes) allow for unique use-cases. You can fit it side-by-side with other Flat Pillow Blocks so that their shafts are held 24mm apart from one another!

Downloads

Specs

Weight 5.6g Each
Material Fiber-Reinforced Plastic Housing, High-Carbon Steel Bearing
