STRUCTURE - Pattern Plates

Pattern Plates

As the name suggests, Pattern Plates have the goBILDA® pattern down the length of the plate. The variety of lengths and widths of Pattern Plates enables them to perform as structural elements, rotating components, and versatile support in critical mechanisms.

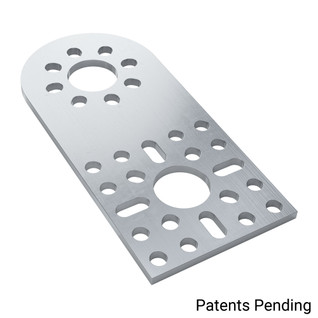

32mm Width Round-End Pattern Plates

The lack of corners on Round-End Pattern Plates provides for higher clearance in rotating assemblies, while the 32mm width—which matches many components throughout the goBILDA® system—allows for compact integration with structure!

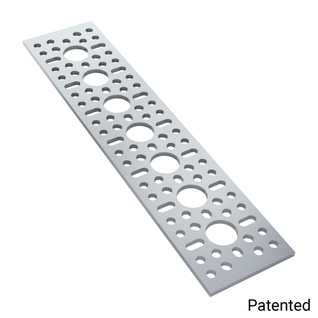

43mm Width Pattern Plates

These 43mm Width Pattern Plates feature the full goBILDA® pattern down their lengths and are perfectly sized for installation within 1120 or 1121 Series U-Channel.

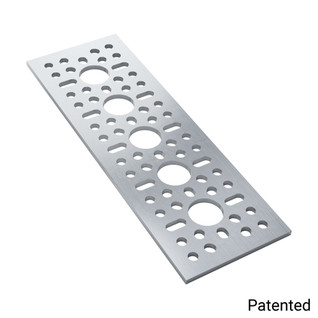

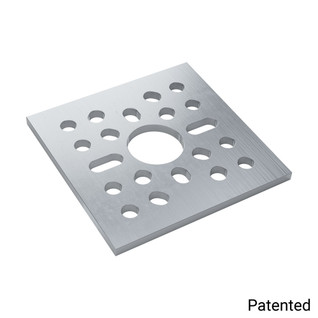

48mm Width Pattern Plates

Also rocking the full goBILDA® pattern, these 48mm Width Pattern Plates fit flush against the outside of 1120 and 1121 Series U-Channel.

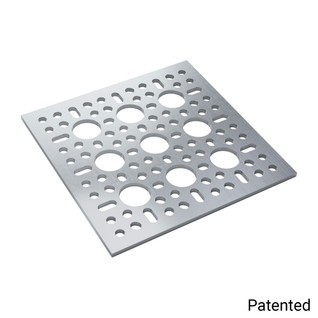

96mm Width Pattern Plates

The wide profile of 96mm Width Pattern Plates makes them perfect as sideplates, panels, baseplates, and more! Whether you’re mounting goBILDA® electronics to a custom control panel, or looking for a large surface that provides a myriad of bearing-seating locations for your more elaborate contraptions, these plates give you plenty of space in which to explore your options.

Pattern Plates

32mm Width Round-End Pattern Plates

43mm Width Pattern Plates

48mm Width Pattern Plates

96mm Width Pattern Plates

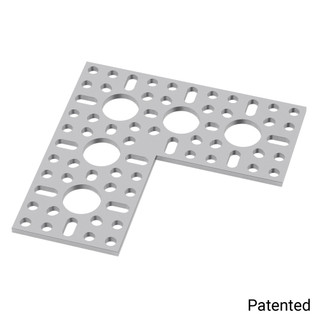

See Also
