0.250" 24 Tooth (C1) Spline, Servo to Shaft Clamping Coupler
SKU:

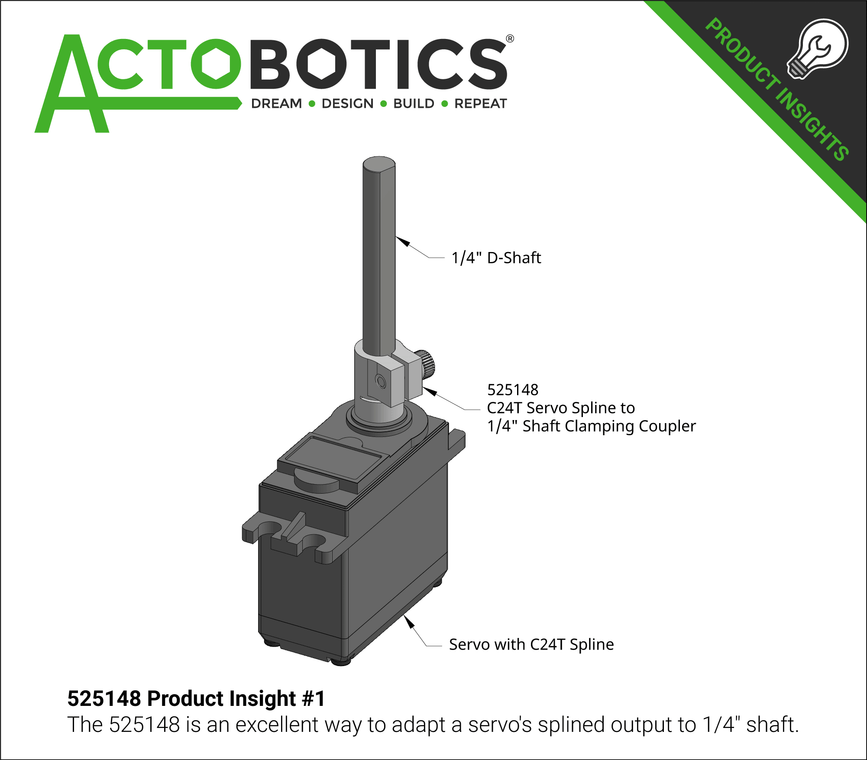

This C24T servo to shaft coupler accepts a ¼" round shaft or ¼" D-shaft. The stock servo screw is intended to be installed prior to installing the shaft in order to limit the coupler from pulling off. The clamping mechanism provides a solid, non-marring connection to hold the shaft in place.
Downloads
Specs
| Bore | 0.250" |
|---|---|
| Material | Aluminum |
| Servo Spline Compatibility | C24T Spline |
| Weight | 0.11 oz (3.0g) |
| Finish | Clear Anodized |
| IP | Patented |
