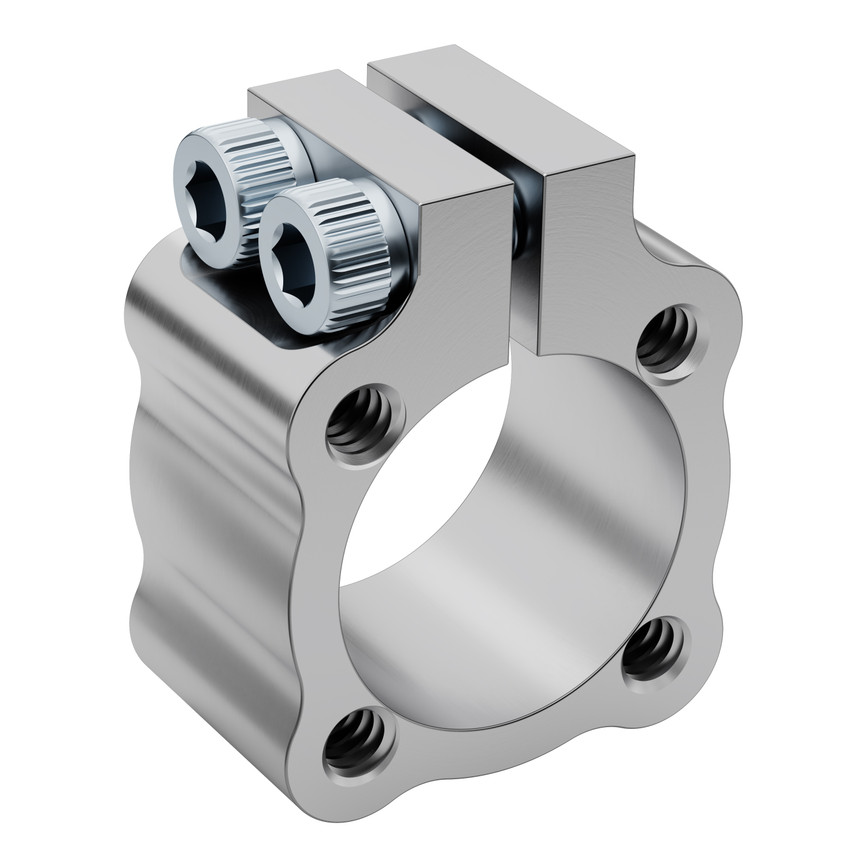

0.625" Bore Tube Clamp Hub


This ⅝" clamping hub is built to work with our ⅝" aluminum tubing.  The dual pinch bolts and large contact area provide an excellent hold on the tube without marring or deforming it.  The 6-32 holes allow you to fasten an Actobotics component which has the matching 0.77" pattern (thru-holes) onto the face of the hub.  Please note that most Actobotics components have a ½" center hole so if you mount an item, such as a gear, onto this hub, the tube that the hub is mounted on will be restricted from being able to slide through the gear.


Bore 0.625"
Material Aluminum
Weight 0.31 oz (8.9g)
