10mm Bore Bottom Tapped Clamping Mount

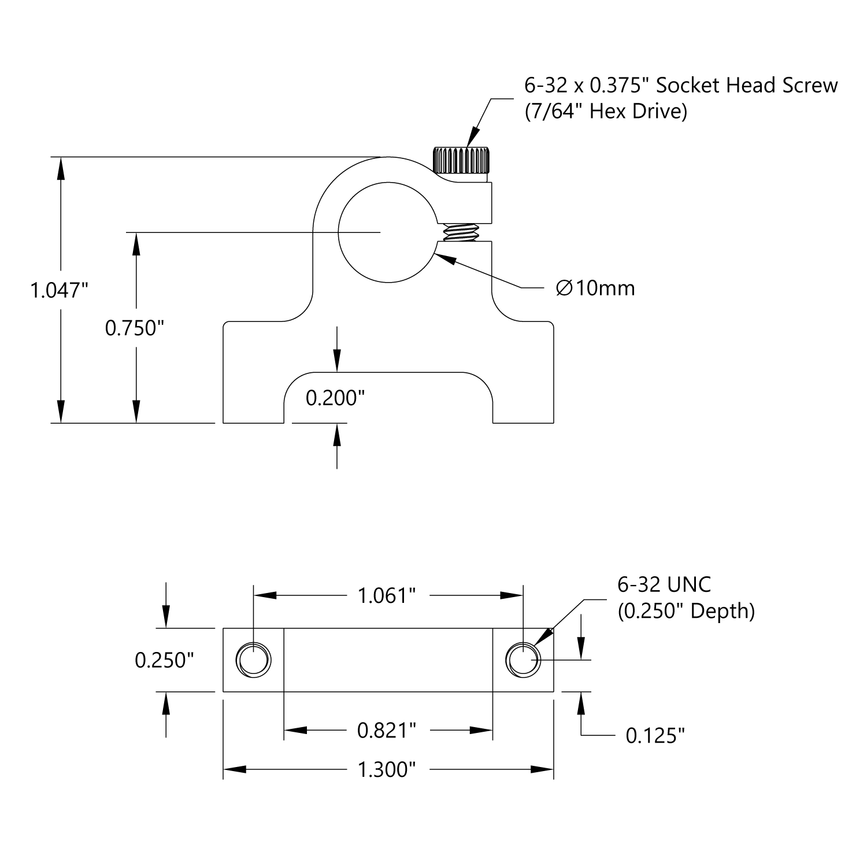

This 10mm bore clamping mount holds a 10mm shaft, tube or threaded rod 0.75” off of the surface that the mount is fastened to.  The 6-32 threaded holes match up with the side of the 1.5” pattern (measuring 1.061” apart).


Material Aluminum
Finish Clear Anodized
Weight 0.27 oz (7.6g)
