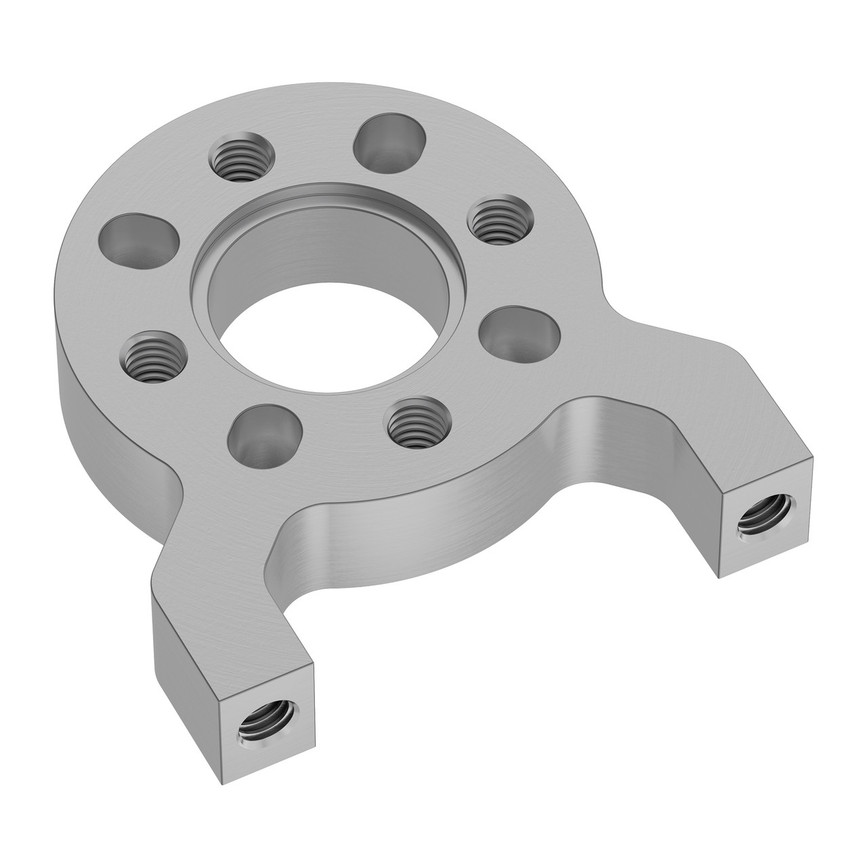

1200 Series 1-Side, 2-Post Pattern Mount (32-1)

SKU: Build System: goBILDA

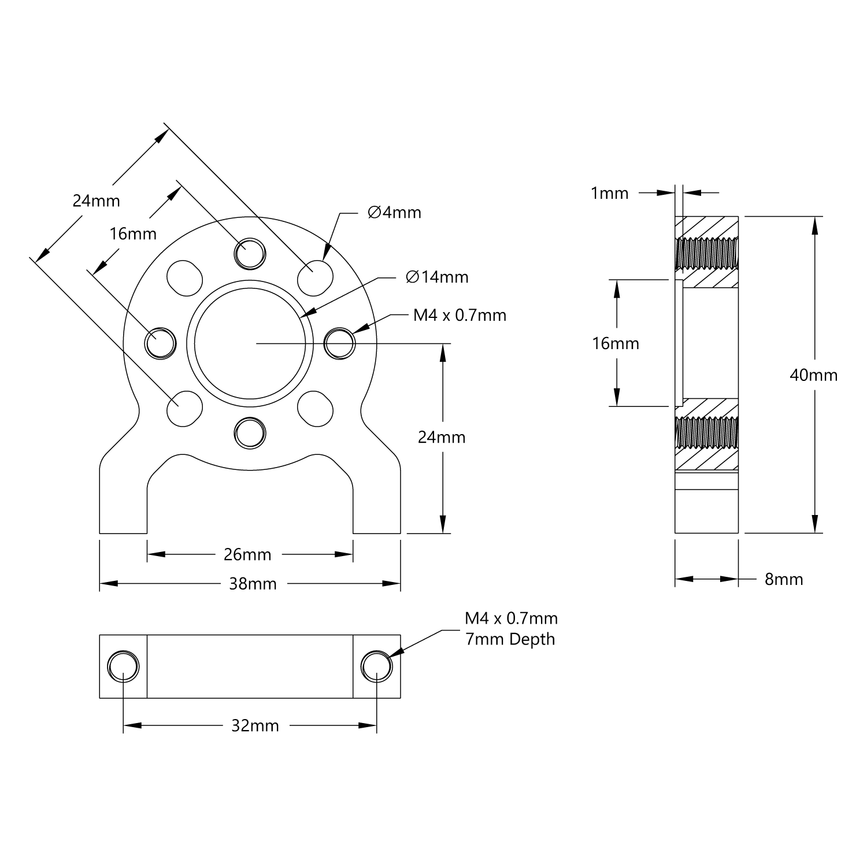

This pattern mount fastens to structure with the threaded posts, spaced 32mm apart, and positions the pattern 24mm from the mounting surface. The 24mm bottom-to-center distance is crucial as it allows other structural components to properly align as well as provides the proper distance for gears to mesh and drive a rotating assembly. The 1mm deep recess around the bore allows a 1611 Series Bearing to nest down into the bore, leaving the surface completely flush.



Weight 15g
Material Aluminum
Finish Clear Anodized
