1701 Series Face Tapped Motor Mount (32-1)

SKU: Build System: goBILDA

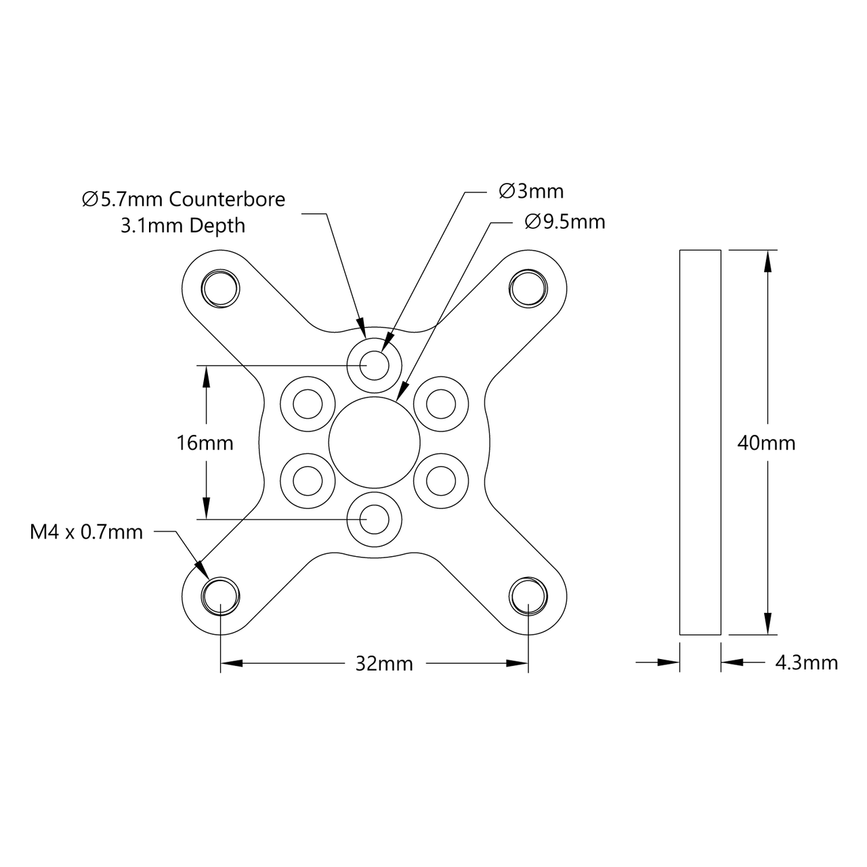

This motor mount is designed to be used with the REV Robotics Core Hex Motor.  Given this motor is used in FIRST Tech Challenge, we want to provide teams the opportunity to easily integrate the motor into their goBILDA framework.  When you use two mounts (one on each side), the side-to-side measurement will be exactly 43mm so the assembly will slide down inside 1120 Series U-Channel perfectly and fasten using M4 x 6mm length screws.



Weight 13g
Material Aluminum
Finish Clear Anodized
Motor Compatibility REV Core HEX
