18v25 Simple Motor Controller

This product has been replaced by 605065.

The Pololu Simple Motor Controllers are versatile, general-purpose motor controllers for brushed, DC motors. A wide operating range and the ability to deliver up to several hundred Watts in a small form factor make these controllers suitable for many motor control applications. With a variety of supported interfaces ­ USB for direct connection to a computer, TTL serial for use with embedded systems, RC hobby servo pulses for use as an RC-controlled electronic speed control (ESC), and analog voltages for use with a potentiometer or analog joystick - and a wide array of configurable settings, these motor controllers make it easy to add basic control of brushed DC motors to a variety of projects. Although this motor controller has many more features than competing products, a free configuration utility (for Windows 8, 7, Vista, Windows XP, and Linux) simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB.

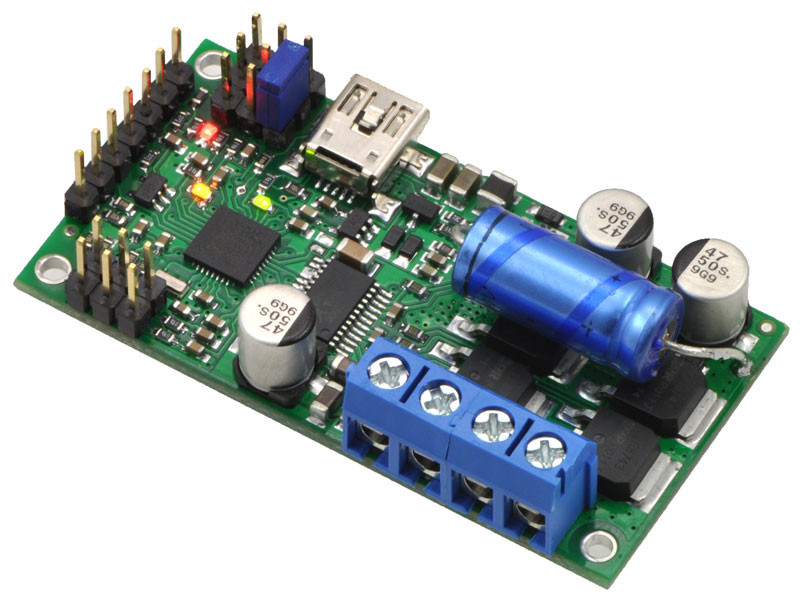

The Pololu Simple High-Power Motor Controller makes basic control of brushed DC motors easy, with the free Simple Motor Control Center software enabling quick configuration over USB. The controller supports four interface modes: USB, TTL serial, analog voltage, and hobby radio control (RC). This version operates from 5.5 to 30V and is efficient enough to deliver a continuous 25A without a heat sink. It ships with the power capacitor and connectors included but not soldered in, allowing for custom installations.

Info
Maximum PWM frequency: 21.77 kHz
Reverse Voltage Protection: No
Partial Kit?: Yes
