2000 Series Dual Mode Servo (25-2)

  • included hardware
  • Shown with 4-Cell battery tray and 3102 Series Dual Mode Servo Programmer (not included).

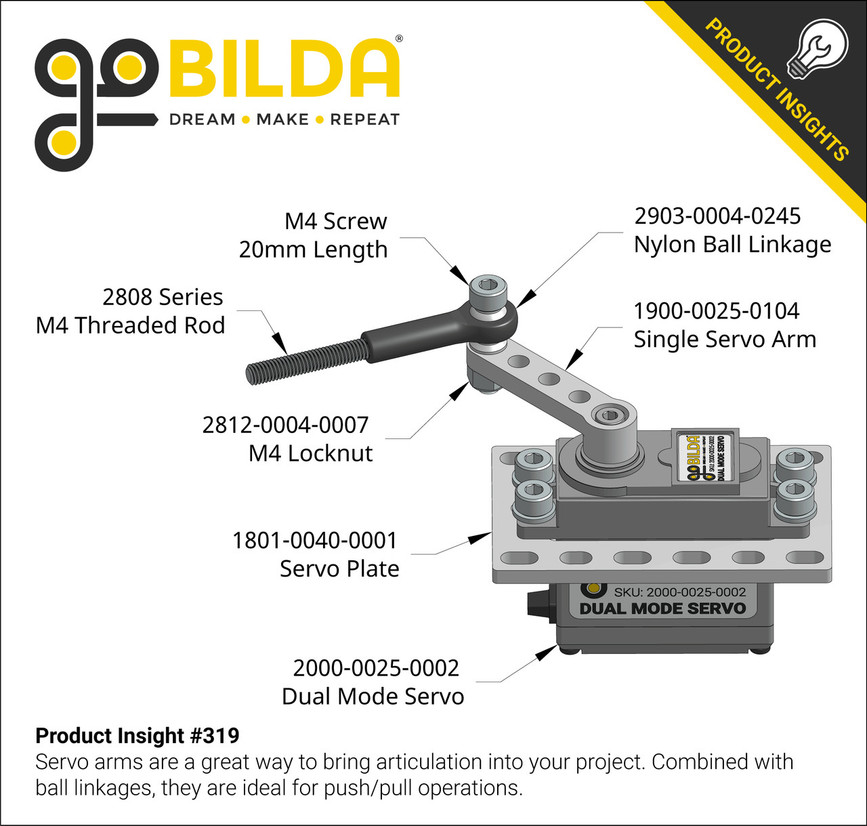

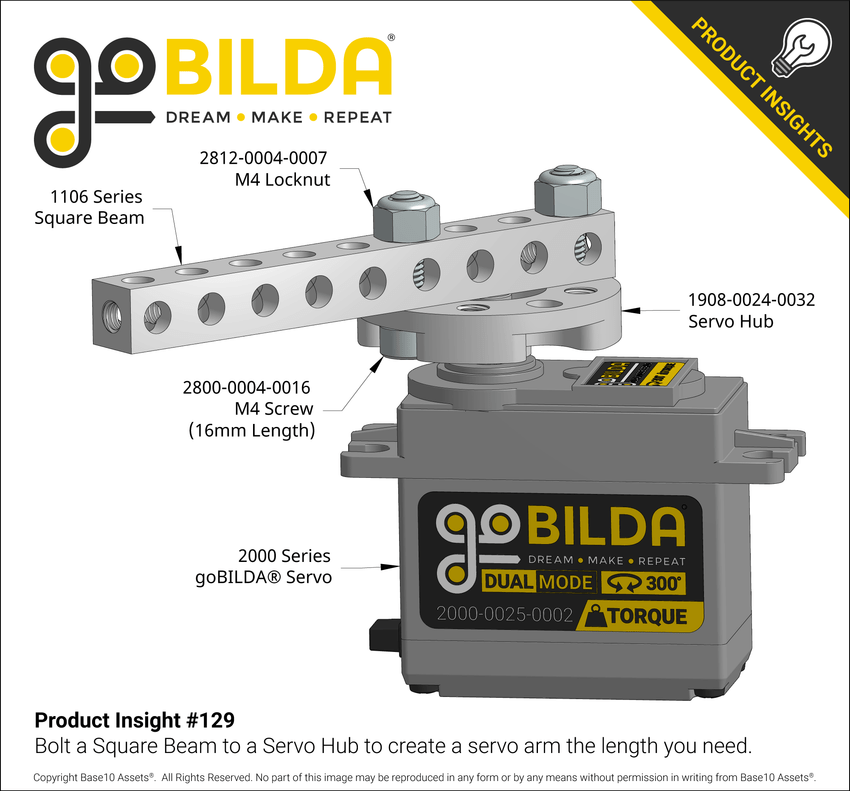

  • Product Insight #1

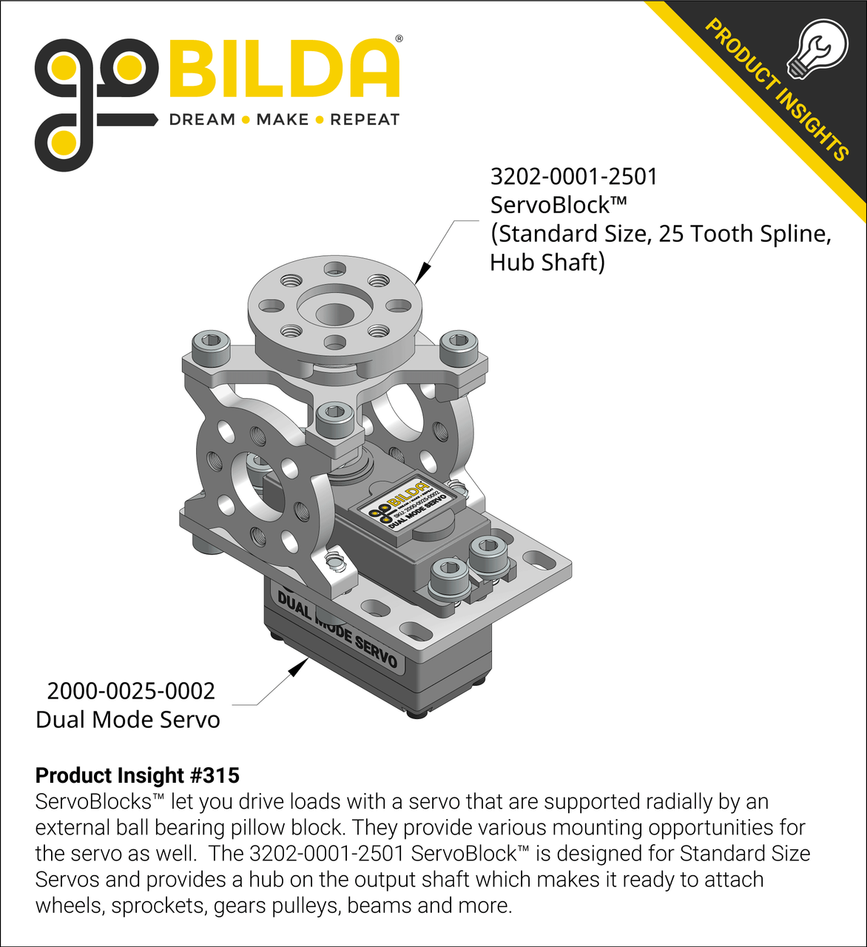

  • Product Insight #2
1 of 5

Be the first to review this product

Part
2000-0025-0002
2000-0025-0002
Status
In stock
This Product? Share It!

Details

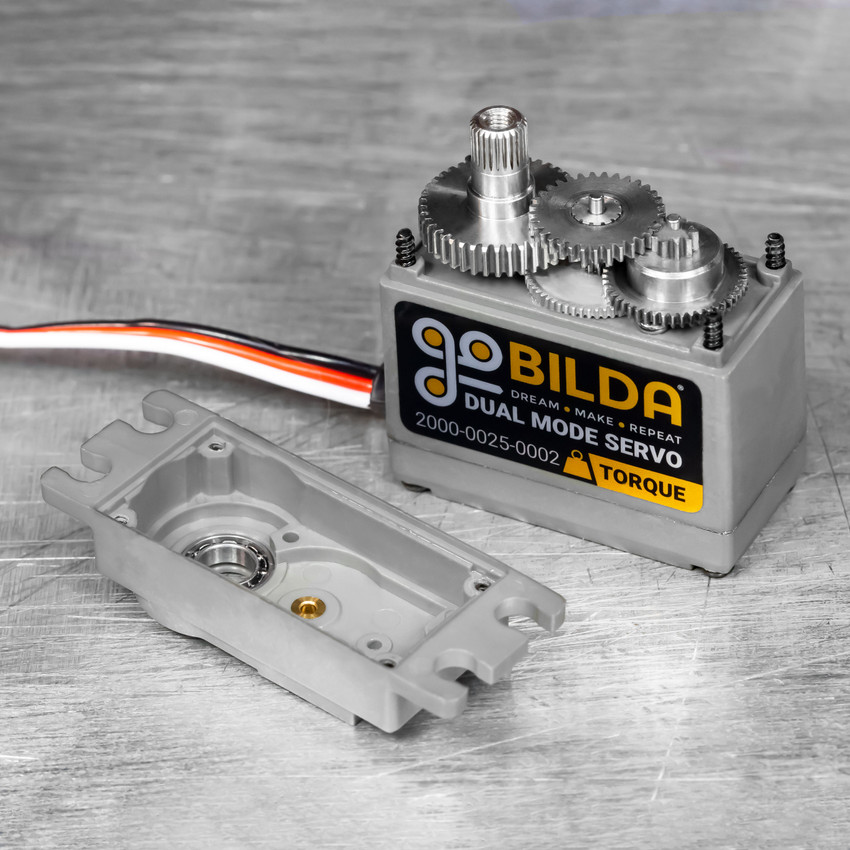

The goBILDA 2000-0025-0002 is a descendant of the popular 2000-0025-0001 servo. The 25-2 received some noteworthy updates including an ultra stout steel gear train, more torque and a new top case. Like its predecessor, the 25-2 boasts two different modes which allow it to fill a variety of roles on your robot or project. In the default mode, the servo is able to rotate 300 degrees while having positioning feedback. In this mode, the PWM signal will determine the position of the servo. Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

SPECS

Connector Type: 3-Pos TJC8 Servo Connector [MH-FC]
Gear Ratio: 300:1

Product Weight 60g
Output Shaft Style 25 tooth (H25T) spline
Voltage Range 4.8V - 7.4V
No-Load Speed (4.8V) 0.25sec/60° (40RPM)
No-Load Speed (6.0V) 0.20sec/60° (50RPM)
No-Load Speed (7.4V) 0.16sec/60° (60RPM)
Stall Torque (4.8V) 240 oz-in (17.2 kg.cm)
Stall Torque (6.0V) 300 oz-in (21.6 kg.cm)
Stall Torque (7.4V) 350 oz-in (25.2 kg.cm)
Max PWM Signal Range (Standard) 500 - 2500μsec
Max PWM Signal Range (Continuous) 1000-2000μsec
Travel per µs (out of box) 0.15°/μsec
Max Travel (out of box) 300°
Pulse Amplitude 3-5V
Current Drain - no-load (4.8V) 150mA
Current Drain - no-load (6V) 160mA
Current Drain - no-load (7.4V) 200mA
Current Drain - stall (4.8V) 2,000mA
Current Drain - stall (6V) 2,500mA
Current Drain - stall (7.4V) 3,000 mA
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 4 μsec
Motor Type Brushed DC
Internal Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearing
Gear Material Steel
Wire Length 11.81" (300 mm)
Wire Gauge 22 AWG
