20T, 0.250" (1/4) Bore 32P Shaft Mount Pinion Gear


This 20 tooth pinion gear has a ¼” bore in order to fit on a ¼” round or D-profile shaft. When installed on a ¼” D-shaft, the 10-32 cupped point set-screw will tighten down onto the flat side of the shaft for an excellent hold.

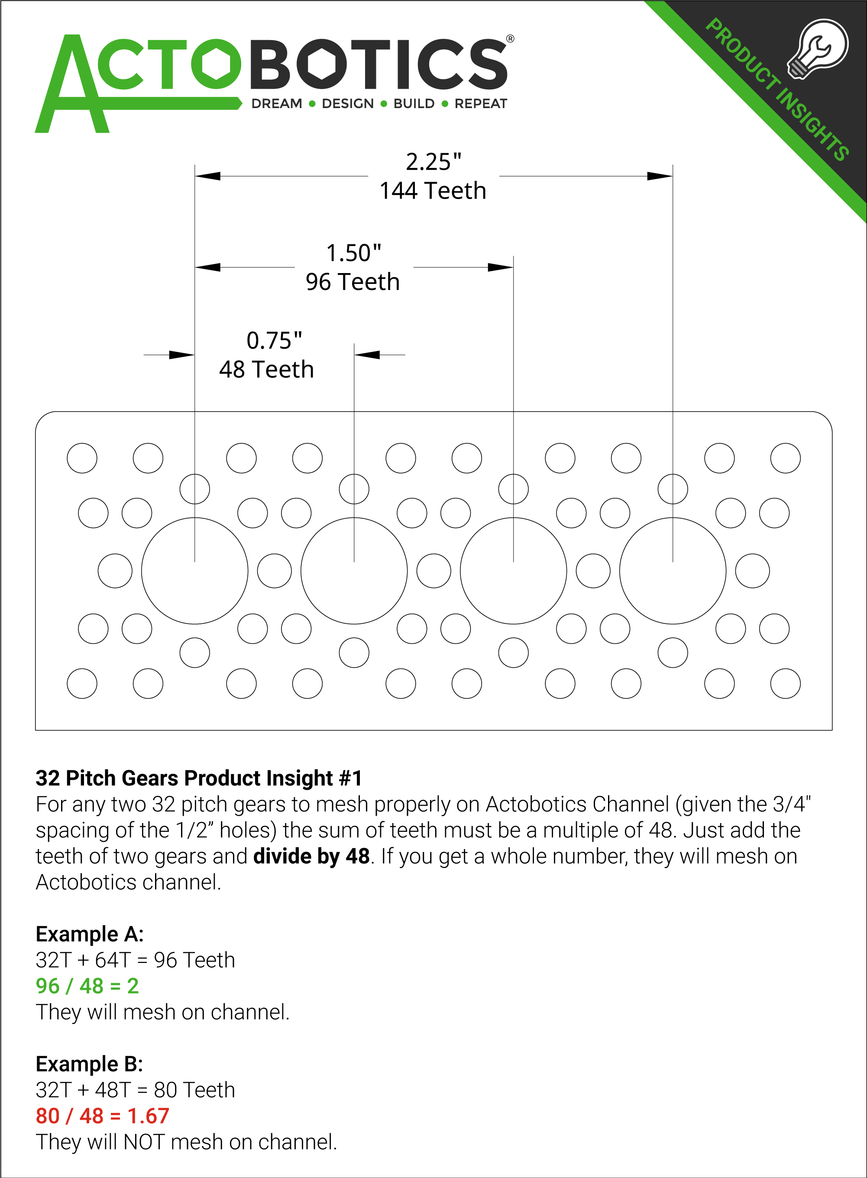

When building with Actobotics Channel, gear ratios are commonly created between holes spaced 0.75” or 1.5” apart. This gear meshes perfectly with another 32 pitch gear with a tooth count of 76 when located 1.5” apart.



# of teeth 20T
Weight 0.48 oz (40g)
Material Hardened Brass
Pressure Angle 20°
