3/8" Bore Side Tapped Pillow Block


Currently Sold Out

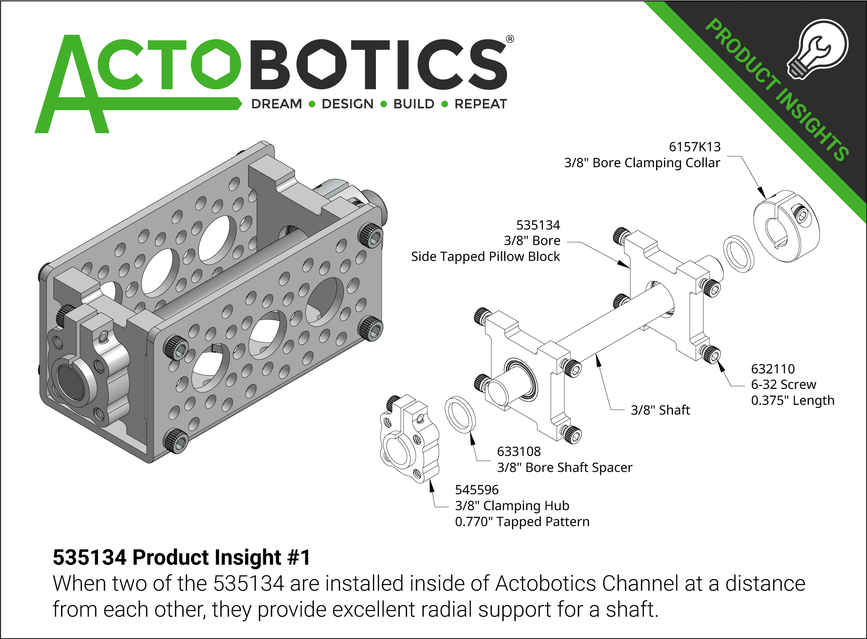

This ⅜" pillow block is able to slide down inside of channel and mount solidly from each side with 6-32 screws. Doing this not only provides a solid mount for the bearing, but it also provides additional support to the channel by tying the sides together.


Material Aluminum
Weight 0.49 oz (14g)
Static Load 92 lbs
Max RPM 30,000
Bearing ID 0.375"
Dynamic Load 187 lbs
