3 Wheel Robot Platform

SKU:
$79.99

Currently Sold Out

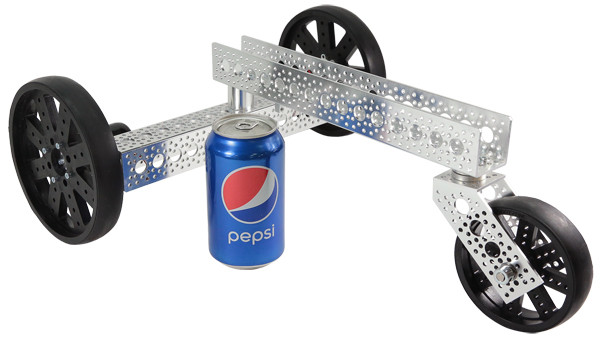

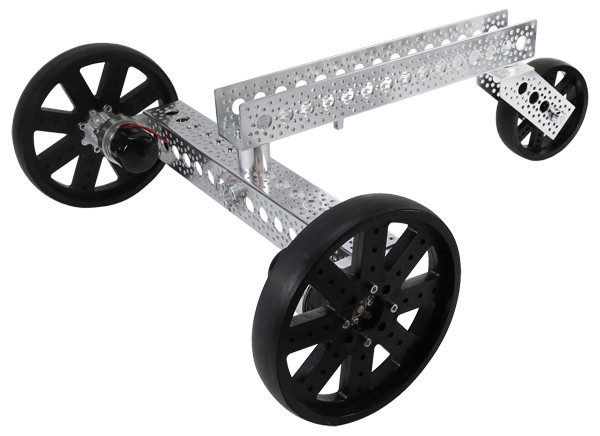

Start your Actobotics project with this 3 wheel robot platform! Includes all the mechanical parts needed to build an omni-directional robot. Large 6” diameter drive wheels with rubber lips offer fantastic traction. The ball bearing swivel along with the ball bearing supported 4” wheel at the rear enables smooth turning transitions. As you can see below, the chassis can easily be reconfigured and accepts all Actobotics components. The included motor mounts are compatible with our 3-12V Standard Spur Gear Motors (motors sold separately).  Other types of drive motors can be used as well, please see our line of additional Actobotic motor mounts.  Assembly tools needed: 3/32” allen driver and 7/64” allen driver.  Watch the step by step assembly video.

Included Parts:

  • (2) 6” Heavy Duty Wheels
  • (1) 4” Heavy Duty Wheel
  • (2) 12” Aluminum Channel
  • (2) Hub Adaptor D
  • (2) 6mm Bore Set Screw Hubs
  • (1) 1/4” x 2.25 D-shaft
  • (2) 1/4” Collar
  • (2) 1/4” ID x 1/2” OD Flanged Ball Bearings
  • (1) Swivel Hub
  • (1) 45 Degree Channel Bracket
  • (2) Clamping Aluminum Motor Mounts
  • (1) Aluminum Hub Spacers (1” thick)
  • (1) 1/4” Shafting & Tubing Spacers
  • (1) 1/4” x 6-32 Socket Head Screws (25pk)
  • (1) 1/2” x 6-32 Socket Head Screws (25pk)
  • (1) 3/8” x 6-32 Socket Head Screws (25pk)
  • (1) 1/4” Bore Set Screw Hub

Required Tools (not included):

  • 3/32” allen driver
  • 7/64” allen driver

Specs

Weight 2.55 lbs
Tire Size 6"
Motor Compatibility 3-12V Standard Spur Gearmotors (or equivalent size)
