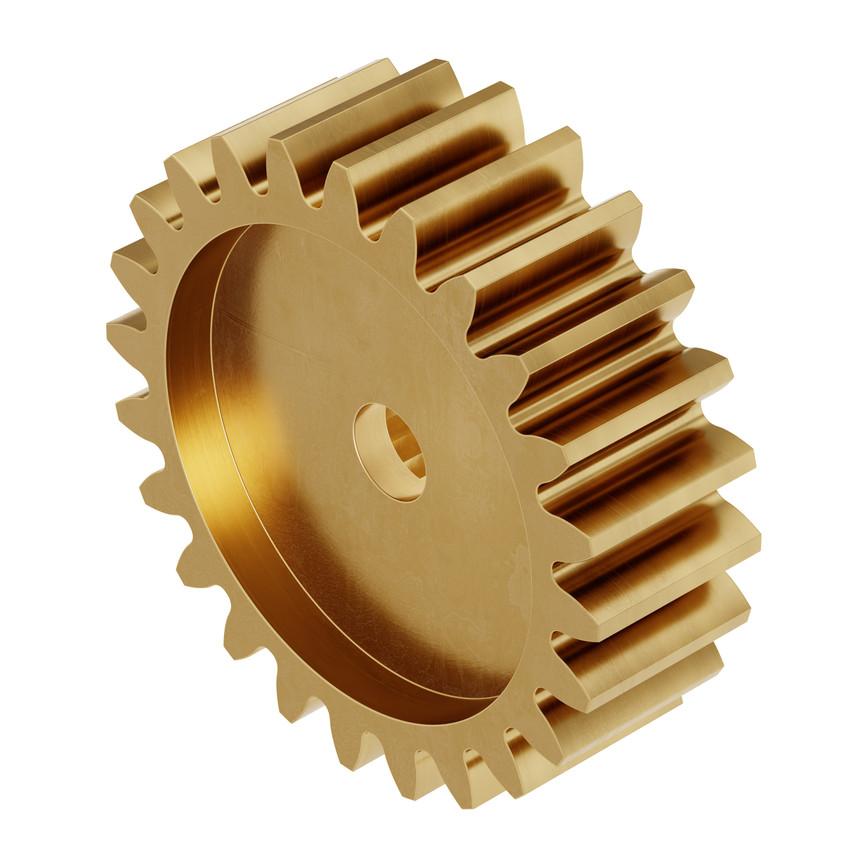

Brass, 32P, 24 Tooth, C24T Spline Servo Gear
SKU:
DISCONTINUED This product has been discontinued.
This 24 tooth servo gear has a 24 tooth servo spline which is common within Hitec standard size servos. The splined hole allows this servo gear to fit snugly onto the splined output shaft of your servo. The stock servo screw will pull the gear in place so that it bottoms out on the top of the spline, ensuring the gear will run true.

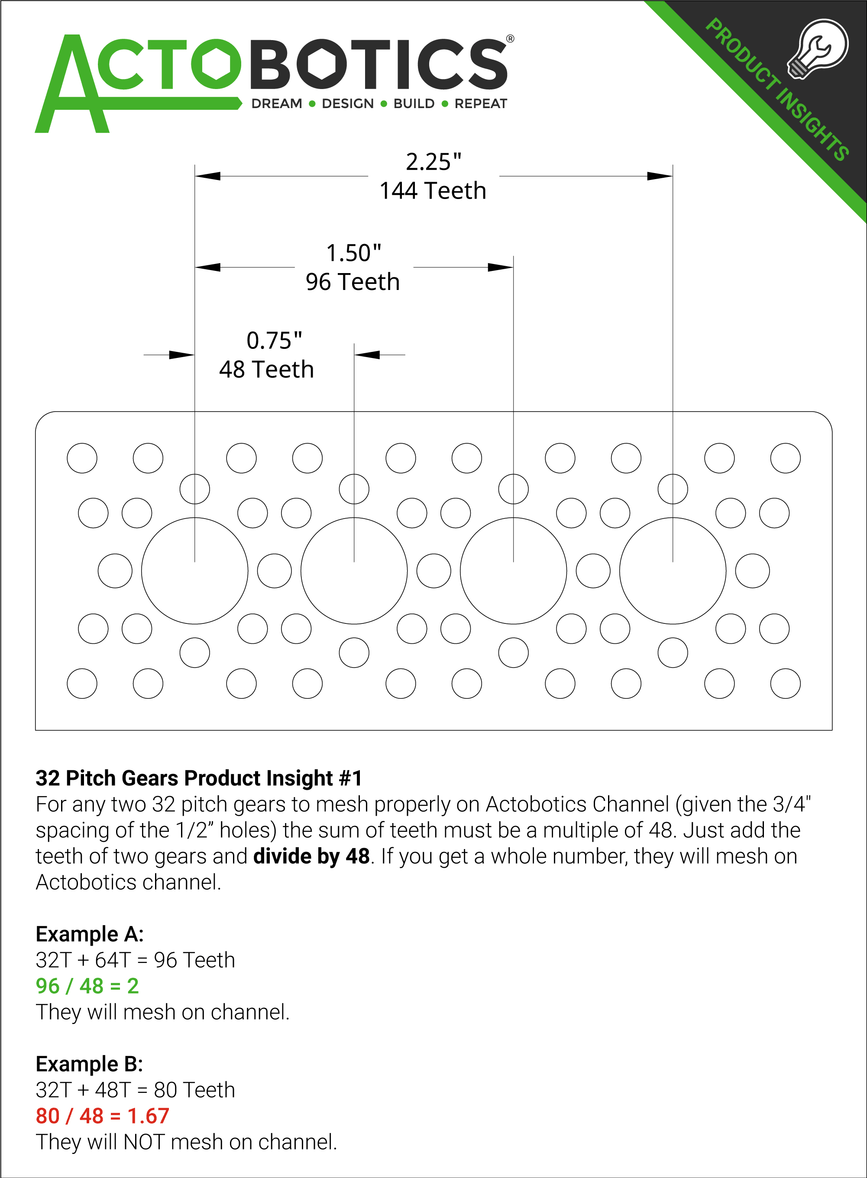

Given the repeating hole pattern of Actobotics Channel, this gear is most commonly mated to an 72 tooth hub gear spaced 1.5” apart to create a massive 3:1 reduction between the servo gear and the driven gear.
Width = 1/4” (.250”)
Pressure Angle = 20°
Downloads
Specs
| # of teeth | 24T |
|---|---|
| Pitch Diameter | 0.750" |
| OD | 0.813" |
| Material | Brass |
| Bore | C24T Spline |
| Weight | 0.33 oz (9.4g) |
