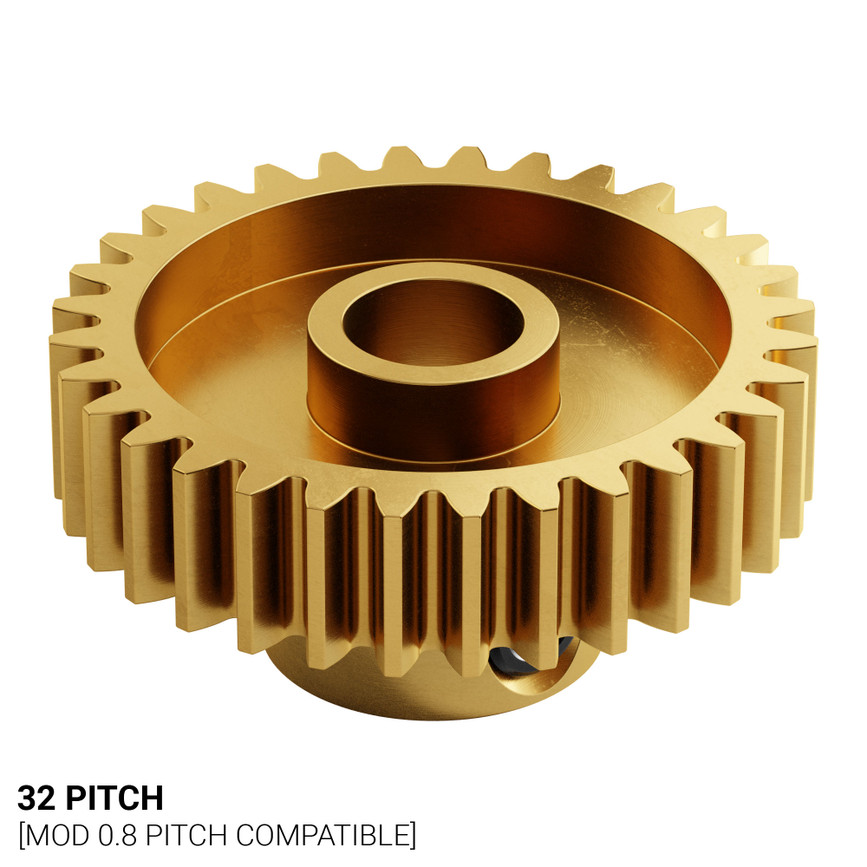

This 32 tooth pinion gear has a ¼” bore in order to fit on a ¼” round or D-profile shaft. When installed on a ¼” D-shaft, the 10-32 cupped point set-screw will tighten down onto the flat of the shaft for an excellent hold.

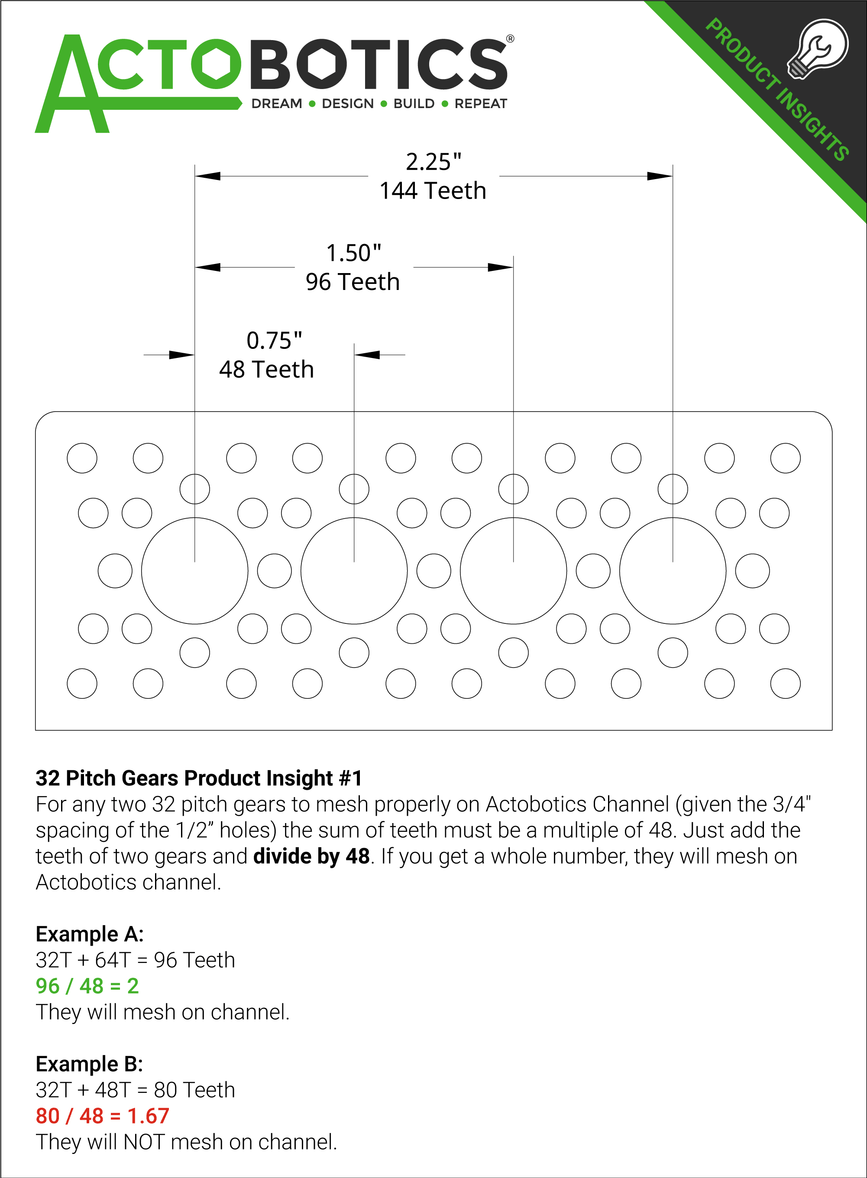

When building with Actobotics Channel, gear ratios are commonly created between holes spaced 0.75” or 1.5” apart. This gear meshes perfectly with another 32 pitch gear with a tooth count of 16 when located 0.75” apart or a tooth count of 64 when located 1.5” apart.
|# of teeth||32T|
|Weight||0.79 oz (23g)|
