3406 Series 3mm HTD Pitch Timing Belt (15mm Width, 5 Meter Cut-Length)

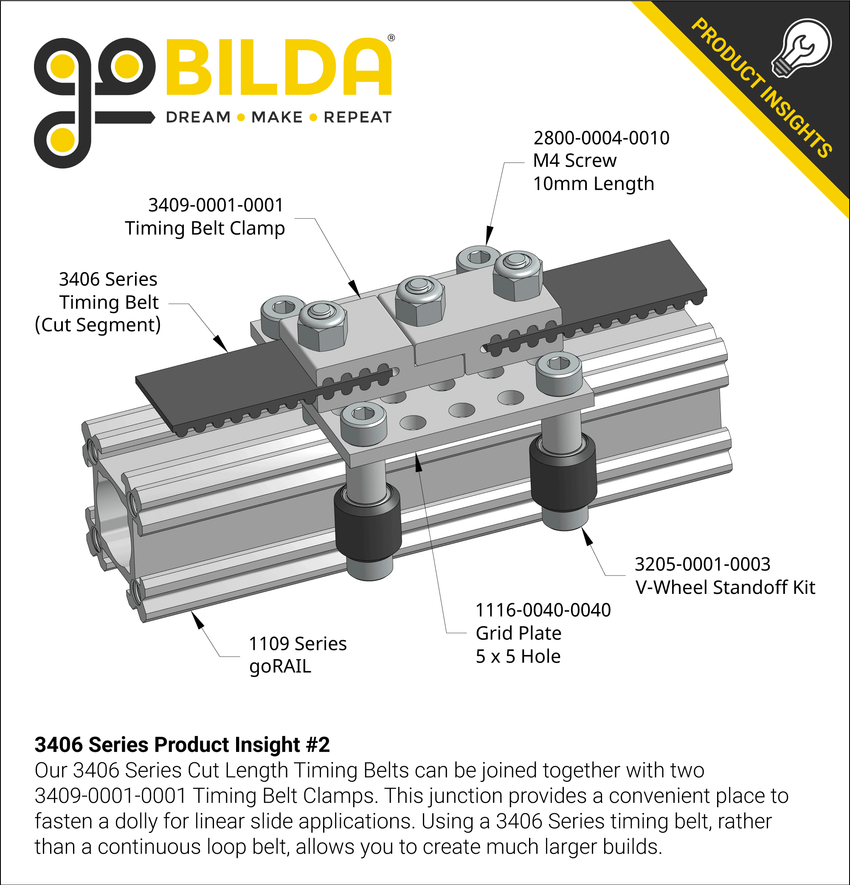

This five meter section of timing belt is excellent for building XY tables and linear motion systems.  In most belt-driven linear motion systems, the belt fastens to the carriage that moves up and down the track, negating the need for the belt to be a continuous loop.  The belt is easily cut to length with scissors and then fastened to your assembly using a timing belt clamp.


Weight 215g
Material Neoprene with Fiberglass Cords
Finish 3mm (HTD)
Tooth Count 1666
Pitch 3mm (HTD)
Pitch Length 5000mm
