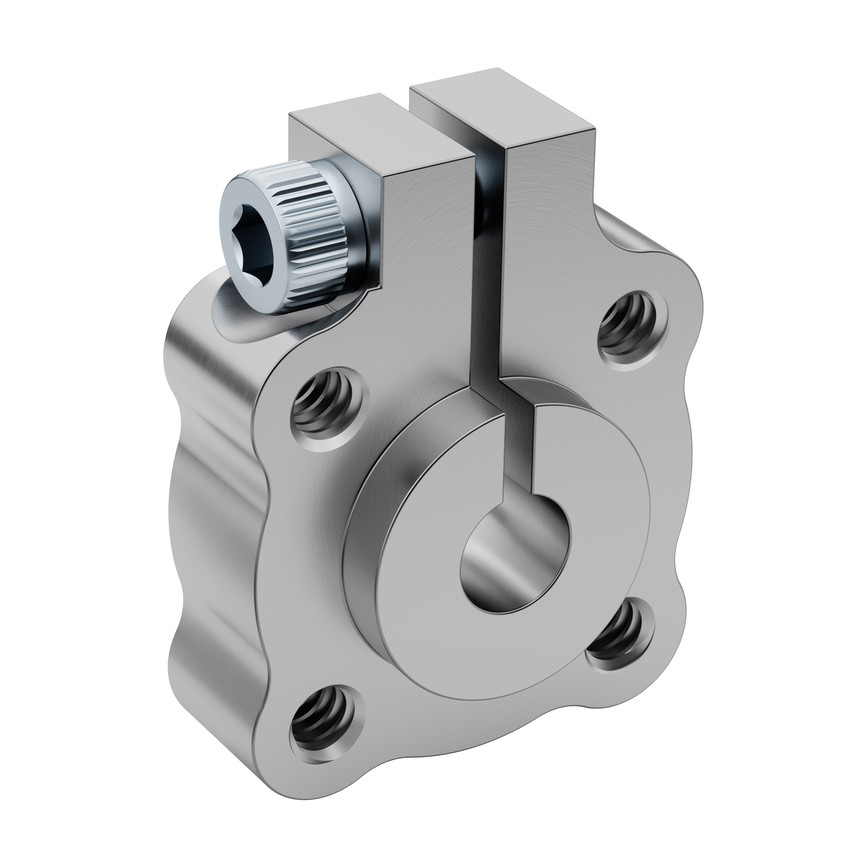

5mm (0.770") Clamping Hub

SKU:
$6.99

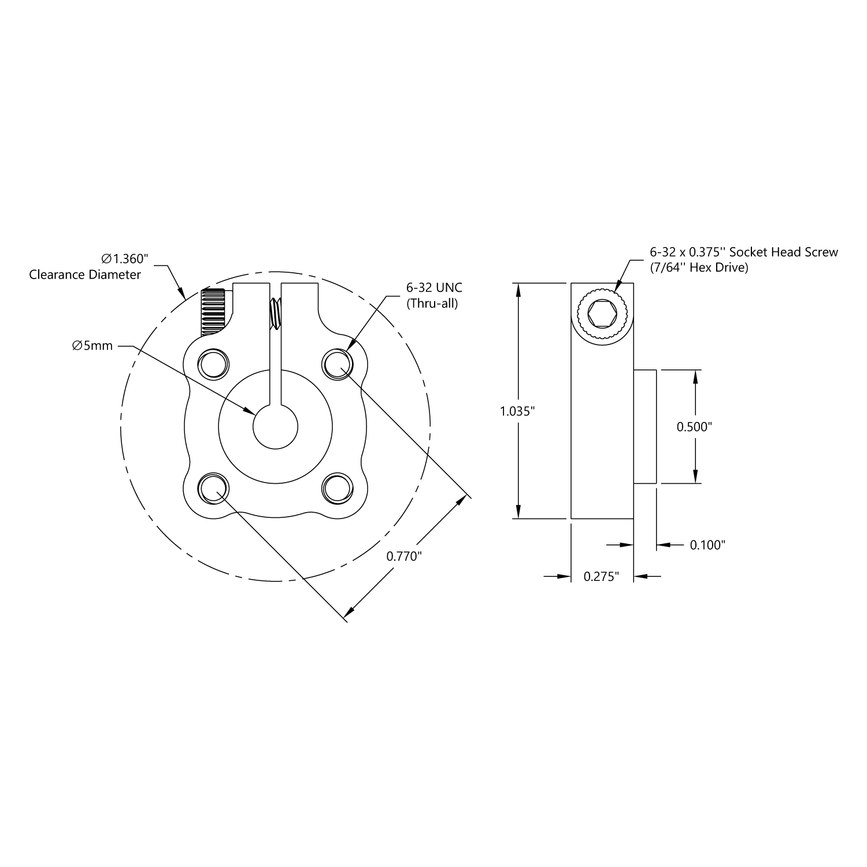

This 5mm clamping hub is precision machined in order to slip over a 5mm shaft and clamp down for a no-slip connection when the 6-32 pinch bolt is tightened.  The threaded 6-32 holes on the face are on the 0.77" pattern which is common throughout the Actobotics build-system.

Downloads

Specs

Bore 5mm
Material Aluminum
Finish Clear Anodized
Weight 0.31 oz (8.8g)
