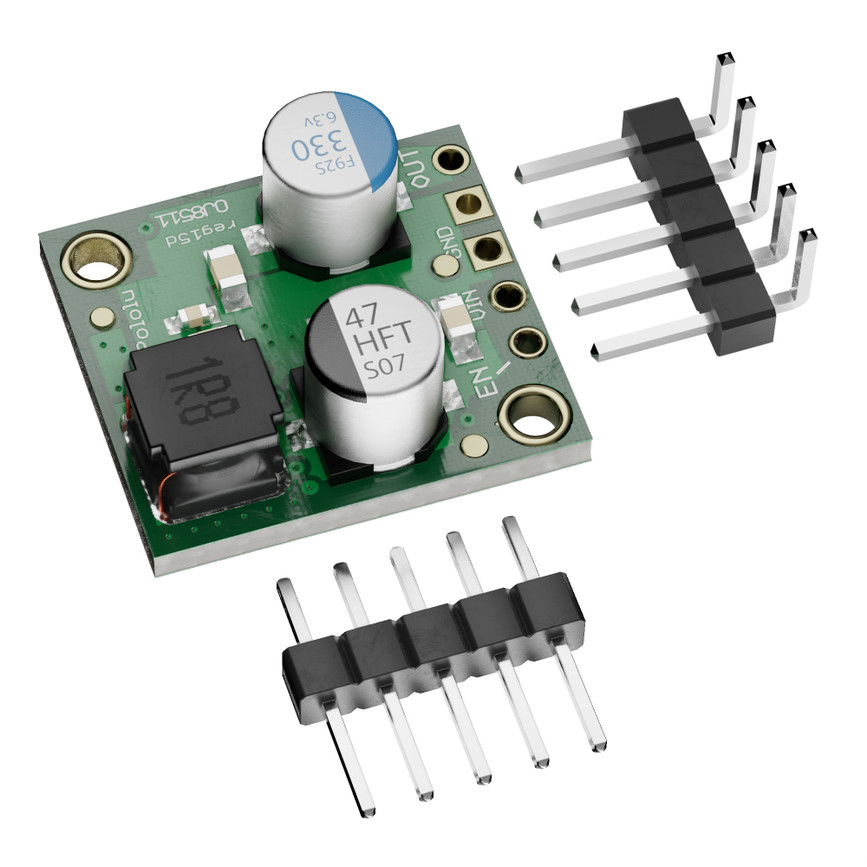

5V Step Down Voltage Regulator

SKU:
$14.99

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 38V and efficiently reduces it to 5V. The board measures only 0.7” x 0.8”, but it allows a typical continuous output current of up to 5A. Typical efficiencies of 85% to 95% make this regulator well suited for high-power applications like powering motors or servos. High efficiencies are maintained at light loads by dynamically changing the switching frequency, and an optional shutdown pin enables a low-power state with a current draw of a few hundred microamps.

Features:

  • Fixed 5V output with 4% accuracy
  • Integrated reverse-voltage protection (up to 30V), over-current protection, over-temperature shutoff, and under-voltage lockout
  • Typical efficiency of 85% to 95%, depending on input voltage, output voltage, and load
  • Two 0.086” mounting holes for #2 or M2 screws

Reverse Voltage Protection?: Yes
Max. Quiescent Current: 0.8mA

Specs

Input Voltage Range 6 – 38V
Output Voltage 5V
Weight 0.14 oz (4.0g)
Max Current (Continuous) 5A
