8mm Bore Bottom Tapped Clamping Mount
SKU:
Build System: Actobotics

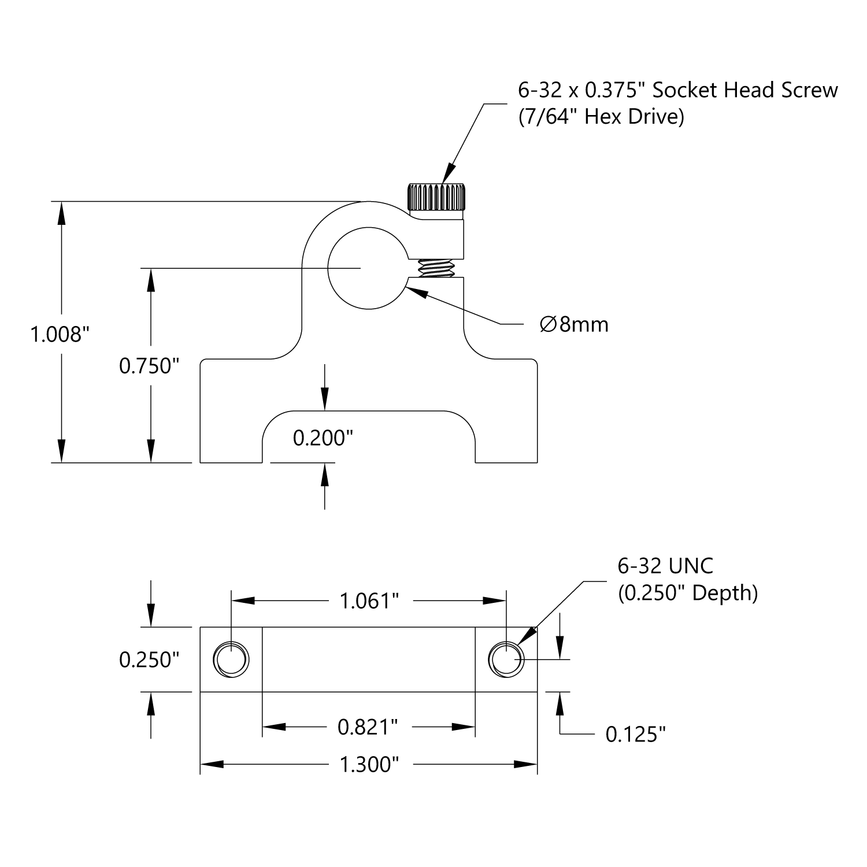

This 8mm bore clamping mount holds an 8mm shaft, tube or threaded rod 0.75” off of the surface that the mount is fastened to. The 6-32 threaded holes match up with the side of the 1.5” pattern (measuring 1.061” apart).
Downloads
Specs
| Material | Aluminum |
|---|---|
| Finish | Clear Anodized |
| Weight | 0.26 oz (7.4g) |
