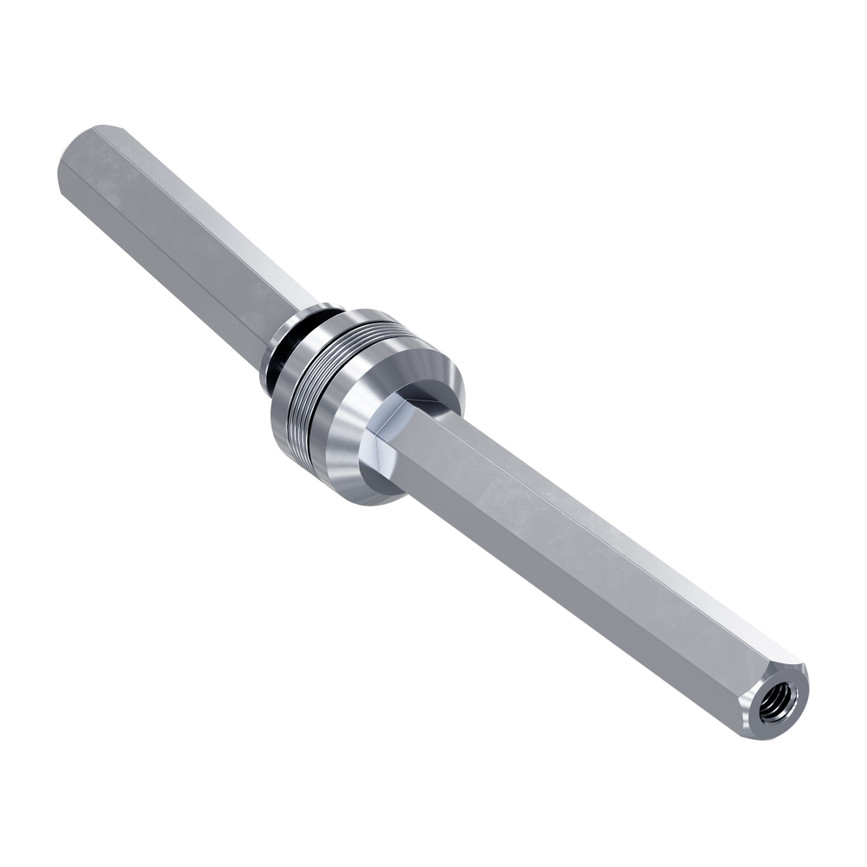

8mm REX™ CV Joint (Male to Male)

SKU:
$15.99

This Male-to-Male 8mm REX™ CV Joint offers positive drive at variable angles. A constant-velocity (CV) joint allows you to create a drive that is angular to the input or output. This kind of drive is critical in applications that require power transfer to occur through a moving section, such as in suspensions and arms.

This male-to-male joint provides two stainless steel 8mm REX® shaft lengths. The two shafts are connected at a junction specially designed to transfer shaft rotation along a nonlinear path.

The 8mm REX™ profile (a combination of Round and hEX) facilitates fierce positive drive and has extensive compatibility with 8mm REX™ bore components throughout the goBILDA® system. It also means that this joint is able to rotate smoothly in 8mm round bore bearings! Both of this joint’s shafts have an M4 hole that provides for additional attachment options.

Downloads

Specs

Weight 37g
Material Steel
Finish Zinc-Plated
