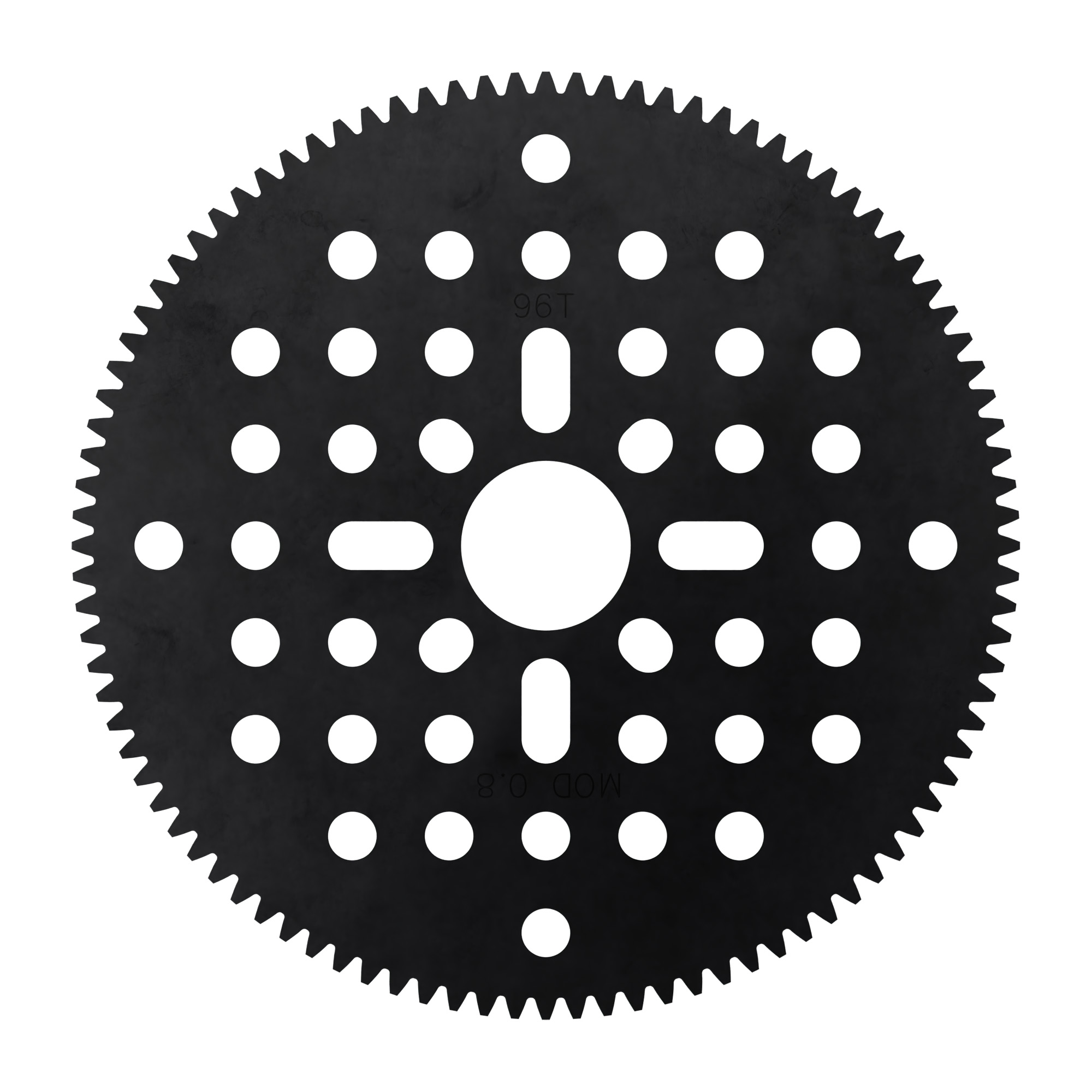

96 Tooth Hub-Mount Gear (MOD 0.8, 4mm Thick Acetal)

SKU: Build System: goBILDA

The 96 tooth, MOD 0.8 gear can mate with any MOD 0.8 gear, but when building on pattern, the most common partner for this gear is a 24 tooth pinion gear or servo gear. Using the pinion gear, you can create a 4:1 underdrive or overdrive setup (depending on your application). When used with the 24 tooth servo gear, this combo creates a 4:1 underdrive that facilitates slower speed and four times the torque.



Weight 21g
Material Acetal
Pressure Angle 20 Degree
Gear Pitch MOD 0.8
