Dual 5A PWM Switch
SKU:
Build System: goBILDA

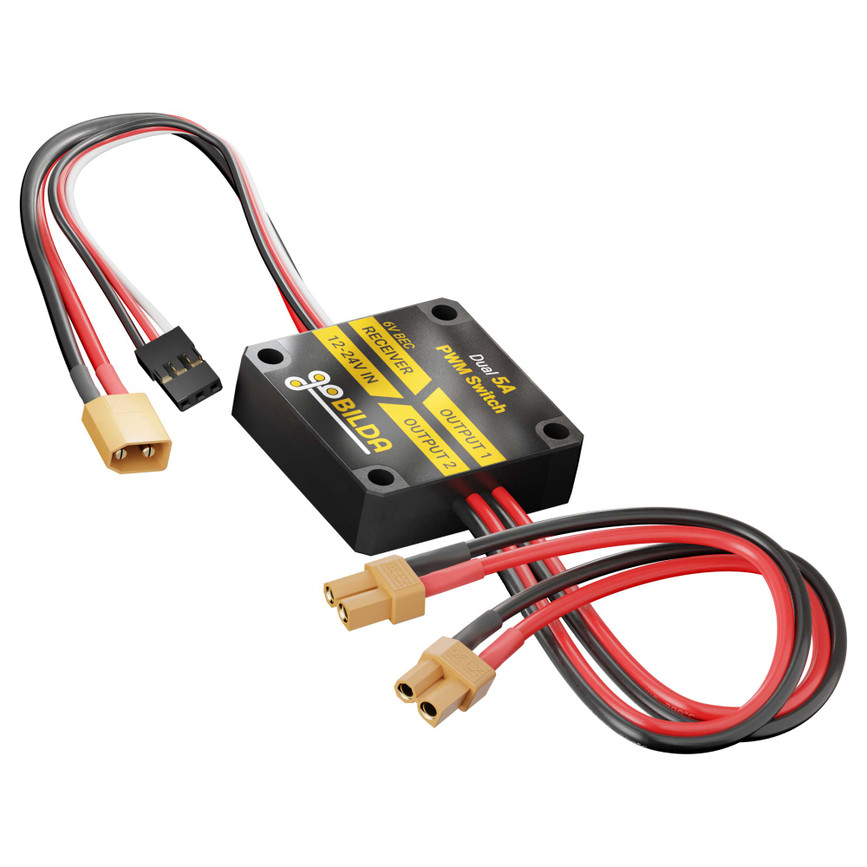

The PWM Controlled Switch is a plug-n-play solution for turning DC circuits on and off from afar! Use a wireless transmitter and receiver, or your servo controller of choice, to direct the circuits with a PWM signal. The signal sent to the switch via the TJC8 servo connector determines the channels’ on/off state among three options: both off at <1400 microseconds, one off/one on at 1400-1600 microseconds, or both on at >1600 microseconds. Each output is able to handle an impressive 5A continuous and 10A peak! Additionally, the switch’s 40mm square pattern makes it quite mountable to almost any goBILDA® structure.
If you are using an RC receiver, simply plug the 3-wire connector into the desired channel. The built-in 6V BEC (which can supply 1A continually) will power your receiver via the red wire. It can also be plugged into a servo controller or an Arduino (via jumper wires) or anything that can produce a PWM signal.
Signal Thresholds:
| Signal | Output 1 | Output 2 |
|---|---|---|
|
< 1400 μsec |
OFF |
OFF |
|
1400 - 1600 μsec |
OFF |
ON |
|
> 1600 μsec |
ON |
ON |
Specs
| Weight | 47g |
|---|---|
| Input Voltage Range (Recommended) | 12 - 24VDC |
| Input Voltage Range (Limit) | 9 - 30VDC |
| Max Current (Continuous) | 5A per Output |
