Flat 0.770" Pattern Bracket A

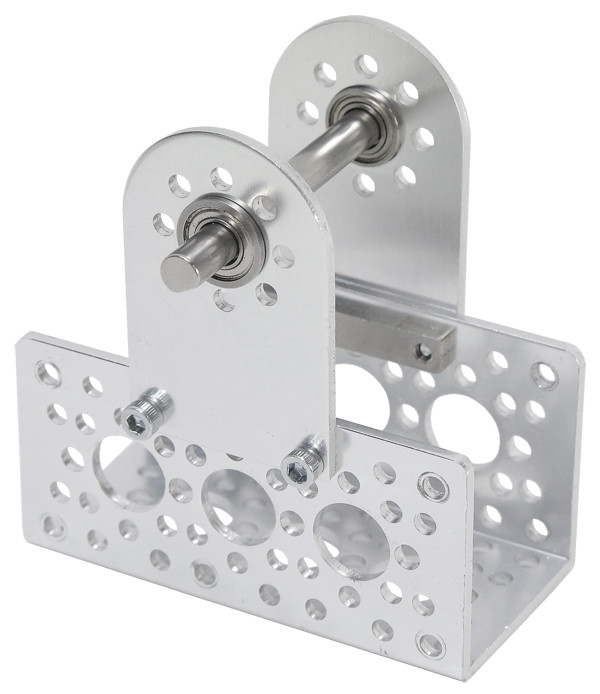

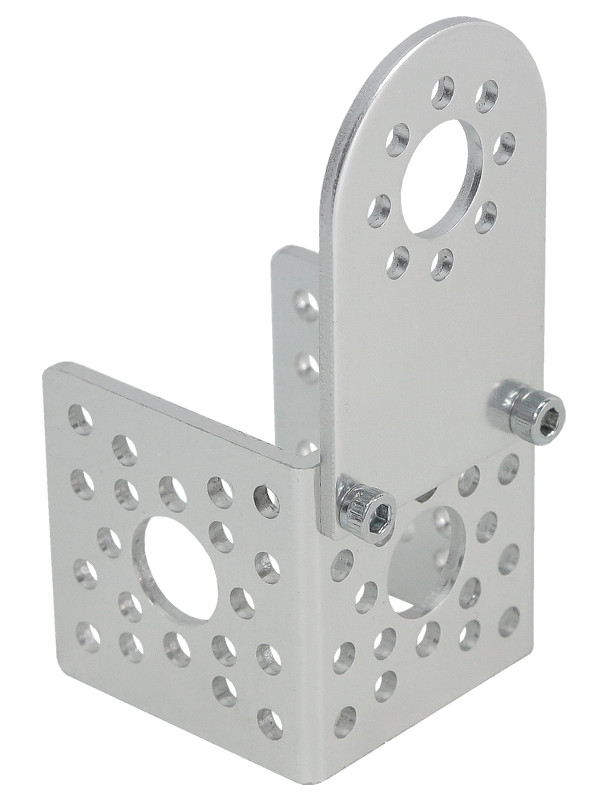

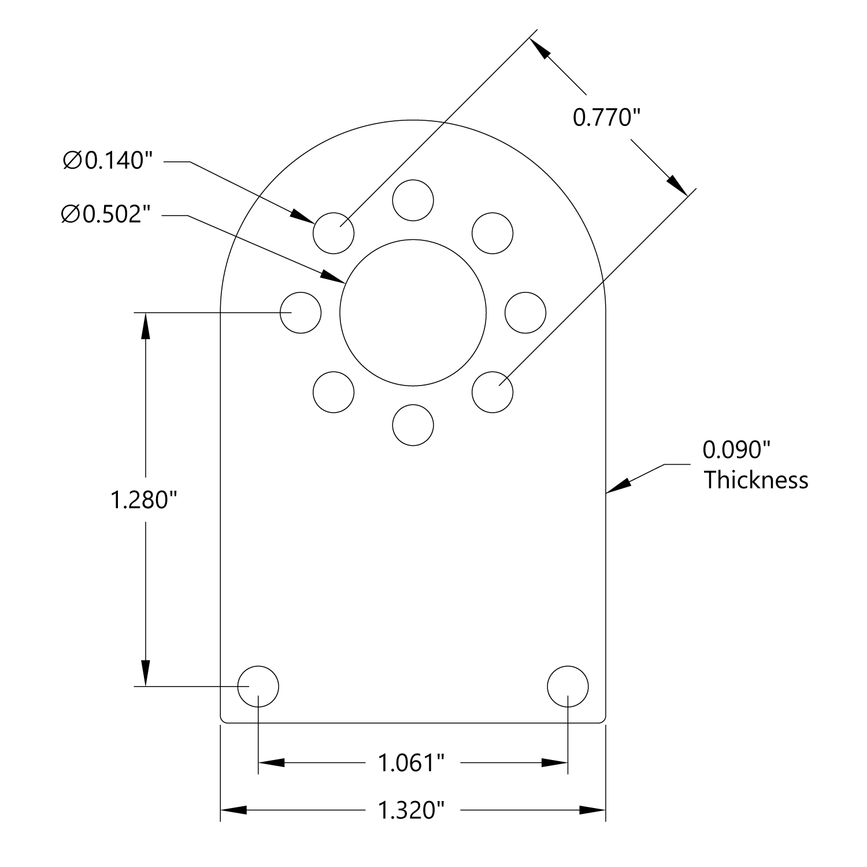

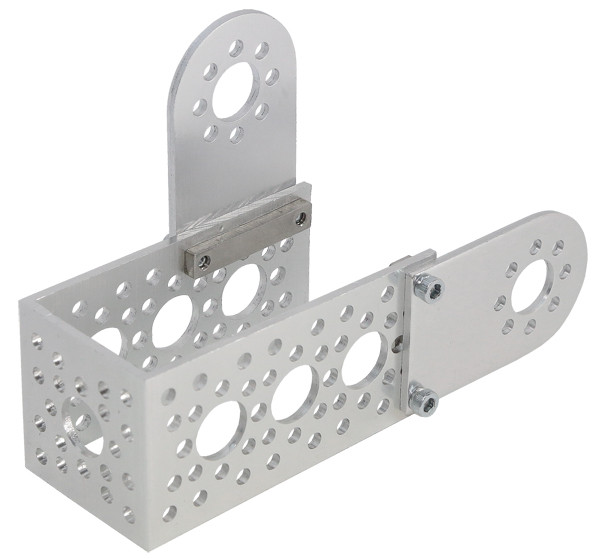

This simple bracket fastens to the side of the 1.5” pattern (hole centers measure 1.061” apart) so you can lap the bracket over the edge of Actobotics channel and have the ½” center hole precisely 1.5” from the hole on the channel directly below it.  This ensures that 32 and 48 pitch Gears will mesh properly.


Material Aluminum
Weight 0.31 oz (8.7g)
Finish Clear Anodized
