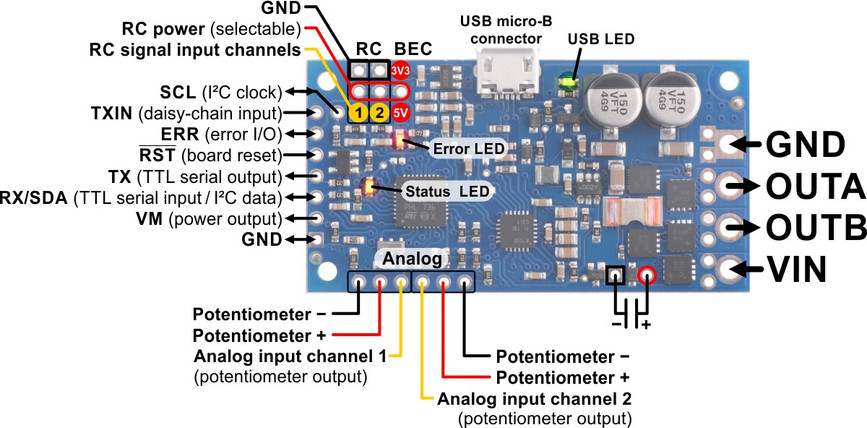

High-Power Simple Motor Controller G2 18v15

1 of 7

Be the first to review this product

Part
605067
605067
Status
In stock
This Product? Share It!

Details

This powerful motor controller makes basic control of a brushed DC motor easy, with quick configuration over USB using free software. It supports five control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), and hobby radio control (RC). This version offers a wide 6.5V to 30V operating range and can deliver continuous output currents up to 15A without a heat sink. Male headers and terminal blocks are included but not soldered, allowing for custom installations.

Note that 30V is the absolute maximum for this controller; the maximum recommended operating voltage is 24V, and the maximum recommended nominal battery voltage is 18V. A USB A to Micro-B cable (not included) is required to connect this controller to a computer.

This version has header pins and terminal blocks included but not soldered, so soldering is required to use it.

Included hardware
The SMC ships with a 0.1″ breakaway male header strip and two 2-pin 5mm terminal blocks. You can solder the terminal blocks to the four large through-holes to make your motor and motor power connections (see our short video on terminal block installation), or you can solder a couple of 2-pin pieces of the 0.1″ header strip into the smaller through-holes above and below these larger holes.

Pieces from the 0.1″ header strip can be soldered into the small holes on the logic connection side of the board to enable use with solderless breadboards, perfboards, or 0.1″ connectors. For the most compact installation, you can just solder wires directly to the holes.

SPECS
Product Weight 0.26oz (7.5g)
Dimensions 2.1″ × 1.1″ × 0.4″ (53.3mm x 27.9mm x 10.6mm)
Channels 1
Control Input USB; non-invented TTL serial; I²C, RC servo pulses; analog voltage
Input Supply Voltage Range 6.5V - 30V
Input Signal Voltage Range 0V -3.3V
Max Current per Channel (Continuous) 15A
Motor Type Brushed DC
Motor Direction Bidirectional
TECH TIPS

User Guide
USB Software Development Kit

Key features of the SMC G2 family

  • Simple bidirectional control of one brushed DC motor
  • Five communication or control options:
    1. USB interface for direct connection to a PC
    2. Logic-level (TTL) serial interface for use with a microcontroller
    3. I²C interface for use with a microcontroller
    4. Hobby radio control (RC) pulse width interface for direct connection to an RC receiver or RC servo controller
    5. 0V to 3.3V analog voltage interface for direct connection to potentiometers and analog joysticks
  • Simple configuration and calibration over USB with a free configuration program for Windows
  • Reverse-voltage protection
  • Hardware current limiting with a configurable threshold
  • Current sensing
  • Adjustable maximum acceleration and deceleration to limit electrical and mechanical stress on the system
  • Adjustable starting speed and maximum speed
  • Option to brake or coast when speed is zero
  • Optional safety controls to avoid unexpectedly powering the motor
  • Input calibration (learning) and adjustable scaling degree for analog and RC signals
  • Under-voltage shutoff with hysteresis for use with batteries vulnerable to over-discharging (e.g. LiPo cells)
  • Adjustable over-temperature threshold and response
  • Adjustable PWM frequency from 1.13 kHz to 22.5 kHz (maximum frequency is ultrasonic, eliminating switching-induced audible motor shaft vibration)
  • Error LED linked to a digital ERR output, and connecting the error outputs of multiple controllers together optionally causes all connected controllers to shut down when any one of them experiences an error
  • Field-upgradeable firmware

Features of the serial, I²C, and USB interfaces:

  • Optional CRC error detection to eliminate communication errors caused by noise or software faults
  • Optional command timeout (shut off motors if communication ceases)

Serial features:

  • Controllable from a computer via serial commands sent to the device’s USB virtual serial (COM) port, or via TTL serial through the device’s RX/TX pins
  • TTL serial uses 0 V and 3.3 V on TX, accepts 0 V to 5 V on RX
  • Supports automatic baud rate detection from 1200 bps to 500 kbps, or can be configured to run at a fixed baud rate
  • Supports standard compact and Pololu protocols as well as the Scott Edwards Mini SSC protocol and an ASCII protocol for simple serial control from a terminal program
  • Optional serial response delay for communicating with half-duplex controllers such as the Basic Stamp
  • Controllers can be easily chained together and to other Pololu serial motor and servo controllers to control hundreds of motors using a single serial line

I²C features:

  • Compatible with I²C bus voltage levels from 1.8 V to 5 V

USB features:

  • Full-speed USB interface (12 Mbps)
  • Example code in C#, Visual Basic .NET, and Visual C++ is available in the Pololu USB Software Development Kit

RC features:

  • 1/4 µs pulse measurement resolution
  • Works with RC pulse frequencies from 10 to 333 Hz
  • Configurable parameters for determining what constitutes an acceptable RC signal
  • Two RC channels allow for single-stick (mixed) motor control, making it easy to use two simple motor controllers in tandem on an RC-controlled differential-drive robot
  • RC channels can be used in any mode as limit or kill switches (e.g. use an RC receiver to trigger a kill switch on your autonomous robot)
  • Battery elimination circuit (BEC) jumper can power the RC receiver with 5 V or 3.3 V

Analog features:

  • 0.8 mV (12-bit) measurement resolution
  • Works with 0 to 3.3V inputs
  • Optional potentiometer/joystick disconnect detection
  • Two analog channels allow for single-stick (mixed) motor control, making it easy to use two simple motor controllers in tandem on a joystick-controlled differential-drive robot
  • Analog channels can be used in any mode as limit or kill switches
