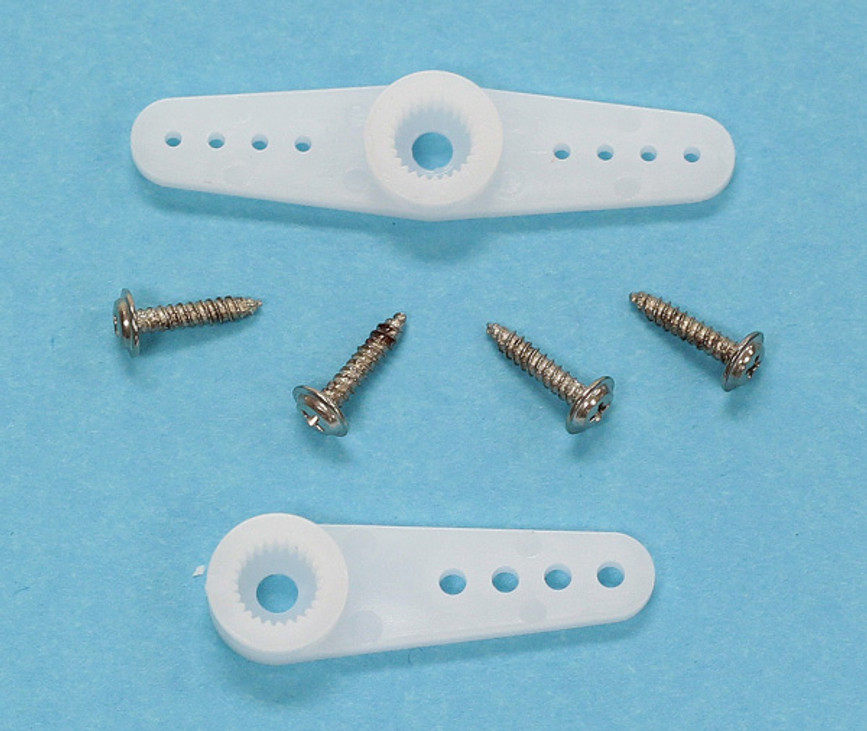

HS-65HB Servo-Clockwise (Stock)
SKU:
The HS-65HB is one of the most powerful servos in the sub-micro class. The HS-65HB servo has Karbonite gears which show nearly zero wear in high-use applications. The 65 series features a top-ball bearing for long life and positive centering, 31 oz-in of torque at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
97°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
189°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
189°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Output Shaft Style | B25T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.14sec/60° |
| No-Load Speed (6.0V) | 0.11sec/60° |
| Stall Torque (4.8V) | 25 oz-in (1.8 kg.cm) |
| Stall Torque (6.0V) | 31 oz-in (2.2 kg.cm) |
| Max PWM Signal Range | 610-2360μsec |
| Travel per µs | .108°/μsec |
| Max Rotation | 189° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Current Drain - idle (4.8V) | 5.3mA |
| Current Drain - idle (6.0V) | 6.6mA |
| Current Drain - no-load (4.8V) | 400mA |
| Current Drain - no-load (6V) | 500mA |
| Continuous Rotation Modifiable | No |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 4µs |
| Motor Type | 3-Pole Neodynium Magnet |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Top Ball Bearing |
| Gear Material | Karbonite |
| Wire Length | 6" (150mm) |
| Weight | 0.39oz (11.2g) |
| Wire Gauge | 28AWG |
| Servo Size | Sub-Micro |
