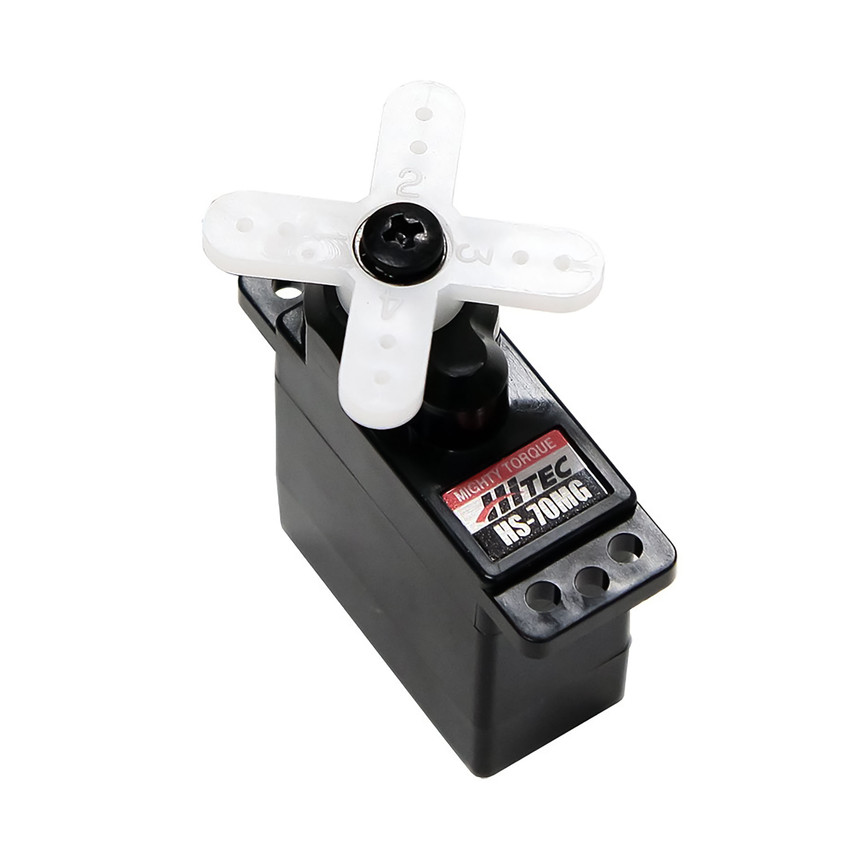

HS-70MG Servo
SKU:

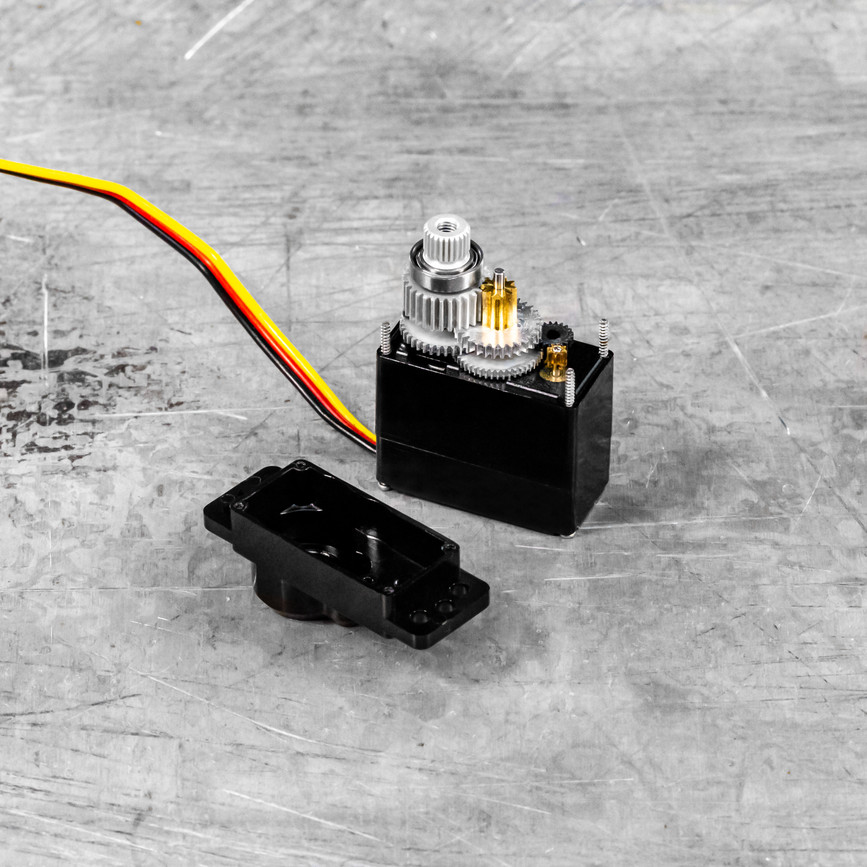

Hitec's strong and speedy analog HS-70MG possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
101°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
194°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
194°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Output Shaft Style | B25T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.17 sec/60° |
| No-Load Speed (6.0V) | 0.14 sec/60° |
| Stall Torque (4.8V) | 33.51 oz-in (2.4 kg.cm) |
| Stall Torque (6.0V) | 41.89 oz-in (3.0 kg.cm) |
| Max PWM Signal Range | 650-2370μsec |
| Travel per µs | .113°/μsec |
| Max Rotation | 194° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | No |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 2µs |
| Motor Type | Cored |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Top Ball Bearing |
| Gear Material | Metal |
| Wire Length | 11.8” (30mm) |
| Weight | 0.44 oz (12.5g) |
| Wire Gauge | 28AWG |
| Servo Size | Micro |
