IGUS W1080-B Slider Kit

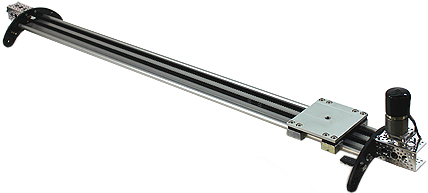

  • Slider Kit on IGUS® W1080-B rail (rail not included)

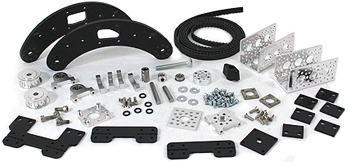

  • included parts - kit comes unassembled

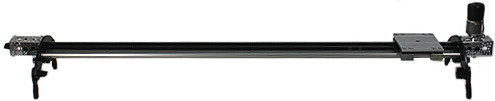

  • Slider Kit on IGUS® W1080-B rail (rail not included)

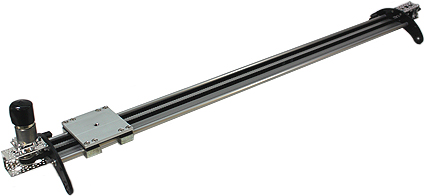

  • Slider Kit on IGUS® W1080-B rail (rail not included)

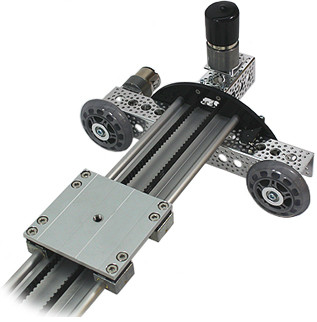

  • show attached to wheels (wheels sold separately)

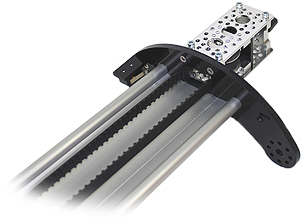

  • shown mounted on channel

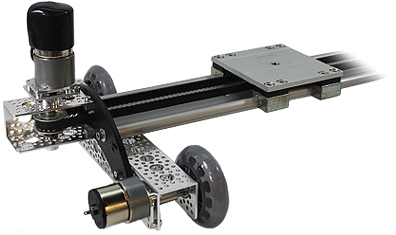

  • show attached to wheels (wheels sold separately)
1 of 10

Be the first to review this product

Price
$119.99 Sign up for Price Alert
Part
637126
637126
Status
In stock
This Product? Share It!

Details

This kit offers a simple way to add a motor to your IGUS® W1080-B slider.  The kit includes all the hardware, brackets, pulleys and belt to upgrade from a manual slider to one that can be drivin by a DC gearmotor to create smoother, more consistant linear motion.  We have designed this kit using our versatile line of Actobotics components so that once built, you can easily modify or add other components to customize it as desired. The included motor mount is compatible with our Standard Spur Gear Motors (gear motor sold separately).

For those who wish to drive the IGUS® W1080-B slider with a stepper motor, check out our 'tech tip' below on how to install a stepper motor in place of a Standard Spur gear motor.

Assembly: Assembly of the slider kit can be done with minimal tools (Phillips screwdriver, 3/32” allen driver, 7/64” allen driver, and a 5/32” allen driver).  Please check out our assembly tutorial videos in the 'tech tips' below.

REQUIRED PARTS (NOT INCLUDED):
(1) Standard Gear Motor
(1) Igus® W1080-B Slider
(1) Motor Controller

SPECS

Slider speed calculation: The following formula can be used to help select the correct speed of gear motor.

RPM of gear motor needed = 11.6 / (# of seconds desired for full travel / 60)

Examples:
If you want the slider to move the entire length (35” of usable slide) in 20 seconds, you can plug it in to the formula:
11.6 / (20sec / 60) = 35RPM motor
Or, if you want the slider to move the entire length (35” of usable slide) in 1 hour, make sure to plug in the time value in seconds:
11.6 / (3600 sec / 60)= 0.193RPM motor
The 0.5RPM motor running at just under half speed would yield this speed.

INCLUDED PARTS:

(8) 6-32 x 3/8” Flat Head Phillips Machine Screws  (1) 1/4” to 6mm Set Screw Shaft Coupler
(8) 6-32 x 1/2” Flat Head Phillips Machine Screws (1) 1/4” Steel Set Screw Collar
(2) 90° Dual Side Mount A (2 pack) (1) 1/4” x 1.25” D-shaft
(1) Aluminum Hub Spacer (3/8” thick) (1) 1/4” x 1.75” D-shaft
(1) Aluminum Motor Mount B (2) 3” Aluminum Channel
(2) Small Square Screw Plate (88.25”) Timing Belt
(1) Flat Single Channel Bracket (2) ABS feet plates
(2) 6-32 x 1/4” Socket Head Machine Screw (25pk) (6) Spacer plates
(2) 1/4” Bore Pillow Block (2) Small belt plates
(1) 90° Quad Hub Mount E (1) Large belt plate
(4) #10 Standard Washers (1) Carriage plate
(1) 1/4” Shafting and Tubing Spacers (12pk) (1) Carriage bolt
(2) 1/4” Bore Pinion Pulley - 15 tooth (1) 1/4-20 knob
(1) 1/4” x 1/2” OD Flanged Ball Bearing (4) 10-24 x 1/2” Socket Head Cap Screws
Product Weight 1 lb
Motor Size Compatibility Standard
Travel Length 35"
TECH TIPS

To make this kit compatible with a NEMA 23 stepper motor you will need the following items:
(4) 6-32 x 3/8” round standoffs
(1) NEMA 23 Motor Mount
(1) 1/4” to 1/4” Set Screw Shaft Coupler

To make this kit compatible with a NEMA 17 stepper motor you will need the following items:
(1) 1/2 Hub Spacer
(1) NEMA 17 Motor Mount
(1) 5mm to 1/4” Set Screw Shaft Coupler
