Large Plain Shaft ServoBlock™ (25T Spline)
SKU:
Build System: Actobotics

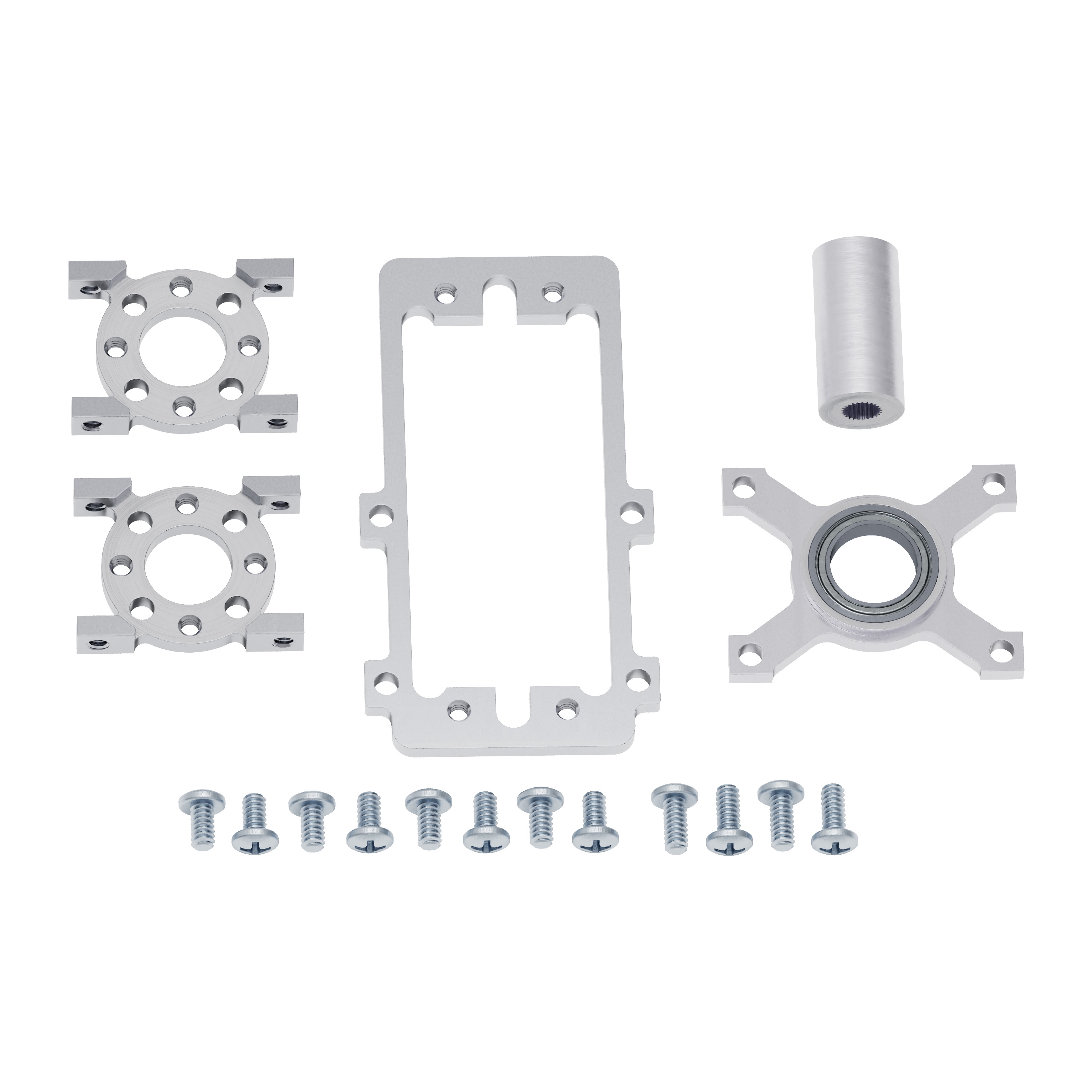

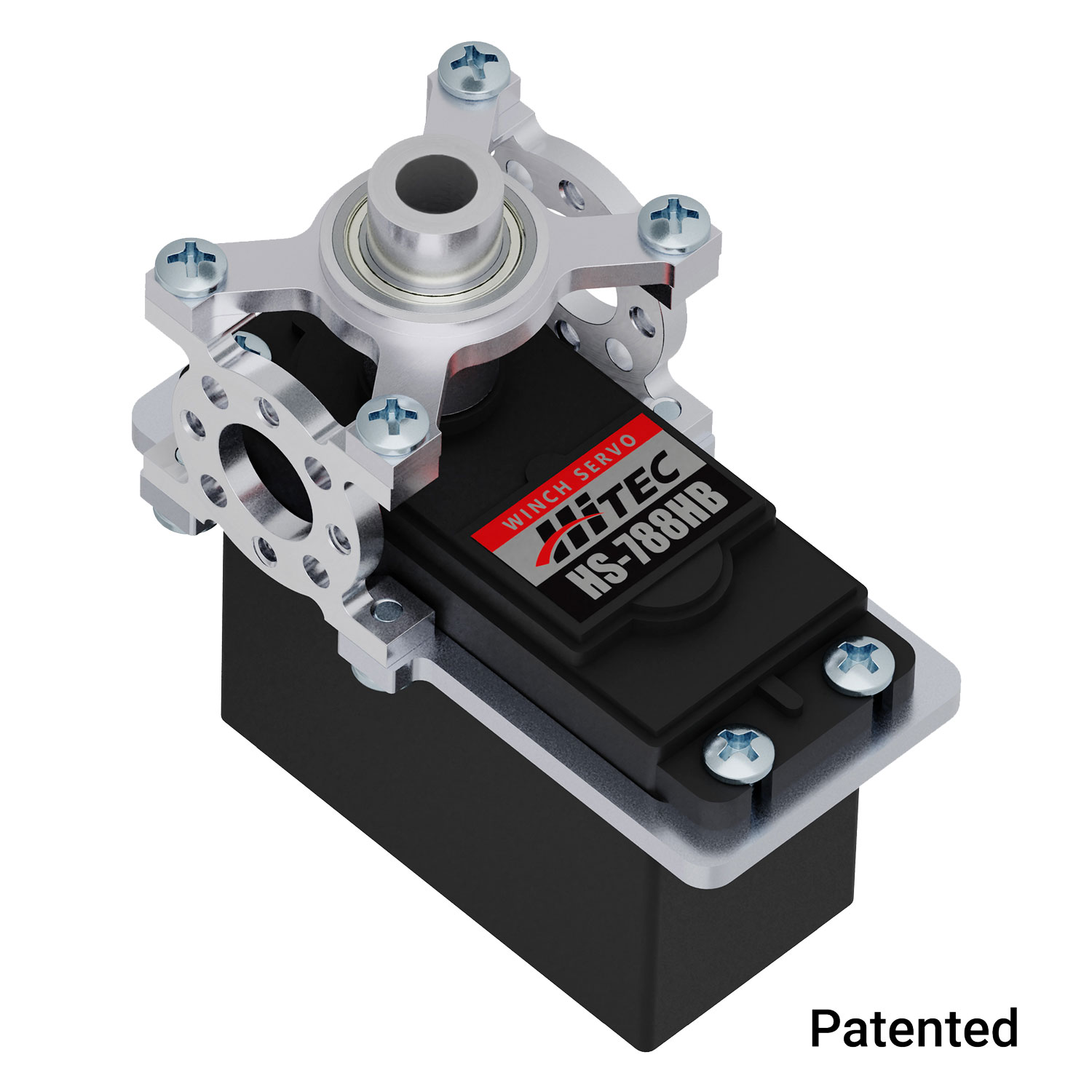

ServoBlocks™ increase a servo’s load-bearing capabilities by helping to isolate the lateral load from the servo spline and case. The extreme versatility of ServoBlocks allow users to create complex, extremely rigid, structures with ease. Using a clamping hub (not included) on the ½” aluminum servo shaft provides an easy way to attach other components to the ServoBlock. Using a clamping hub with the plain shaft provides a simple way to index your assembly at any time without taking anything apart. The robust aluminum framework acts as a servo exoskeleton, greatly enhancing the mechanical loads the servo can withstand. The 0.770” hub pattern is repeated throughout the framework to allow endless attachment options. This Large Size ServoBlock is compatible with the Hitec HS-788HB servo. The kit ships unassembled and the servo is not included. ServoBlocks are a must have for any project that demands the most out of your servo! Patented.
Downloads
Specs
| Weight | 1.55 oz (no servo) |
|---|---|
| Servo Spline Compatibility | H25T Spline |
| IP | Patented |
