Mount for 2.9” Swivel Caster Wheel

includes (4) 6x32 screws
includes (4) 6x32 screws
  • includes (4) 6x32 screws
1 of 10

Be the first to review this product

Part
585069
585069
Status
In stock
This Product? Share It!

Details

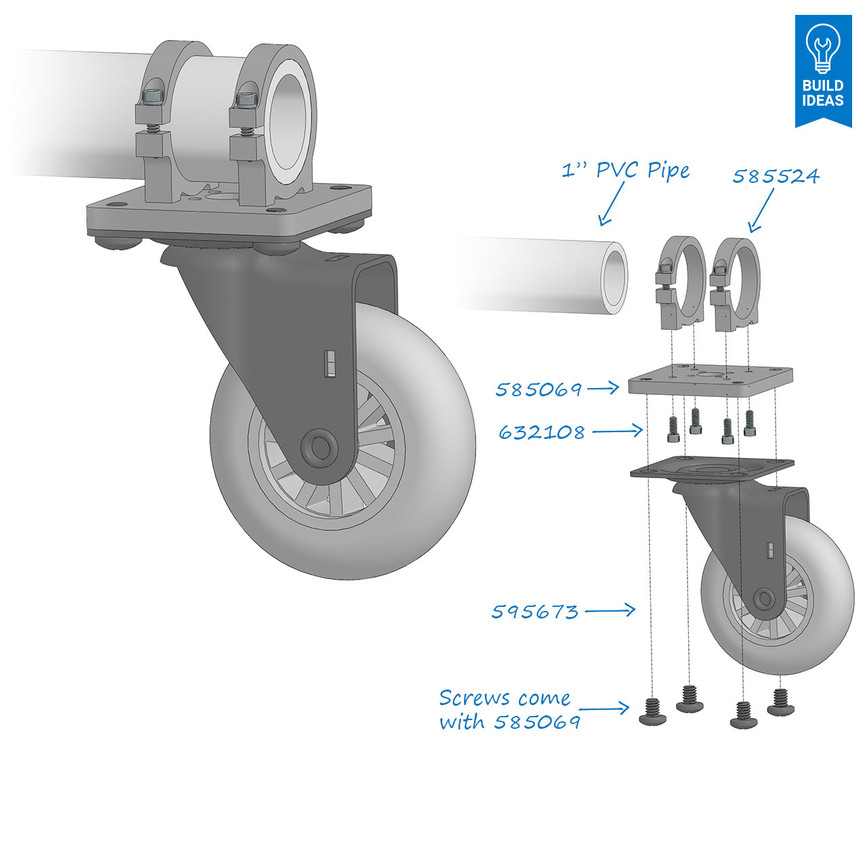

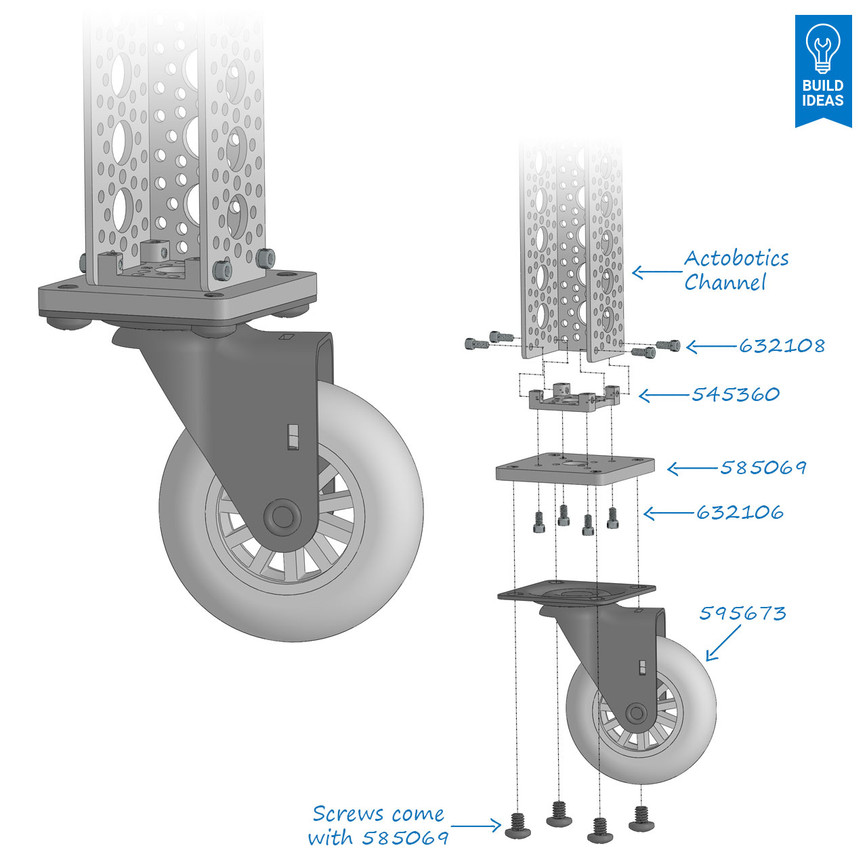

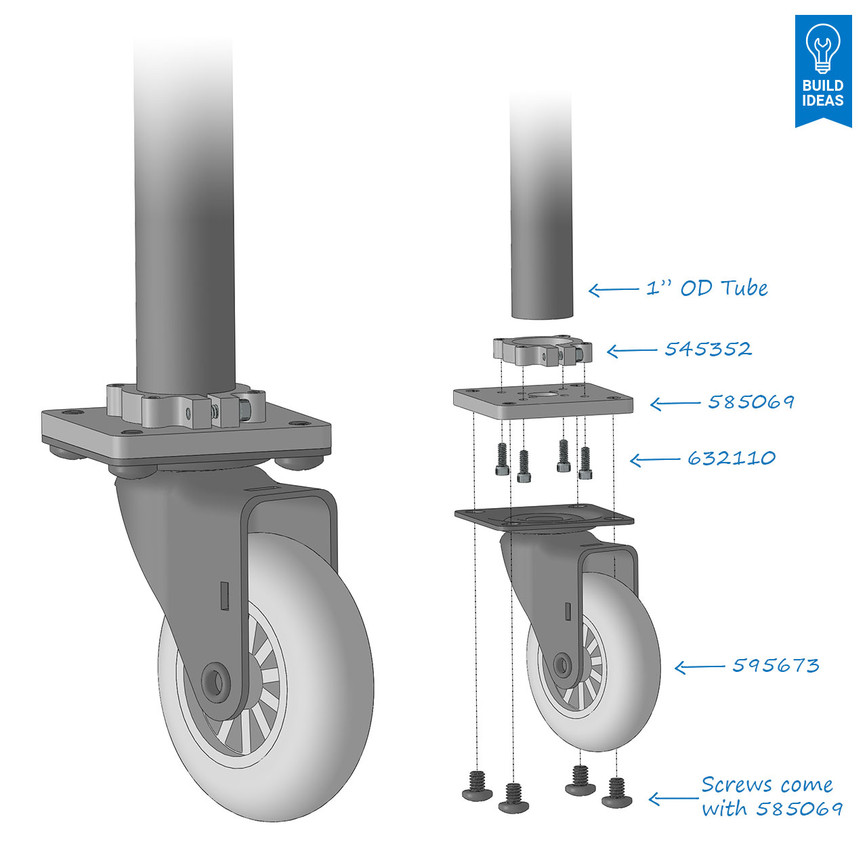

This aluminum plate allows you to attach the 2.9" swivel caster wheel to nearly any Actobotics component.  The plate is able to fasten to anything with the Actobotics pattern using 6-32 screws.  Counterbored thru-holes are machined into the plate so that the 6-32 screws are able to protrude up through the plate and into a threaded part.  When the swivel caster wheel is then fastened to the plate using the provided 1/4"-20 pan head screws the top plate of the swivel caster wheel covers the 6-32 screw heads for a clean, minimalist look.  The 0.23" thick plate combined with the 3.77" caster wheel height rounds out the overall height of the wheel and plate to an even 4".  Includes (4) 6-32 screws.

SPECS

585069

Product Weight 2.30 oz
Material Aluminum
