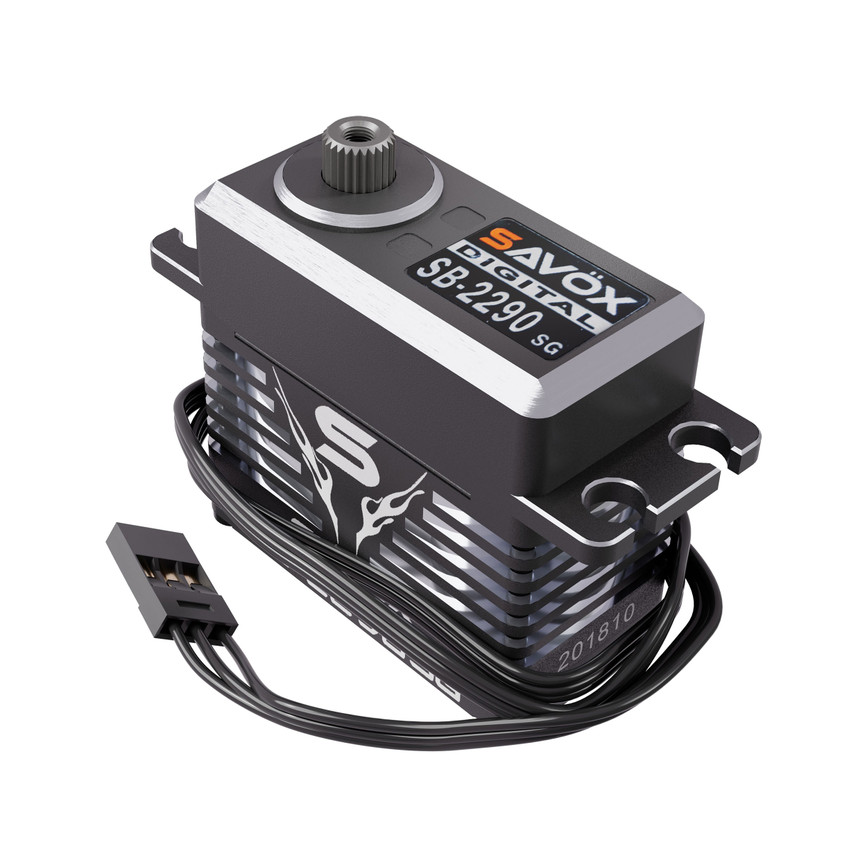

SB2290SG Monster Torque Brushless Servo (Black Edition)
SKU:

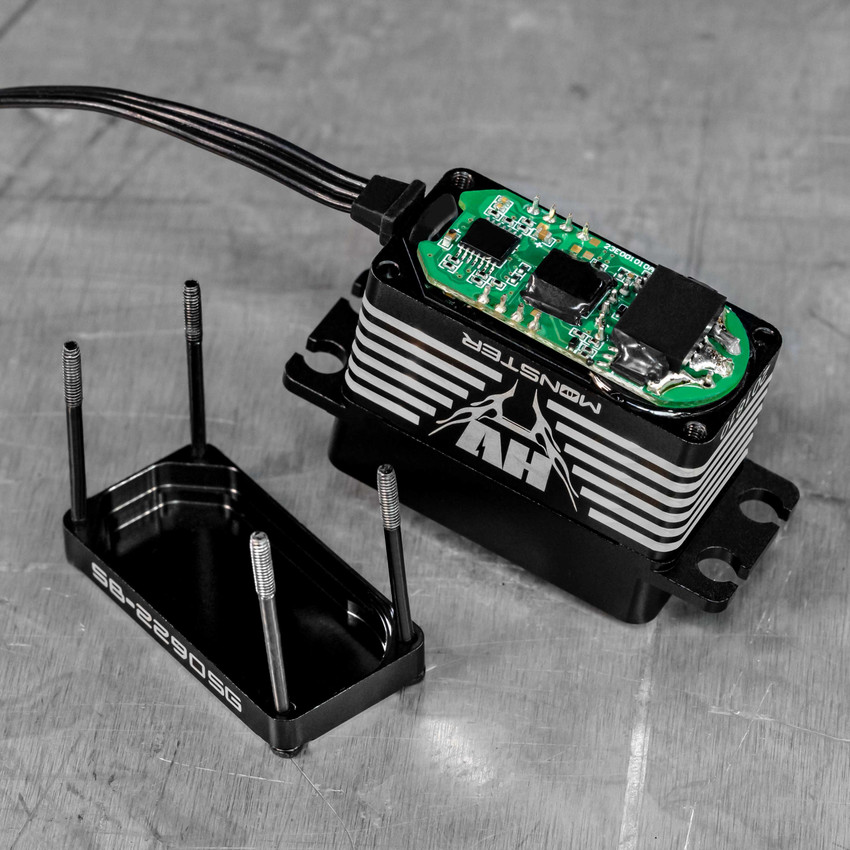

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
102°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
160°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
160°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Output Shaft Style | H25T Spline |
|---|---|
| Voltage Range | 6.0V ~ 7.4 |
| No-Load Speed (7.4V) | 0.13 sec/60° |
| No-Load Speed (6.0V) | 0.16 sec/60° |
| Stall Torque (6.0V) | 555.5 oz-in (40.0 kg.cm) |
| Stall Torque (7.4V) | 694.4 oz-in (50.0 kg.cm) |
| Max PWM Signal Range | 800-2200μsec |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -10°C to 50°C |
| Current Drain - idle (6.0V) | 5mA |
| Current Drain - idle (7.4V) | 5mA |
| Current Drain - no-load (6V) | 180mA |
| Current Drain - no-load (7.4V) | 220mA |
| Current Drain - stall (6V) | 7500mA (7.5A) |
| Current Drain - stall (7.4V) | 9200mA (9.2A) |
| Motor Type | Brushless |
| Output Shaft Support | Dual Ball Bearings |

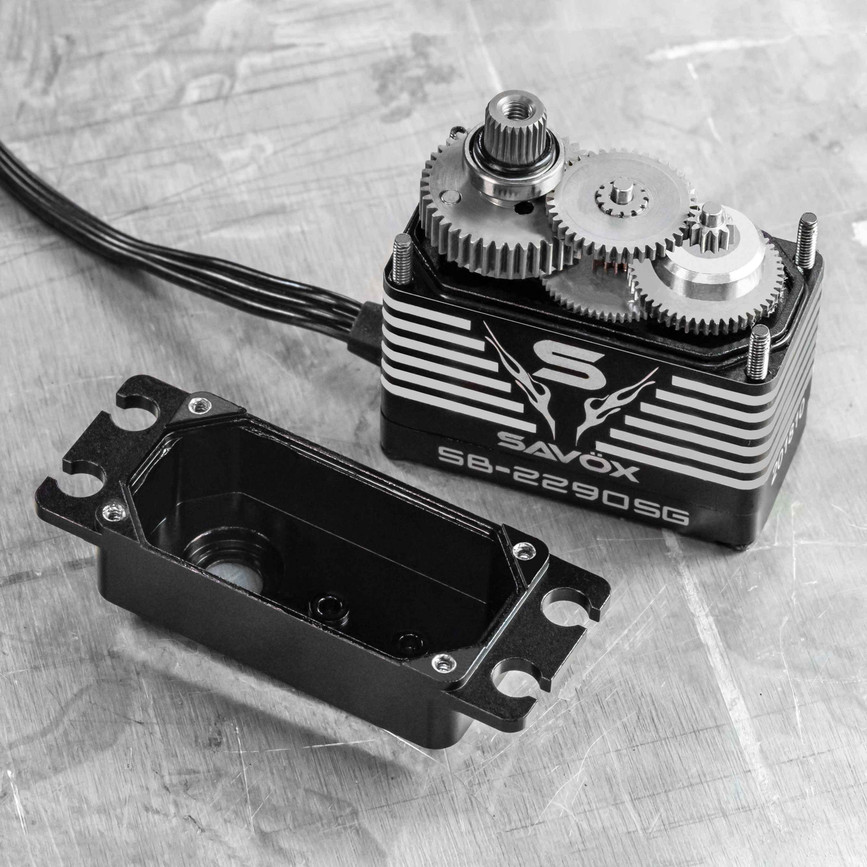

| Gear Material | Steel |
| Wire Length | 11.5" (292.1mm) |
| Weight | 2.85oz (81g) |
| Wire Gauge | 22 AWG |
| Servo Size | Standard |
| Max Rotation | 160° |
| Travel per µs | 0.114°/µsec |
| Direction with Increasing PWM Signal | Counterclockwise |
