SC0252MGP Standard Digital Servo
SKU:
The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.
How Far Will This Servo Rotate?
The answer to this question is partially dependent on what you are using to control the servo.
Click for a quick video explanation.
With an Average Radio System:
106°
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
165°
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
165°
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Tech Tips
Specs
| Output Shaft Style | H25T Spline |
|---|---|
| Voltage Range | 4.8V ~ 6.0V |
| No-Load Speed (4.8V) | 0.23 sec/60° |
| No-Load Speed (6.0V) | 0.19 sec/60° |
| Stall Torque (4.8V) | 100.0 oz-in (7.2 kg.cm) |
| Stall Torque (6.0V) | 145.8 oz-in (10.5 kg.cm) |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -10°C to 50°C |
| Current Drain - idle (4.8V) | 6mA |
| Current Drain - idle (6.0V) | 6mA |
| Current Drain - no-load (4.8V) | 300mA |
| Current Drain - no-load (6V) | 330mA |
| Current Drain - stall (4.8V) | 1400mA (1.4A) |
| Current Drain - stall (6V) | 1700mA (1.7A) |
| Motor Type | Brushed |
| Output Shaft Support | Dual Ball Bearings |

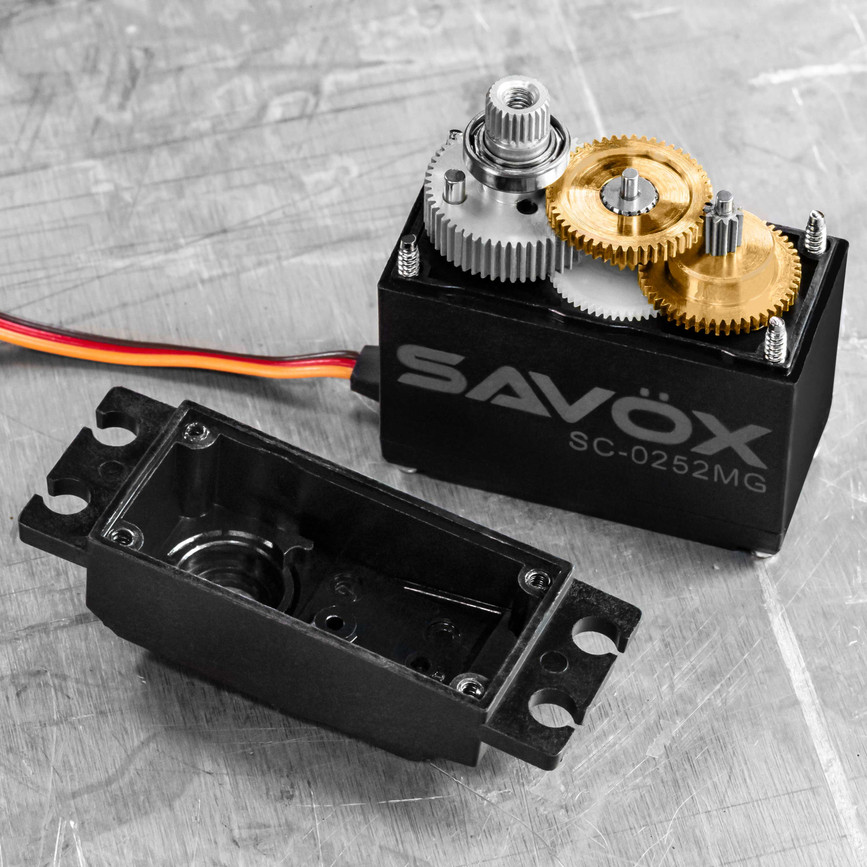

| Gear Material | Steel |
| Wire Length | 11.0" (279.4mm) |
| Weight | 1.7oz (49g) |
| Wire Gauge | 22 AWG |
| Max PWM Signal Range | 800-2200μsec |
| Servo Size | Standard |
| Max Rotation | 165° |
| Travel per μsec | 0.118°/µsec |
| Direction with Increasing PWM Signal | Counterclockwise |
