Servo Power Board (assembled with pins and male servo leads)

  • additional view of fully assembled servo power board
  • additional view of fully assembled servo power board
1 of 3

Be the first to review this product

Part
SC71351
SC71351
Status
In stock
This Product? Share It!

Details

The Servo Power Board allows you to cleanly isolate current and voltage from your receiver to protect the tiny traces within from burning out. One side of the board shares a direct connection with your servo controller while the other allows servos (up to 8) to be plugged in. The positive trace is split between the servo controller side and the servo side so that you can supply power to the solder pads without sending that power on to the servo controller. This is advantageous in setups where the servos require a different voltage than the servo controller. If you want to share the voltage between the servos and the controller you can add a lead to the solder pads labeled ‘RX’. This setup will still protect the controller from the current drawn by the servos as the current will travel between the battery and the servos and not through the controller.

This version comes fully assembled ready to plug in and use. The male servo leads will jump over to a servo controller and the pins allow servos to be plugged in.

SPECS

SC7135-Unassembled-Servo-Power-Board-600px-with-text

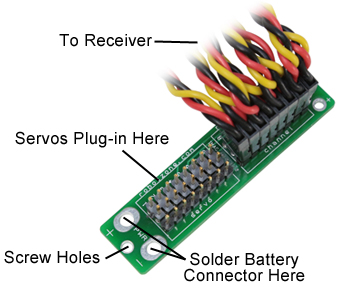

SC7135-Assembled-Servo-Power-Board-End-600px-with-text







Product Weight 1.12 oz
Number of Channels 8
Wire Gauge 22 AWG
Wire Length 6"
Max Current Per Channel 3A per channel continuous / up to 9A total
