Stacker™

Test your stacking skills!
Test your stacking skills!
  • Test your stacking skills!
  • 9.75" tall
  • Large electronics compartment for battery and receiver storage
  • Omni-directional movement
  • Made of durable 1/4” ABS plastic
  • Can lift objects 11.5” when fully extended
  • 4.25” Gripper Spread
  • Included parts - step by step assembly instructions included
  • Test your stacking skills!
1 of 11

Be the first to review this product

Price
$139.99 Sign up for Price Alert
Part
815102
815102
Status
In stock
This Product? Share It!

Details

Stacker Robot Logo

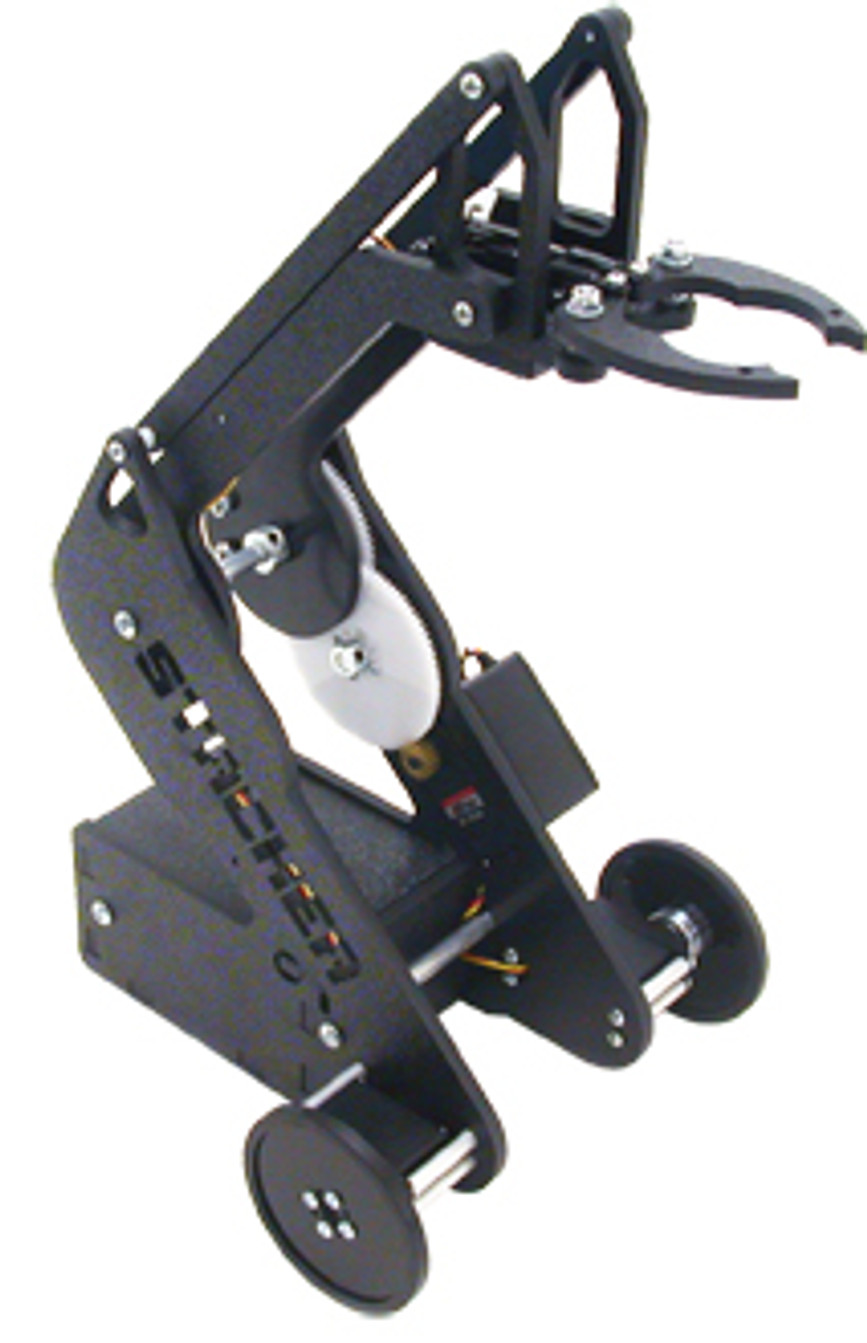

This kit is great for both classroom applications and individual robotics enthusiasts. The Stacker wheeled robot kit is machined from 1/4” ABS plastic for strength and durability. The ABS framework also allows for easy drilling to accommodate custom attachments such as cameras, sensors, etc. The framework provides a large electronics compartment that stores the receiver, battery, and any additional added electronics. With 3” drive wheels and omni-directional movement, the Stacker travels well and is easy to maneuver. The Stacker Robot comes in kit form with assembly instructions, a parts list, and a 1:1 scale hardware key for easy assembly. The servos and radio control system are not included with the kit, and must be purchased separately. See the bottom of this page for recommendations. Patented.

SPECS
Features:
-Machined from extremely durable 1/4” ABS plastic
-Customizable framework to accommodate various attachments
-R/C or autonomous control*
-Large electronics compartment
-Omni-directional movement
-Additional front mounting plate available (see below)
-Lifts objects 11.5” when fully extended
-Stainless steel castor
-3” drive wheels
*Add your own sensors for autonomous control.

Specifications:
-Weight: 3 pounds (including servos)

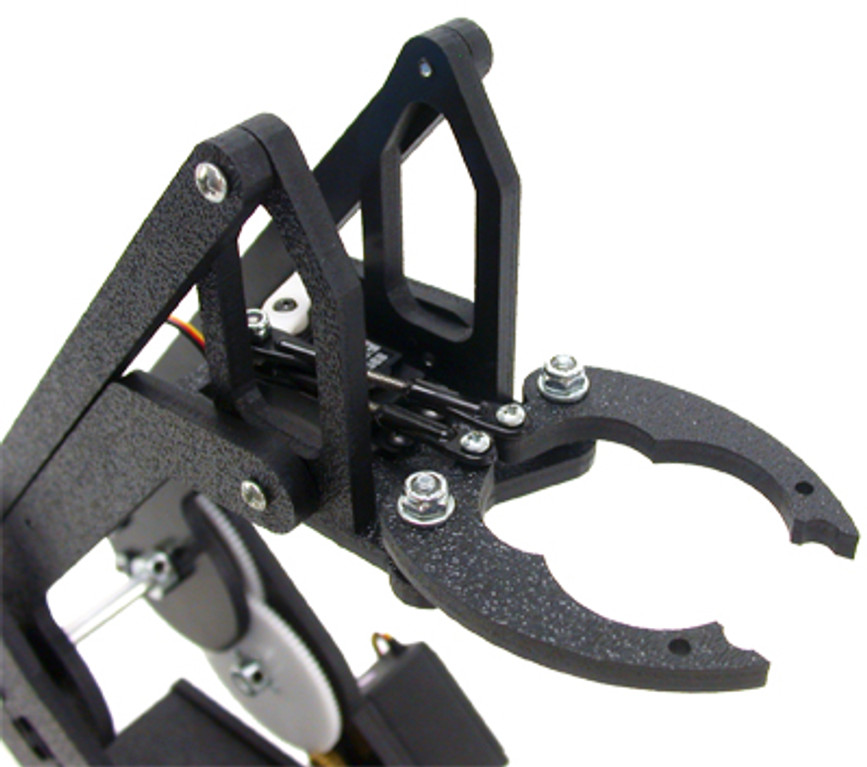

-Gripper Spread: 4.25”
-Reach: Lifts objects 11.5” when fully extended
-Dimensions: 9.75” H x 7.75” W x 10.25” D


There are additional items needed to complete your kit.
If you do not already have the items below, you will need to purchase these items seperately.

For best performance, we recommend the following items:

(1) Radio System
TACJ2410-Tactic-Radio-front-(105px)
Tactic X410
(1) Lift Arm Servo*
HS-785HB small
HS-785HB (Lift Arm)*
(1) Gripper Servo
HS-425BB medium
HS-425BB (Gripper)
(2) Wheel Servos
HSR-1425CR Servo 1.7
HSR-1425CR or HSR-2654CR

If you are unsure whether an item that you already have will work with the Stacker, e-mail our techs or call 620-221-0123.

Dimensions 9.75” H x 7.75” W x 10.25” D
Product Weight 3.35 lbs (53.6 oz)
Tire Size 3"
