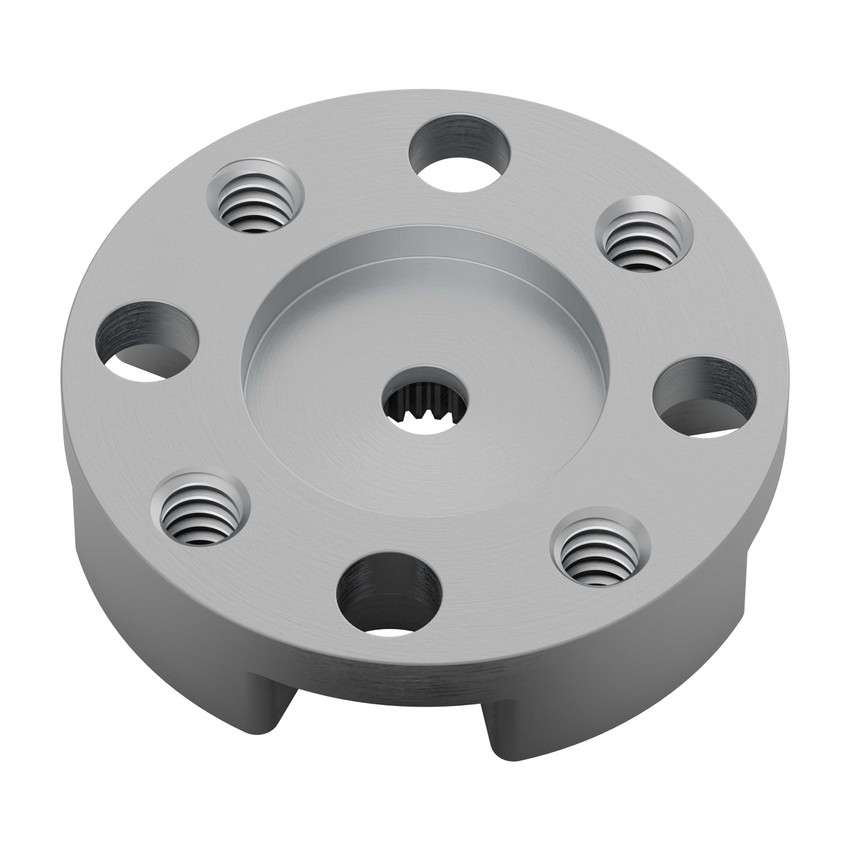

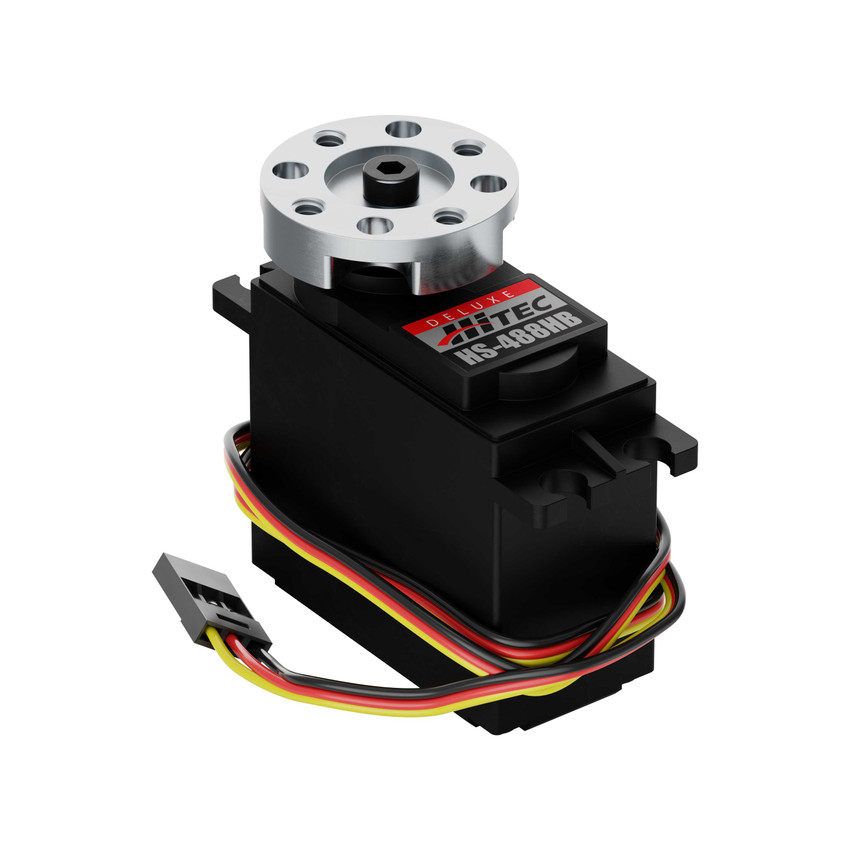

Actobotics Servo Horn (H25T Spline)
SKU:
Build System: Actobotics
This 25T spline servo hub horn has the standard Actobotics® 0.77” hub pattern. The threaded holes allow you to fasten a part by installing screws from the top while the thru-holes allow screws to come up from the bottom and thread into a mating component. The 1” OD allows a 1” clamping hub to fasten around the outside.
Downloads
Specs
| Spline Size | H25T Spline |
|---|---|
| Material | Aluminum |
| Weight | 0.21 oz (5.8g) |
| Finish | Clear Anodized |
