V-Wheel Kit B

1 of 16

Be the first to review this product

In stock
This Product? Share It!

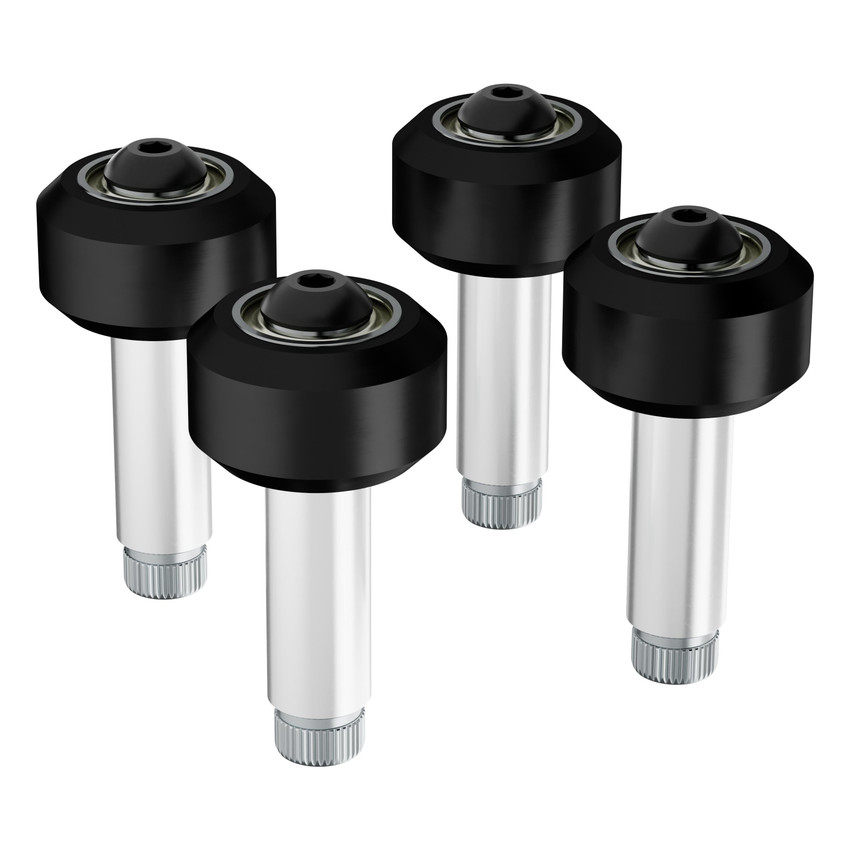

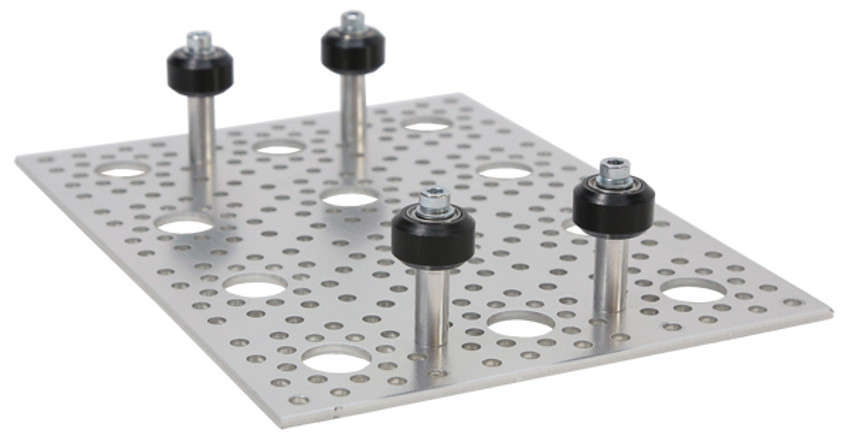

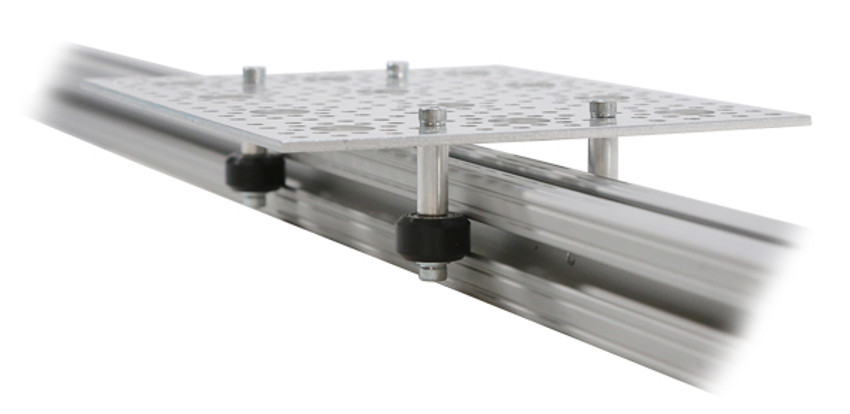

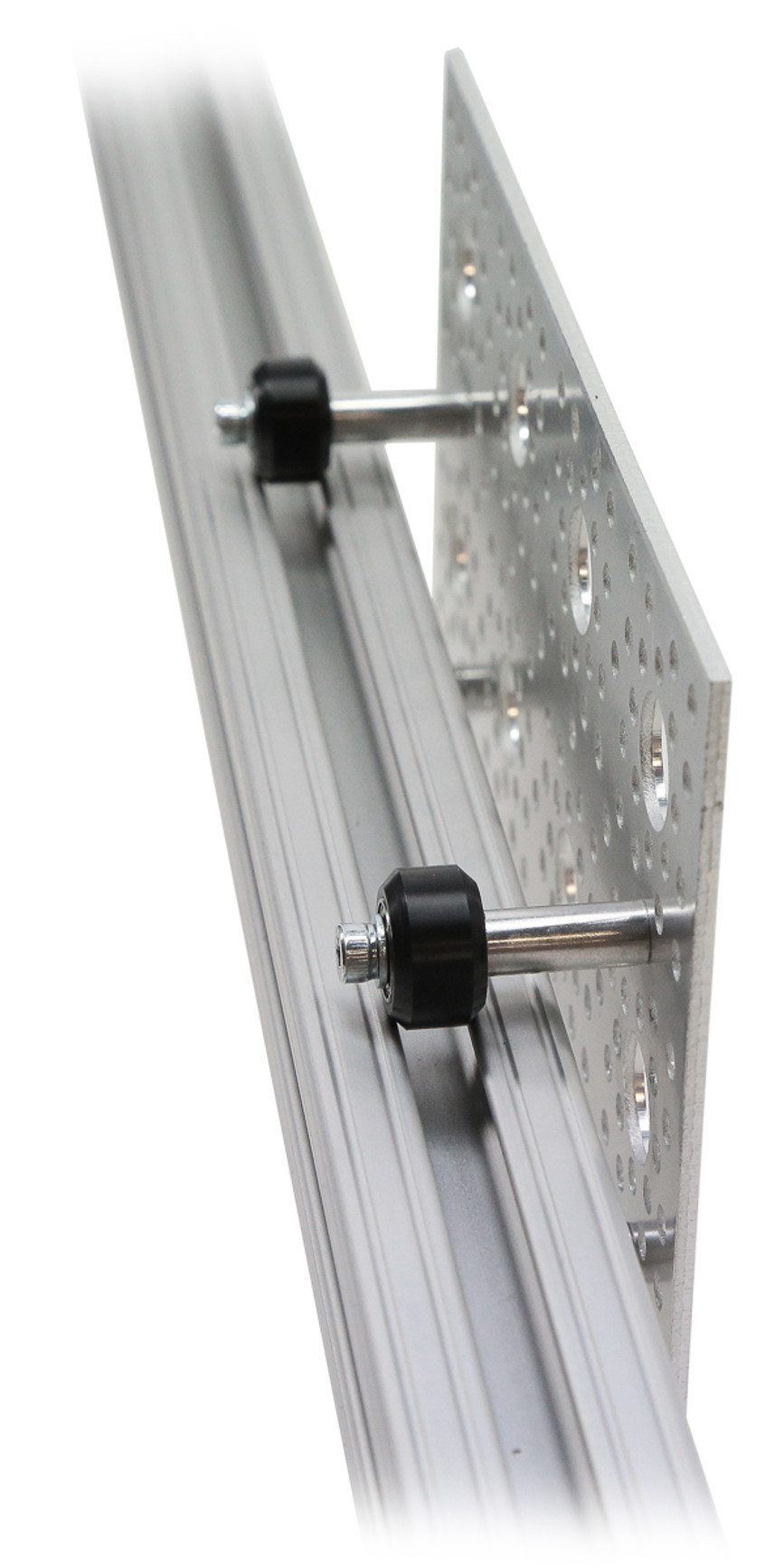

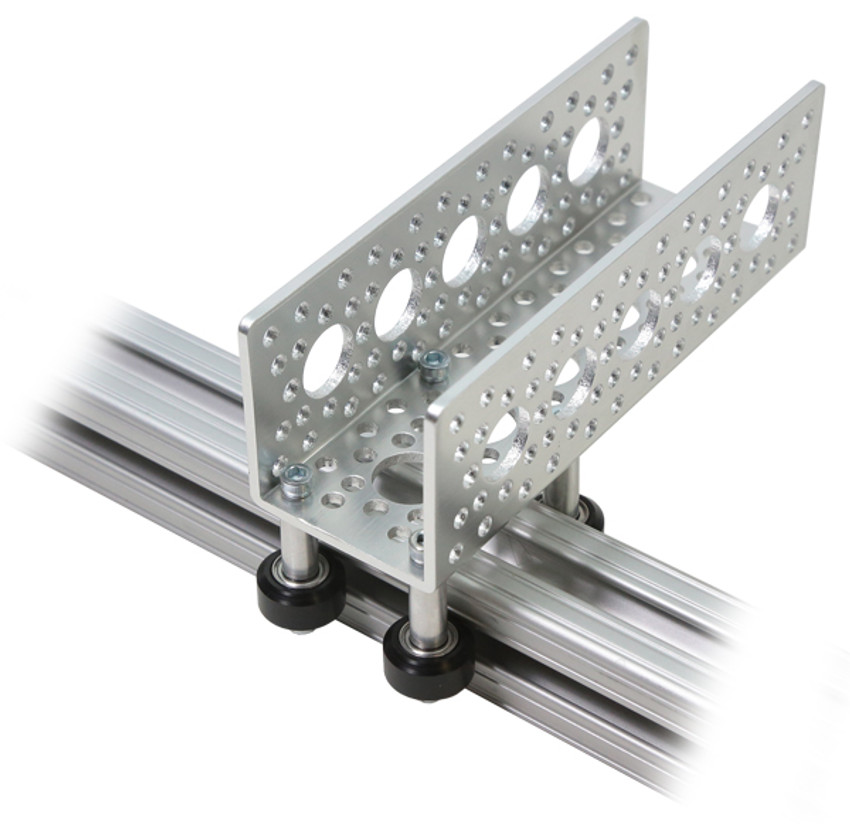

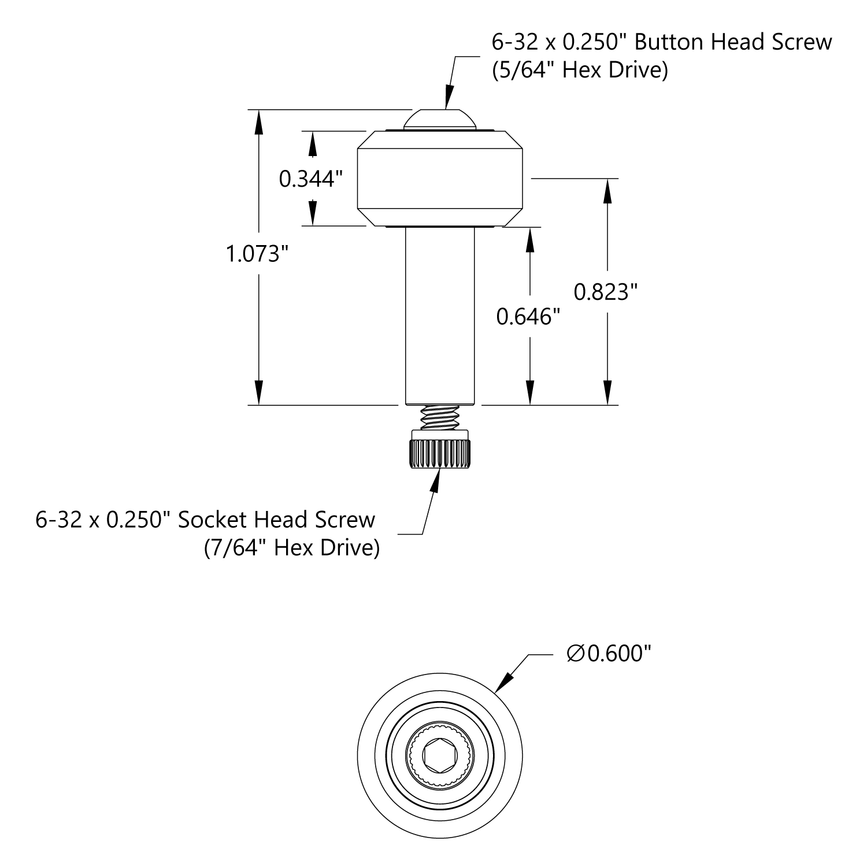

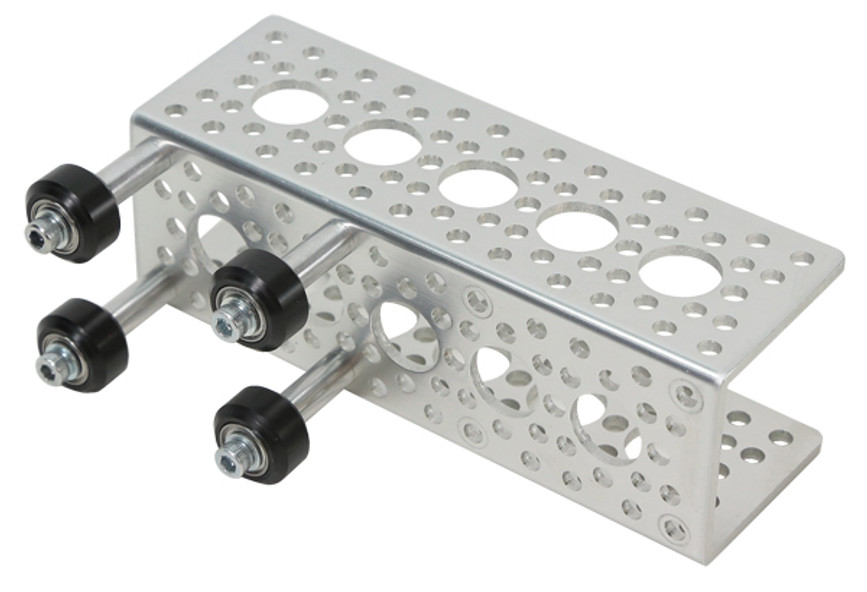

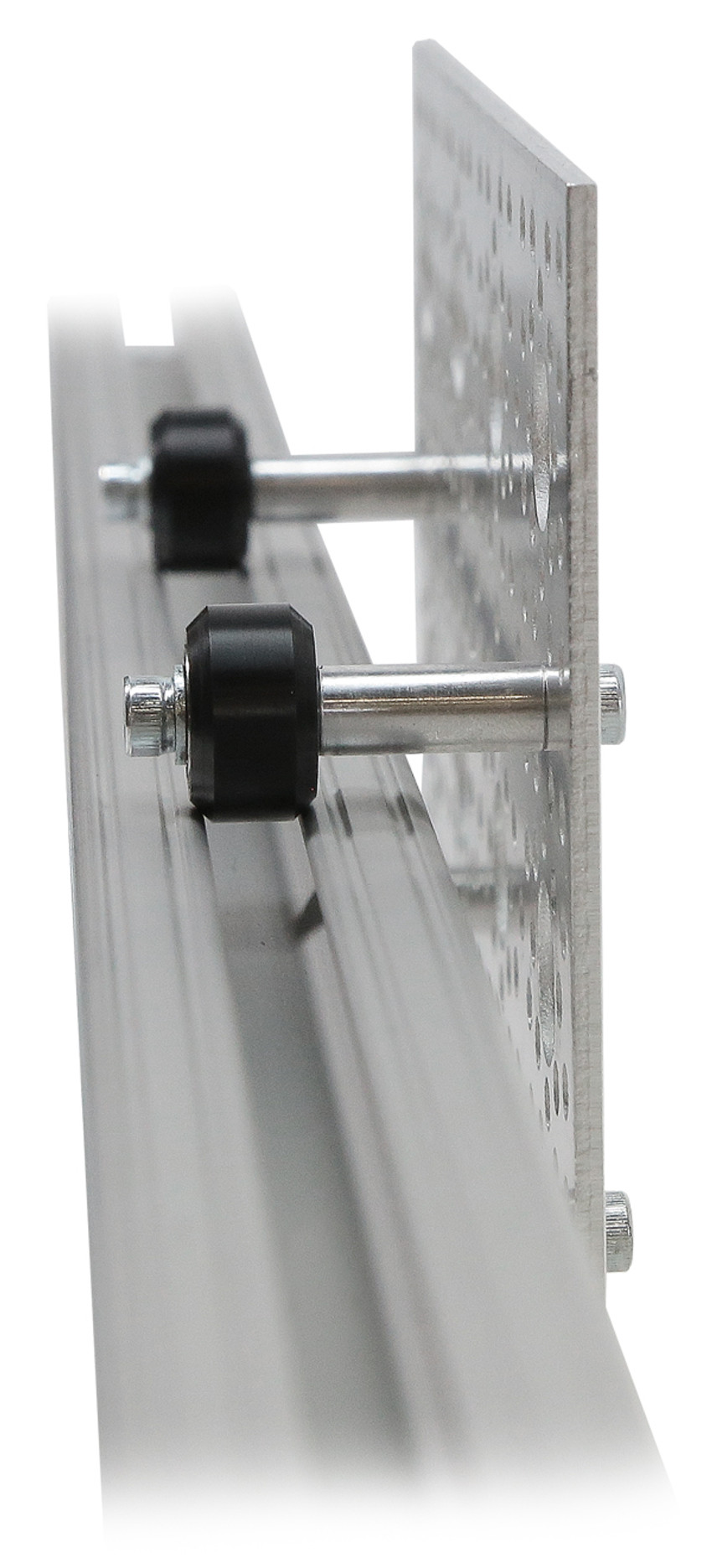

This ball-bearing v-wheel kit works in conjunction with 80/20® (1010 series) as well as our own X-Rail to create smooth linear motion. The Acetal construction of the miter wheels offers high durability and wear resistance. The internal ball bearing has an ID of 5mm and the overall miter wheel diameter is 0.60”.  Four 5mm to 1/4” tapped standoffs are included to make it easy to attach the miter wheel to channel or other Actobotics® components. The 1” standoff length provides plenty of clearance for the attached component to slide onto the extrusion as shown in the pictures.

The X-Rail Roller Bracket and 80/20® Roller Bracket that work with this kit are sold separately.


Kit Includes:

Qty SKU Product Description
4 615452 V-Wheel with Ball Bearings
1 633162 V-Wheel Standoff B (4 pack)
4 632106 0.250" (1/4") 6-32 Zinc-Plated Socket Head Machine Screws
4 97763A141 0.250" (1/4") 6-32 Button Head Hex Drive Screw


Download Attachment
zip637082 STEP File(81.22 KB )Download
