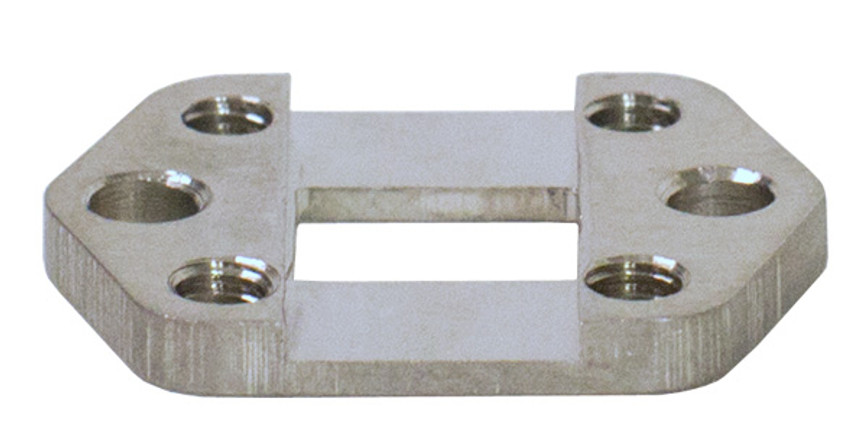

XL Belt Mount A

SKU: Build System: Actobotics
$3.99

The XL Belt Mount A works great with our XL series timing belt. This belt mount is constructed of 316 stainless steel and contains both tapped holes and thru-holes in the Actobotics 0.770” pattern. When tightened down to a surface, it secures the timing belt to ensure that it won’t slip even under heavy loads. The open cutout in the center of the belt mount allows the ends of the timing belt to protrude through the middle which allows the user to adjust belt tension with ease. The XL Belt Mount A will accept both 1/4” and 3/8” width XL series timing belts.

Tech Tips:

This hub uses 6-32 socket head machine screws (sold separately).

Downloads

Specs

Material Stainless Steel
Weight 0.25 oz (7g)
Belt Compatibility XL Timing Belt Series
