1" Bore Side Tapped Pillow Block

SKU: Build System: Actobotics

DISCONTINUED This product has been discontinued.


Currently Sold Out

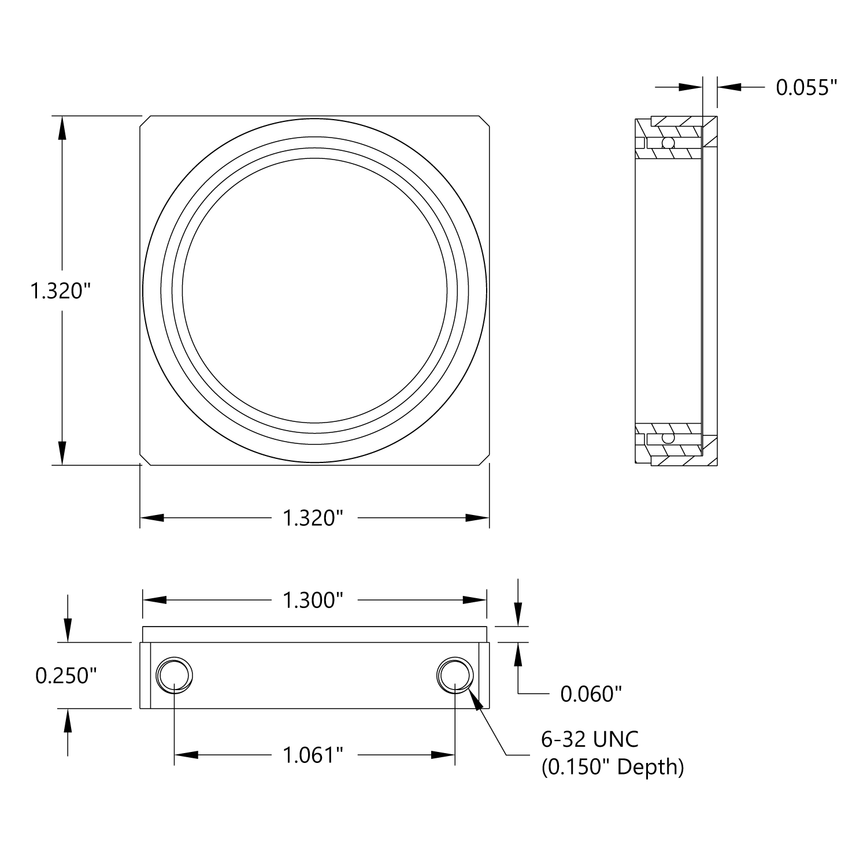

This 1" bore pillow block has a 1.32" square profile to fit inside U-Channel. The threaded holes allow for solid attachment in channel and additionally provides support to the channel it mounts in by tying the sides together. Note that the flanged bearing that is installed in this pillow block is a snug slip-fit so it’s recommended to limit the axial movement by a collar, hub or nearby component.



Material Aluminum Housing, High-Carbon Steel Bearing
Weight 0.46 oz (13g)
Static Load 212 lbs
Max RPM 21,000
Bearing ID 1.00"
Dynamic Load 485 lbs
