1109 Series goRAIL® (48mm Length)

SKU:
$4.19

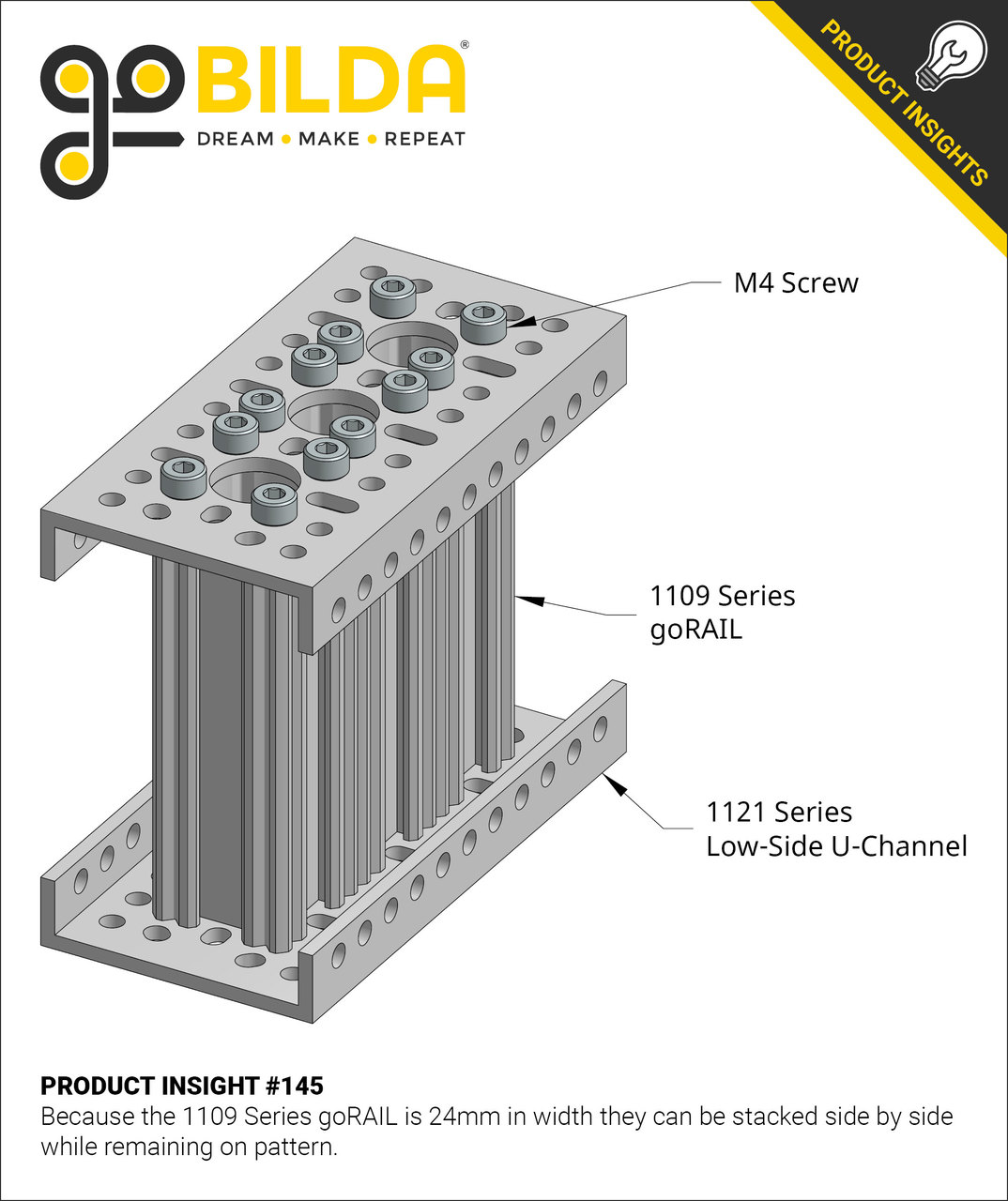

The 48mm length goRAIL® matches the width of 1120 Series U-Channel and many other pattern based structural components.  It can be used as a spacer between plates, as a bearing carrier, or just to create slide-and-lock mounting options on your pattern based build.

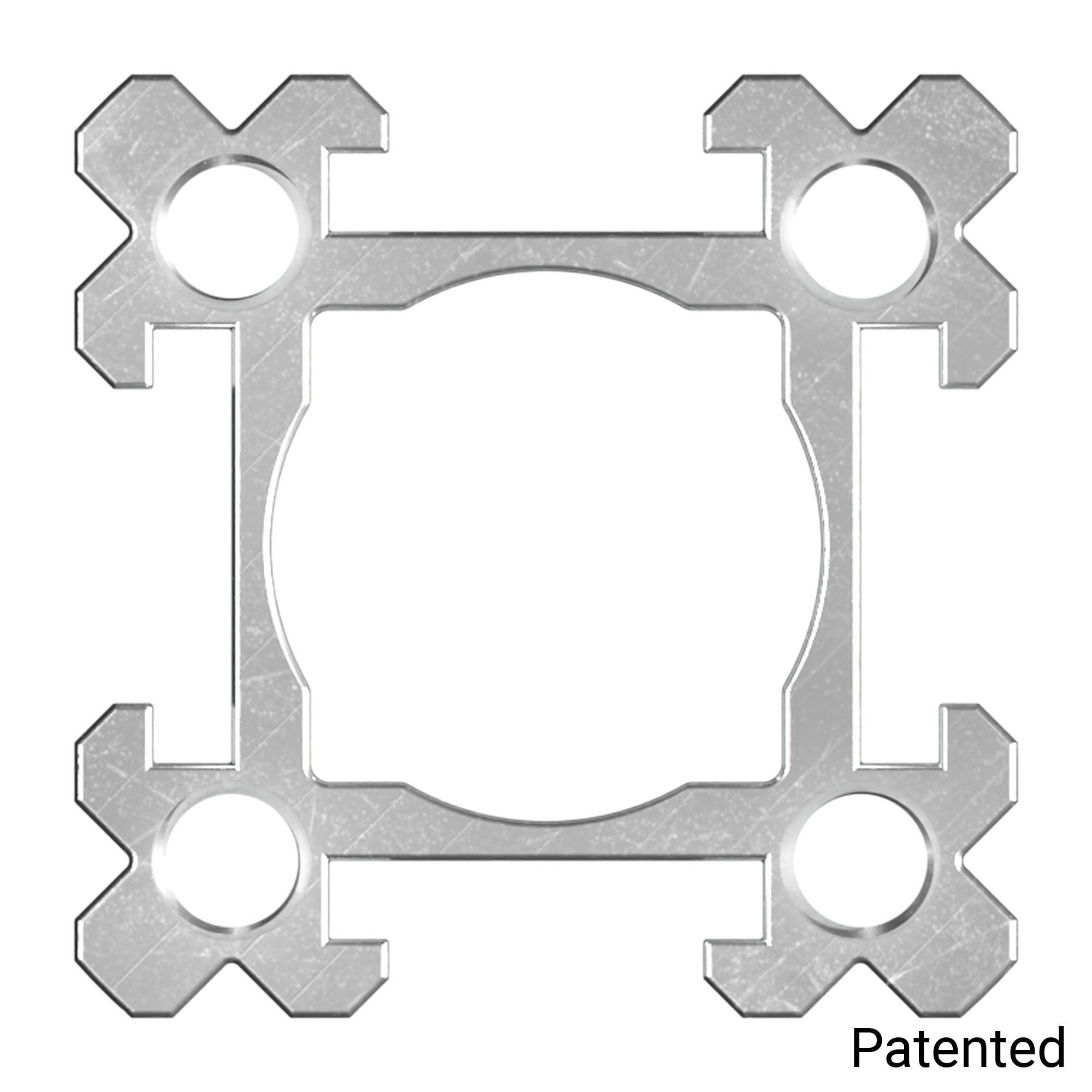

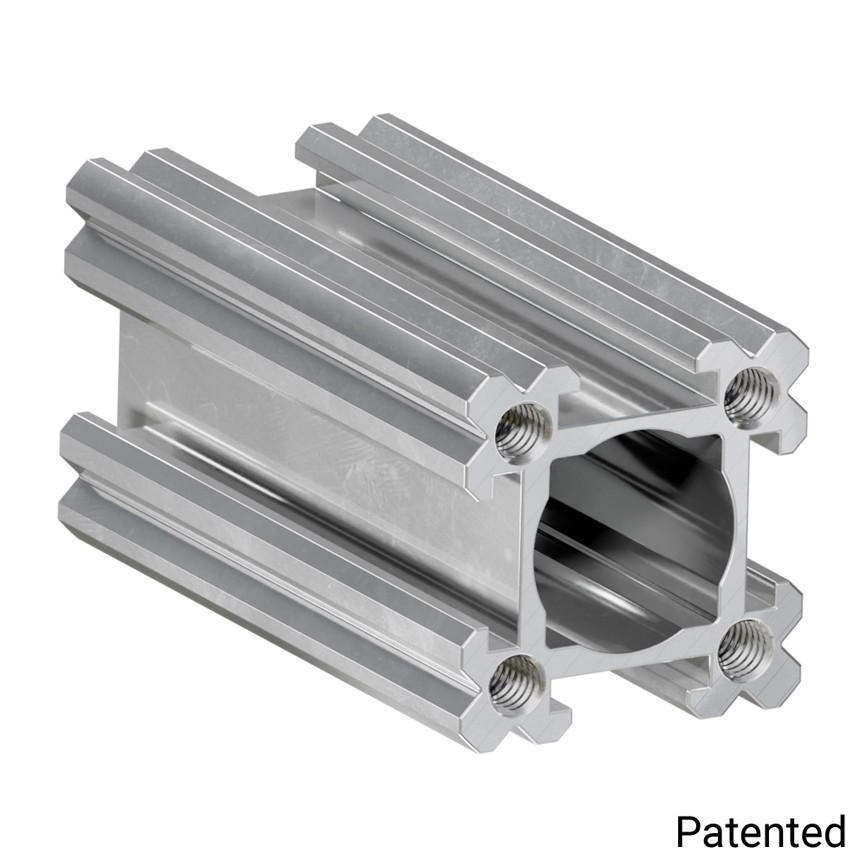

This 48mm Length goRAIL® is a length of T-slot extrusion: a structural component that allows for slide-and-fasten style building using the T-slots down its sides.

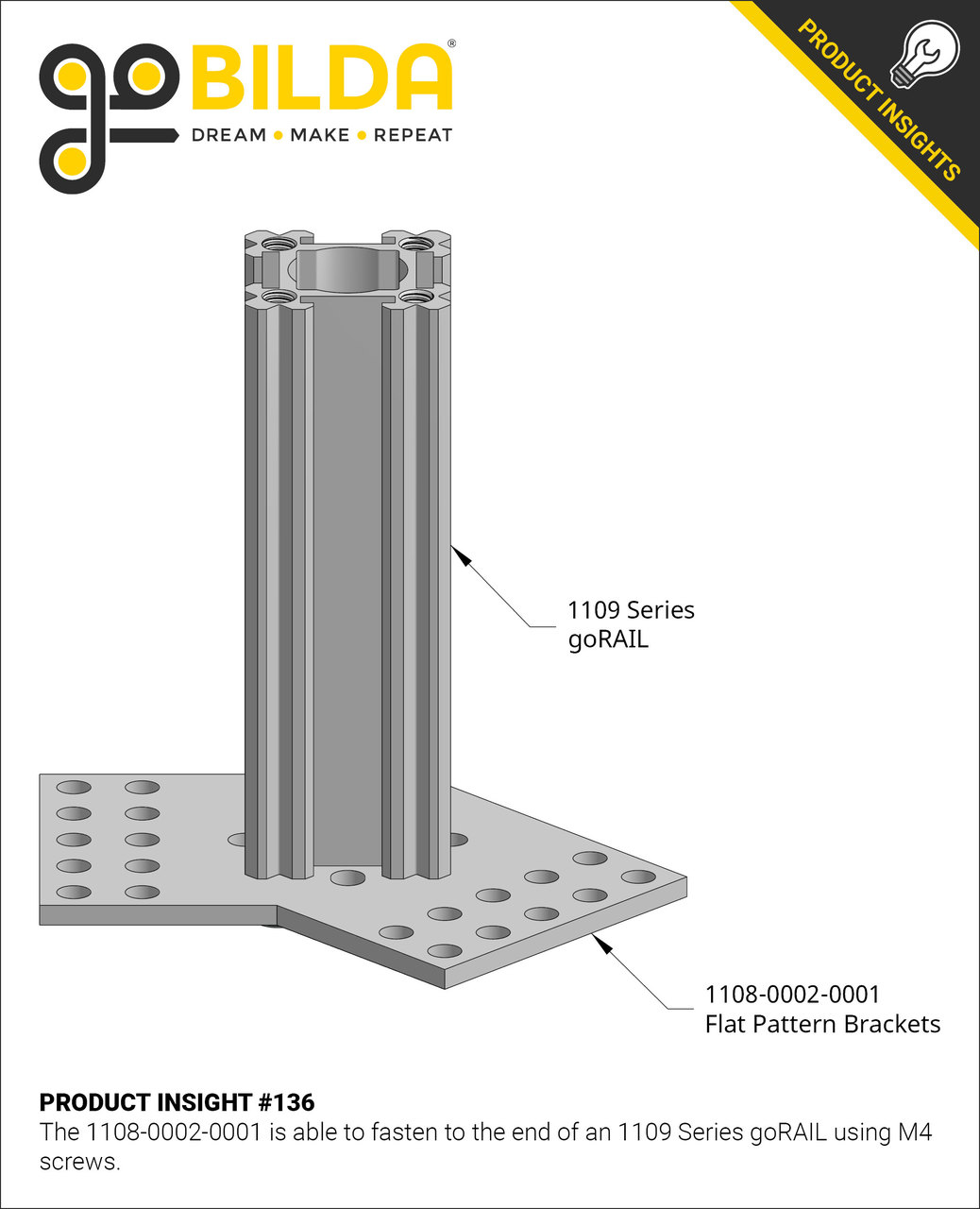

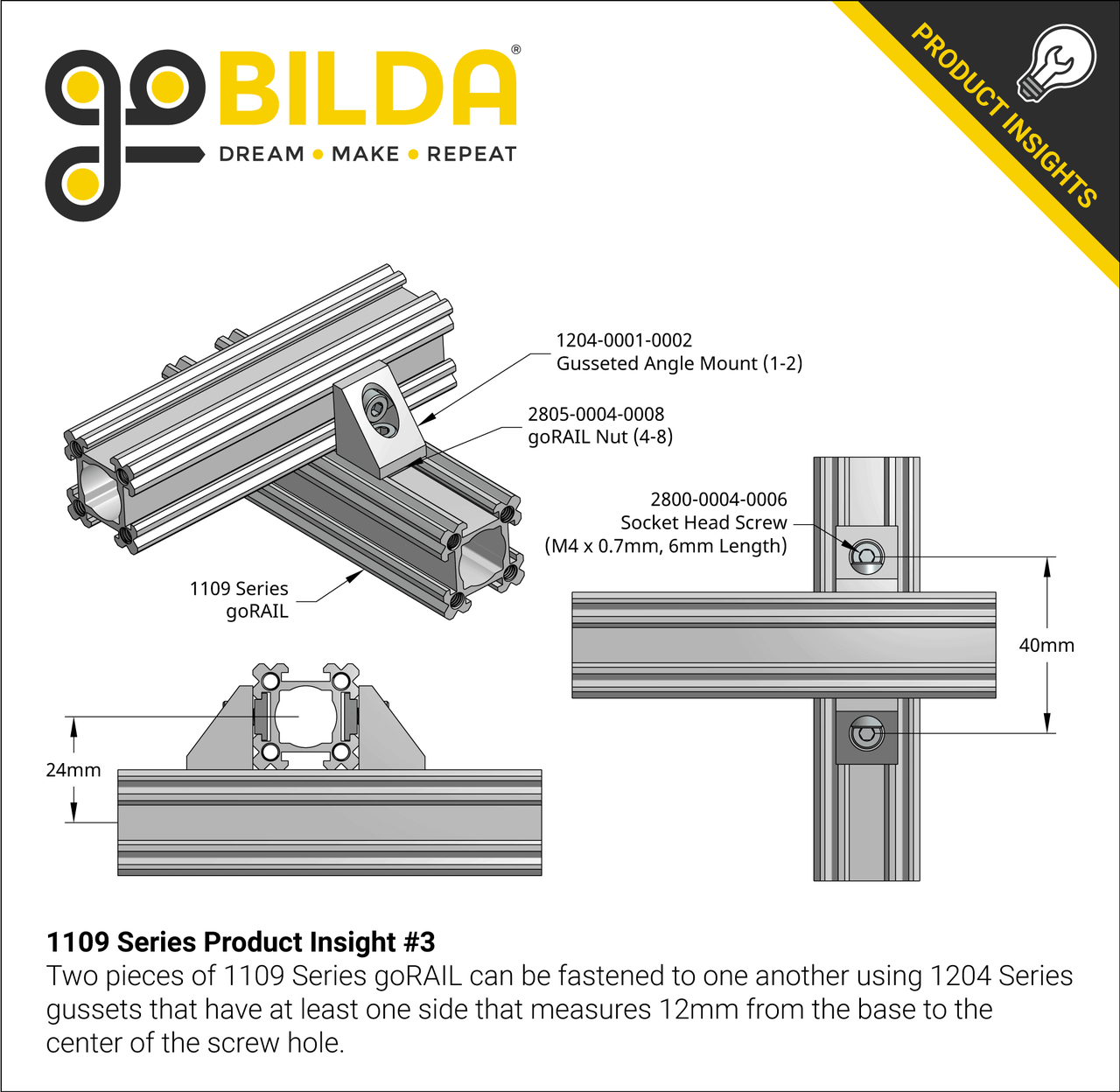

Hurricane Nuts and 5-Hole goRAIL® Nuts are perfect for utilizing the T-slots to create countless attachment possibilities using M4 screws. And at both ends of a length of goRAIL®, threaded holes of the goBILDA® 16mm square pattern allow for easy attachment to different structure—such as U-Channel and brackets, as well as other components throughout the build system.

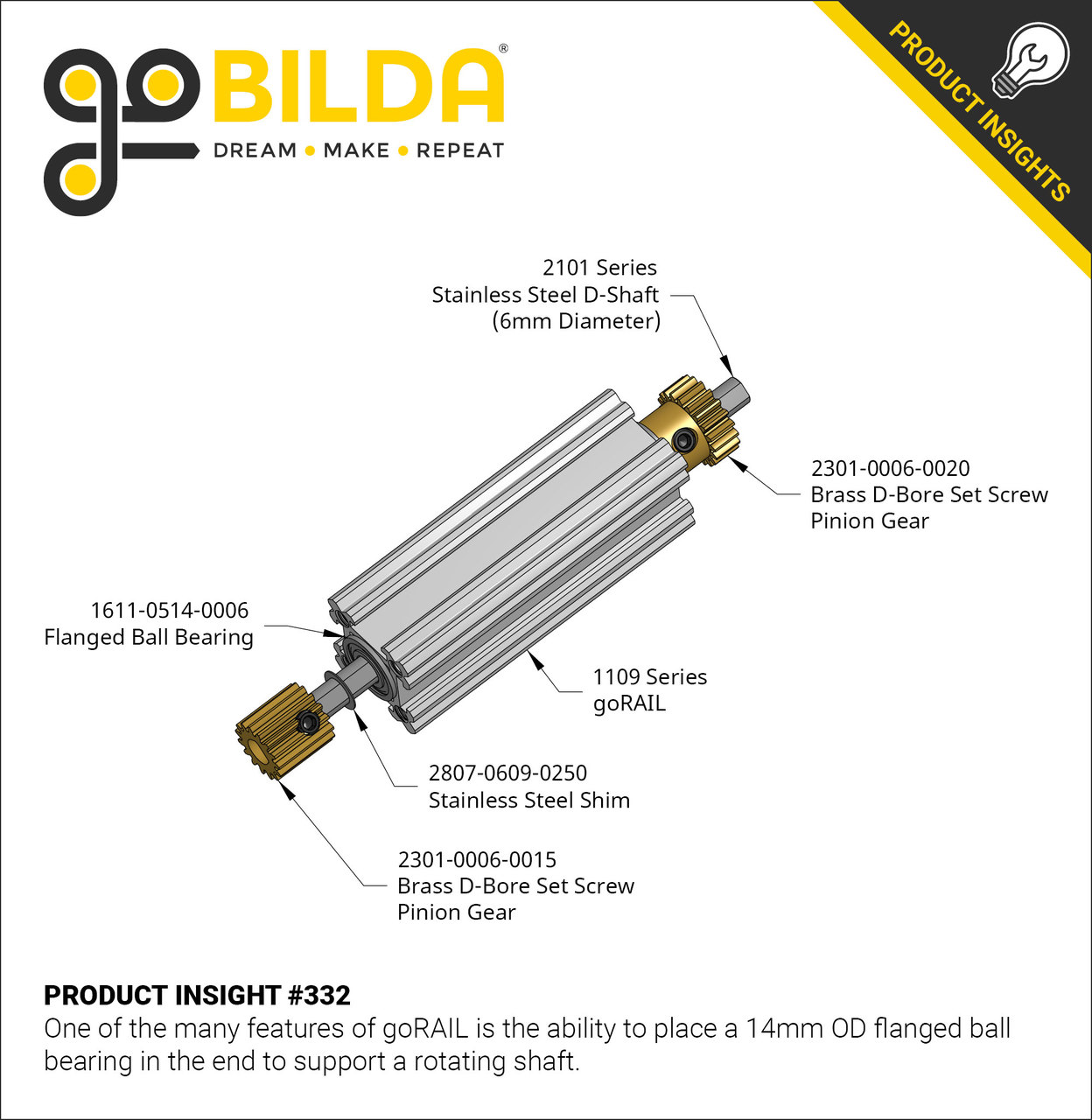

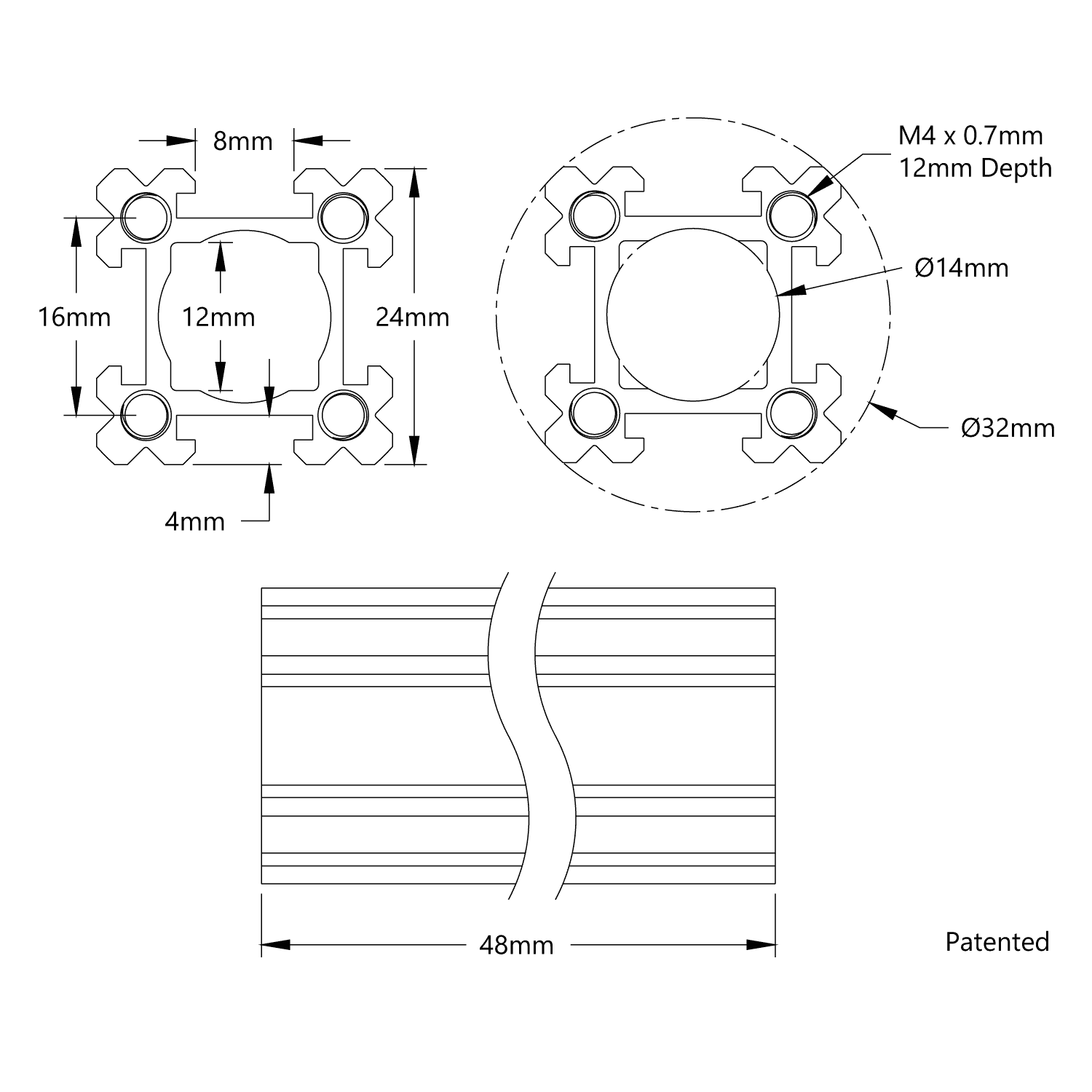

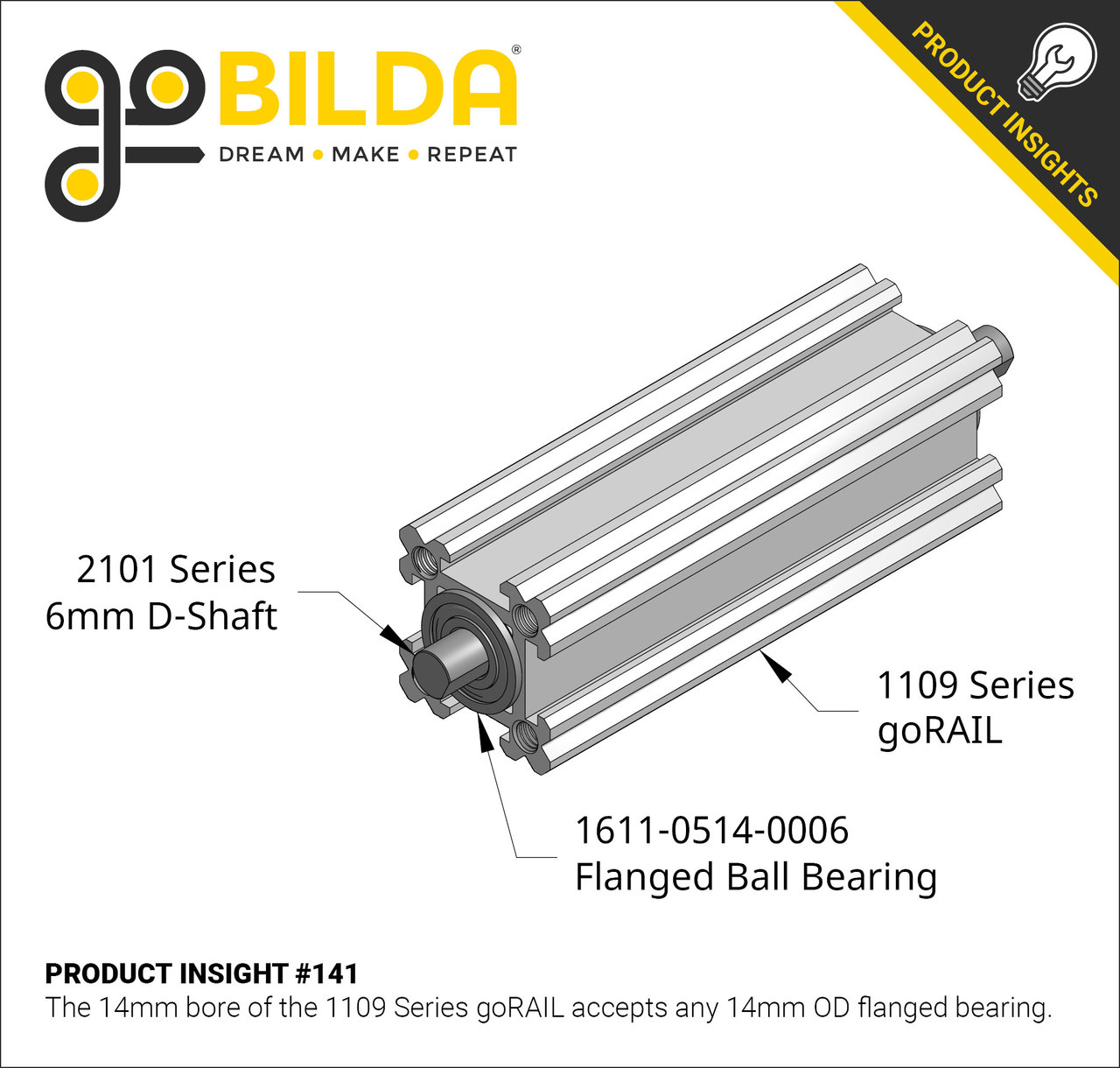

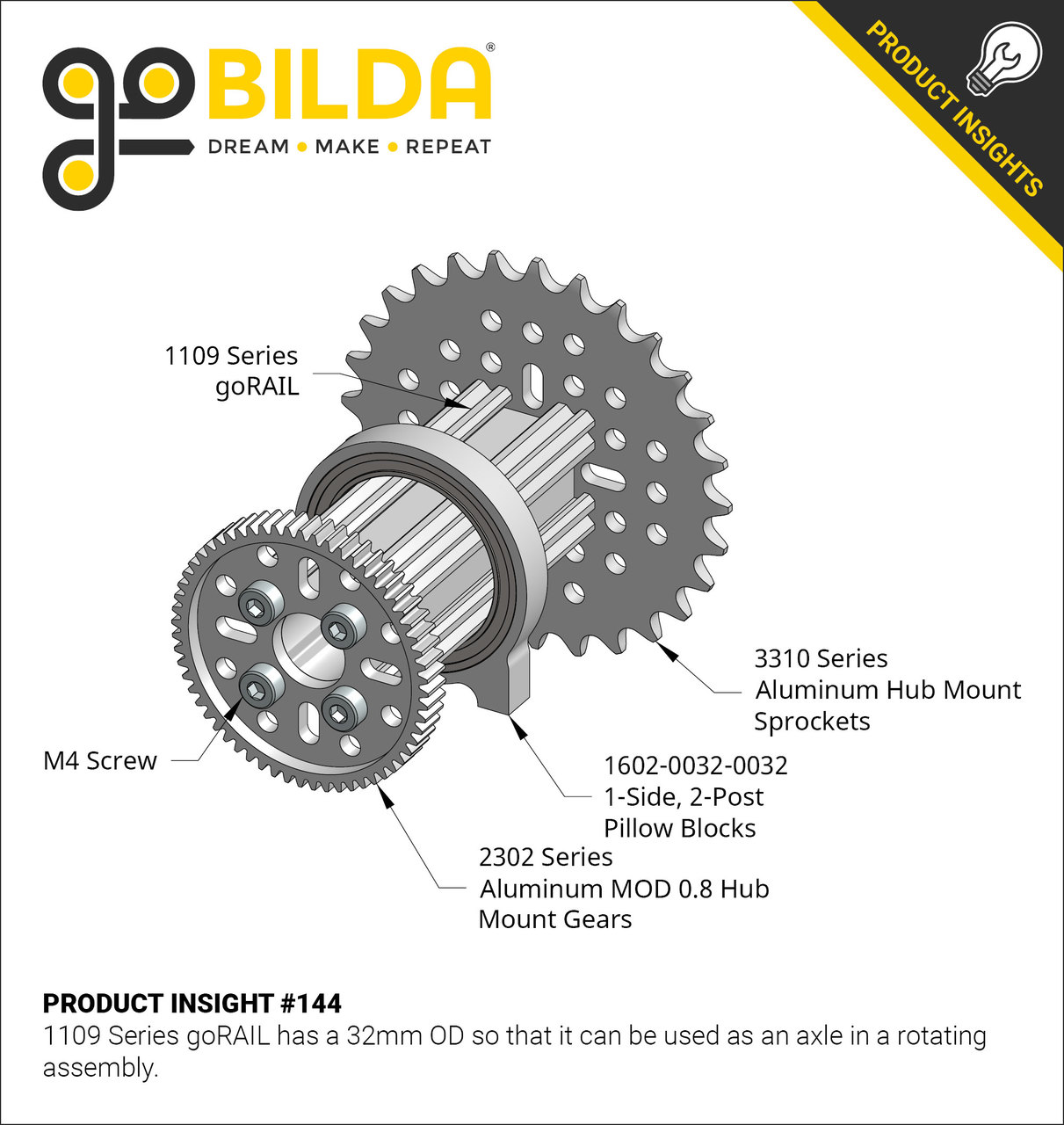

The 32mm overall diameter allows goRAIL® to rotate in 32mm bore bearings, while the 14mm center bore provides for the integration of bearings to support a shaft rotating inside goRAIL®. The center bore is also designed with an additional square profile for a profile-matched lead screw nut to create linear motion possibilities. And on the note of linear motion, the chamfered edges provide races for V-Wheels and W-Wheels to run on in linear motion assemblies!

Downloads

Specs

Weight 25g
Material Aluminum
Finish Clear Anodized
IP Patented
