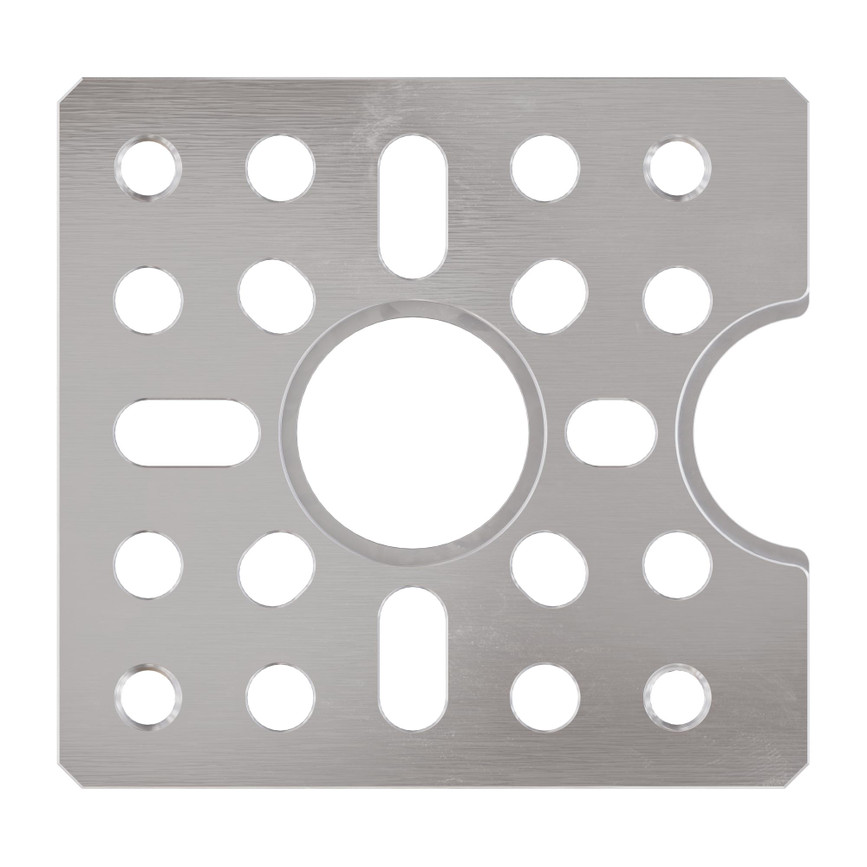

1201 Series Quad Block Pattern Mount (43-5)

SKU: Build System: goBILDA

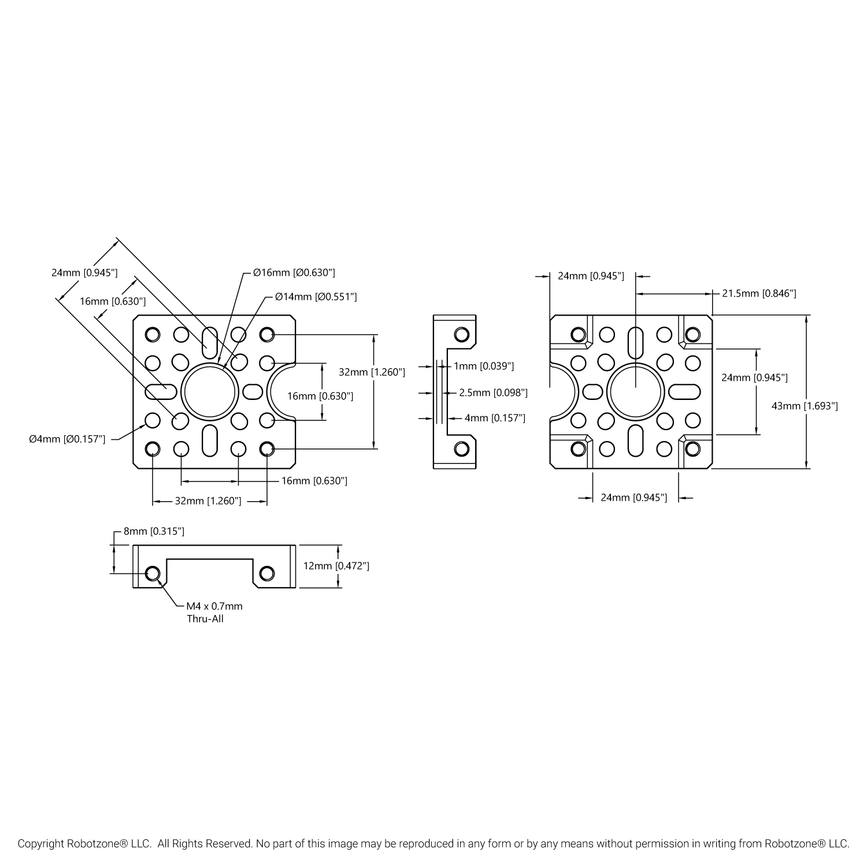

Possessing extreme versatility in channel-based builds, this 1201 Series Quad Block Pattern Mount is threaded from the front, back and sides for use in nearly unlimited ways! Where the popular 1201-0043-0002 is 43mm and symmetric, the asymmetric design of the 1201-0043-0005 leaves its top edge flush with the open edge of the channel. The 16mm pattern in the mount’s center has all thru-holes so that the part can easily fasten to the side of goBILDA® goRAIL and other extrusion-based structures.



Weight 22g
Material Aluminum
Finish Clear Anodized
