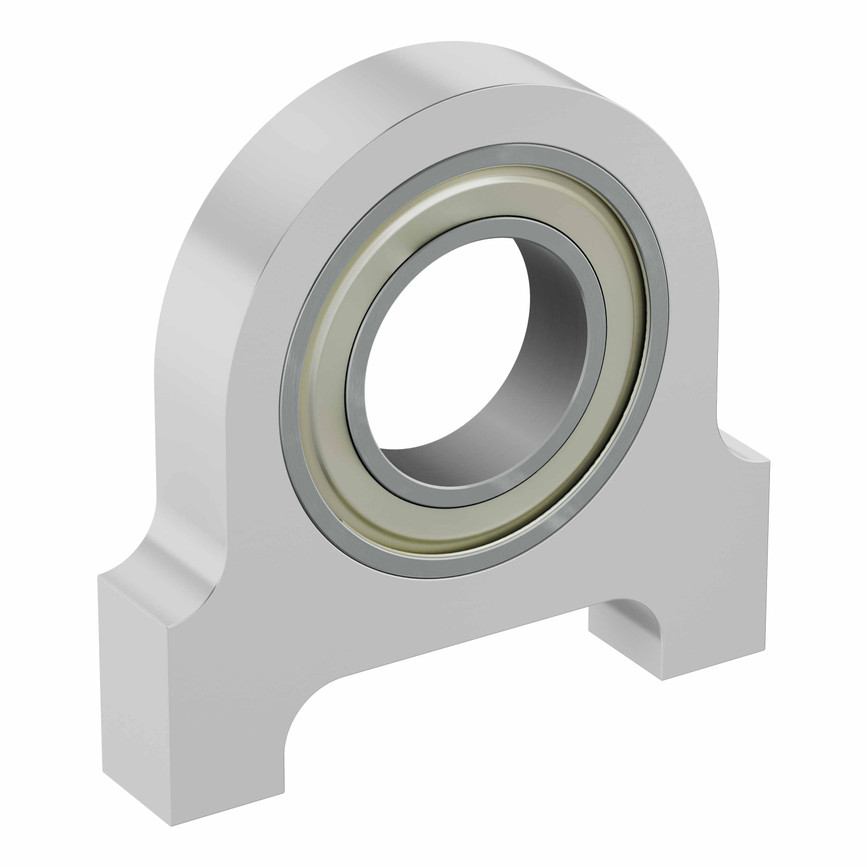

12mm Bore Bottom Tapped Pillow block

SKU:

DISCONTINUED This product has been discontinued.

$7.99
Discontinued

Currently Sold Out

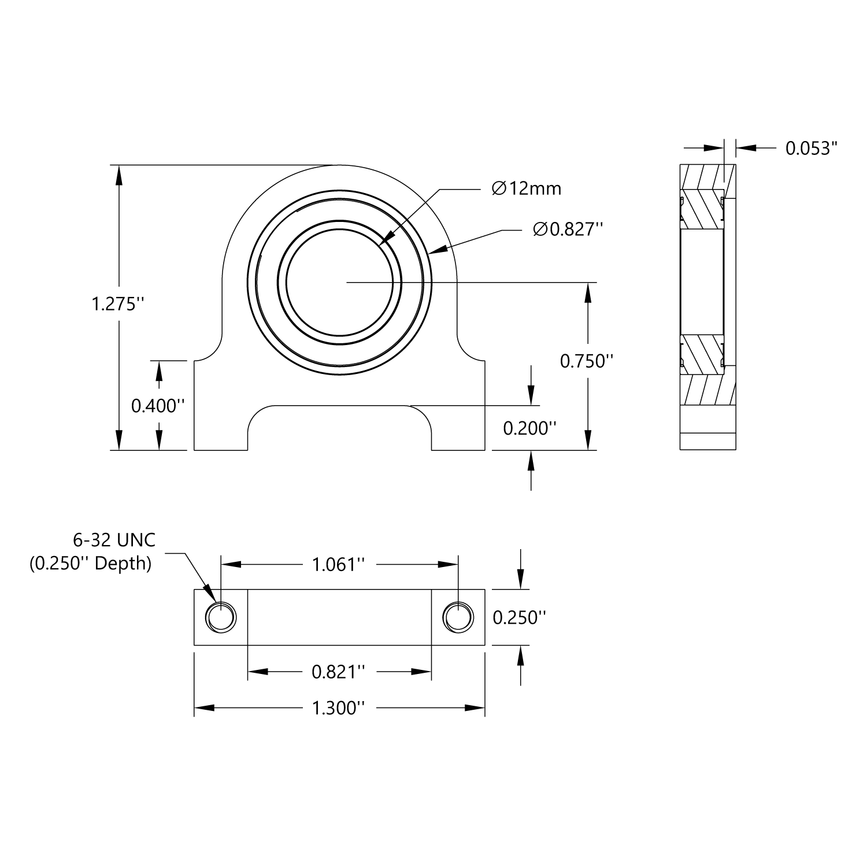

This 12mm Bottom Tapped Pillow Block has threaded holes on the feet in order to easily mount to a plate, bracket or channel. The height from base to the center of the bearing is 0.75" so that, when installed on the Actobotics pattern, you’re able to easily mesh 32 or 48 pitch gears. This particular size is commonly used with 12mm shafting to drive an axis of a multi-axis bed while supporting another axis with linear bearings installed on the same shaft. As with all pillow blocks, the included bearing is pressed in so you don’t have to worry about it walking out during use.

Downloads

Specs

Material Aluminum Housing, High-Carbon Steel Bearing
Weight 0.42 oz (12g)
Static Load 234 lbs
Max RPM 36,000
Bearing ID 12mm
Dynamic Load 430 lbs
