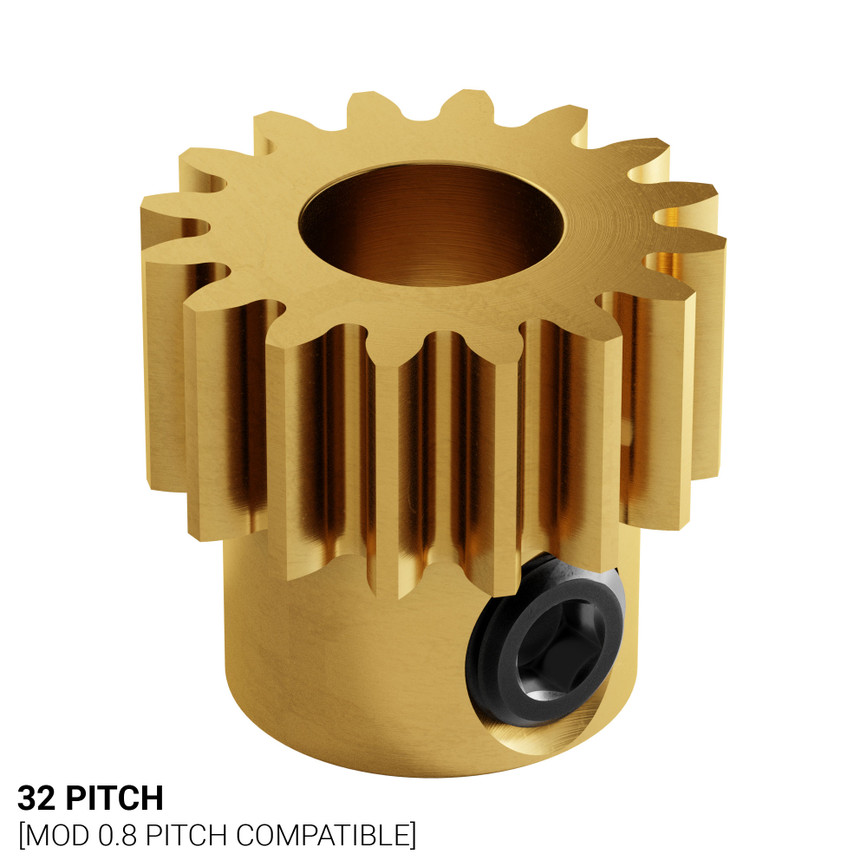

16T, 0.250" (1/4) Bore 32P Shaft Mount Pinion Gear

SKU:
$7.99

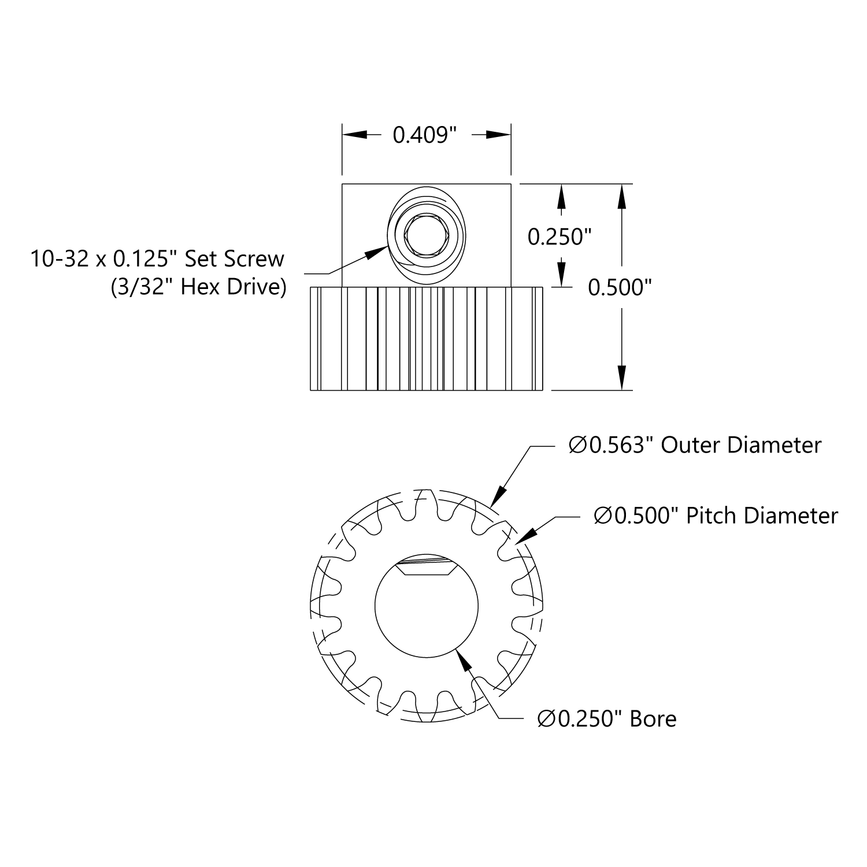

This 16 tooth pinion gear has a ¼” bore in order to fit on a ¼” round or D-profile shaft. When installed on a ¼” D-shaft, the 10-32 cupped point set-screw will tighten down onto the flat side of the shaft for an excellent hold.

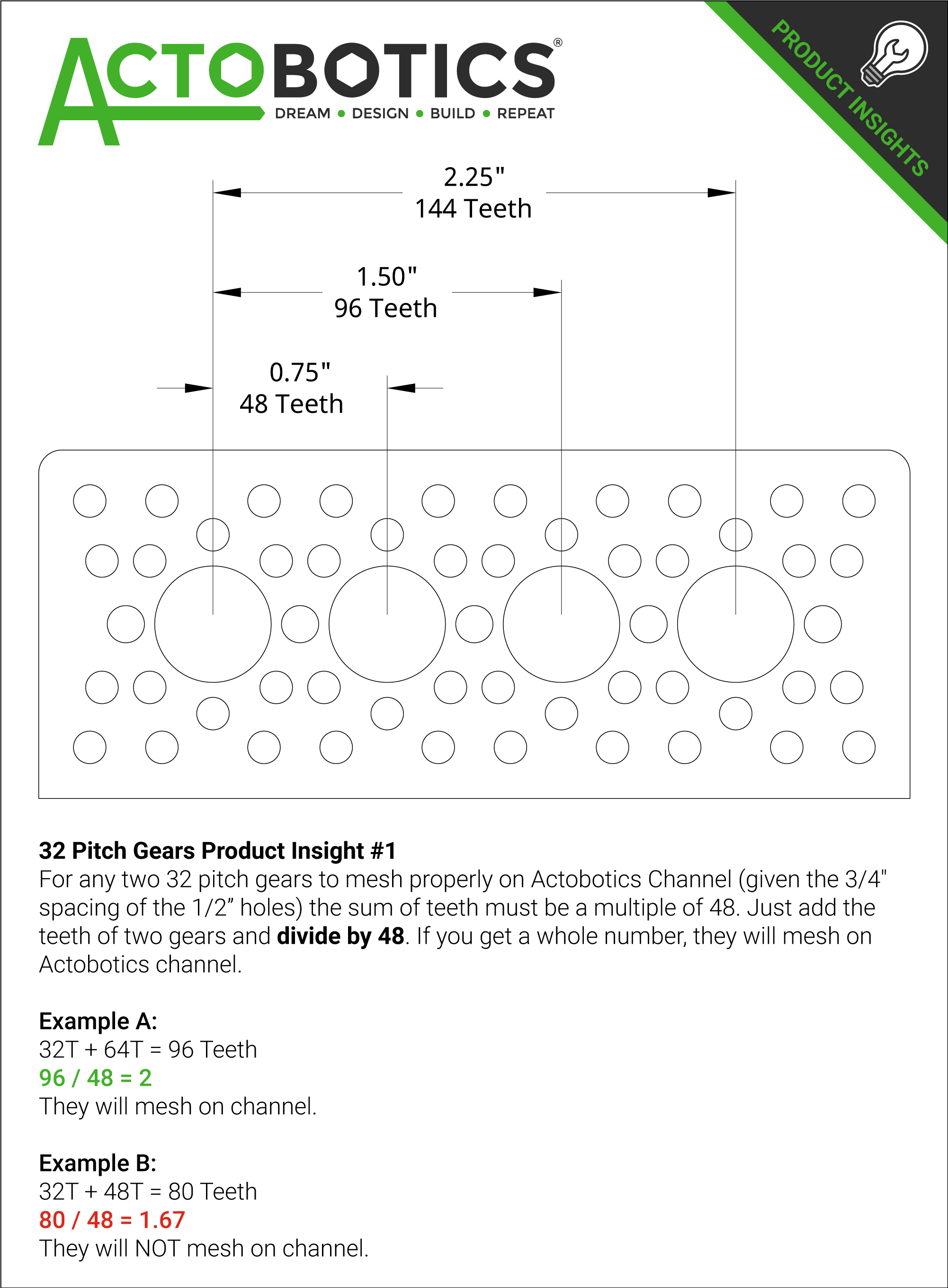

When building with Actobotics Channel, gear ratios are commonly created between holes spaced 0.75” or 1.5” apart. This gear meshes perfectly with another 32 pitch gear with a tooth count of 32 when located 0.75” apart or a tooth count of 80 when located 1.5” apart.

Downloads

Specs

# of teeth 16T
Weight 0.28 oz (8g)
Material Hardened Brass
Pressure Angle 20°
