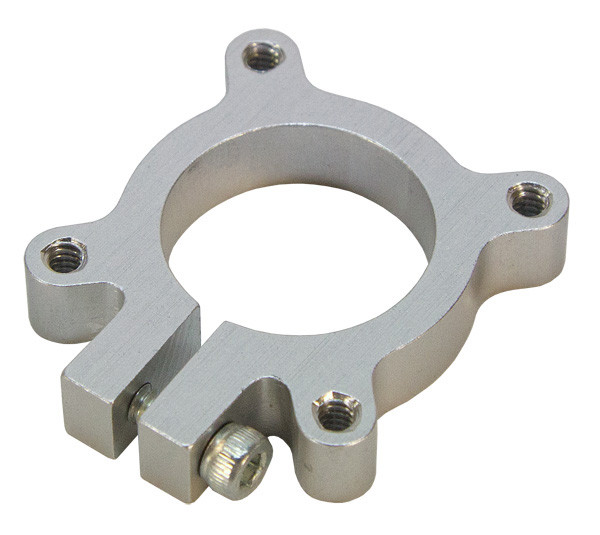

21mm Bore Aluminum Clamping Hub C

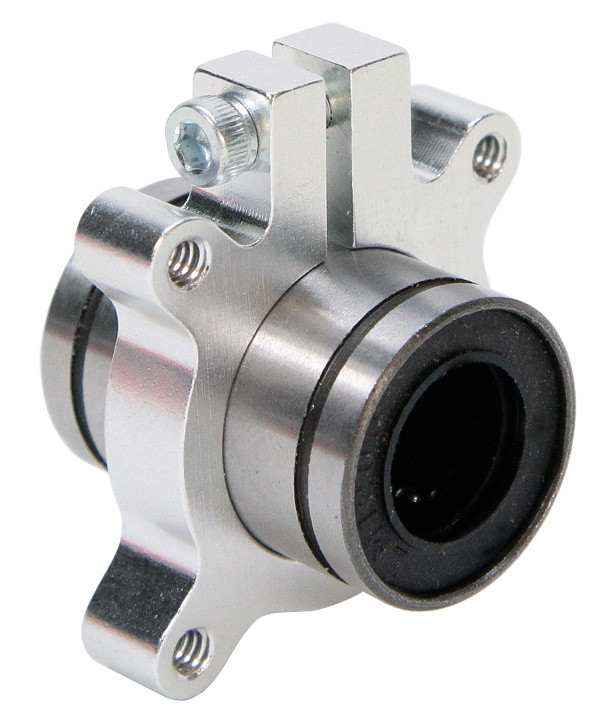

  • use with our 21mm OD Linear Ball Bearings
  • great for creating linear slides

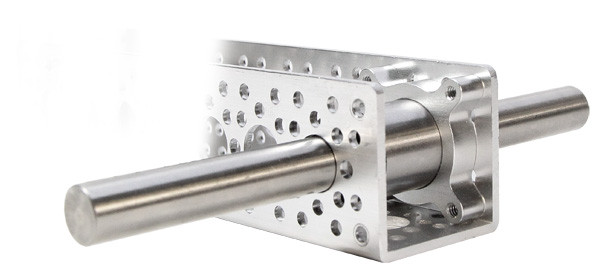

  • atach to the inside wall of channel using 1/8” 6-32 socket head machine screws
  • atach to the inside wall of channel using 1/8” 6-32 socket head machine screws

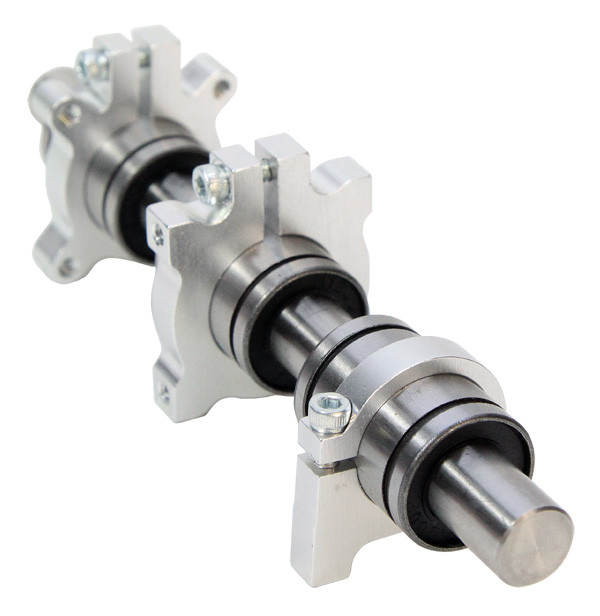

  • shown with our 21mm OD Linear Ball Bearings and 12mm shafting
1 of 7

Be the first to review this product

Price

Regular Price: $6.99

Special Price $4.89

Sign up for Price Alert
Part
545664
545664
Status
In stock
This Product? Share It!

Details

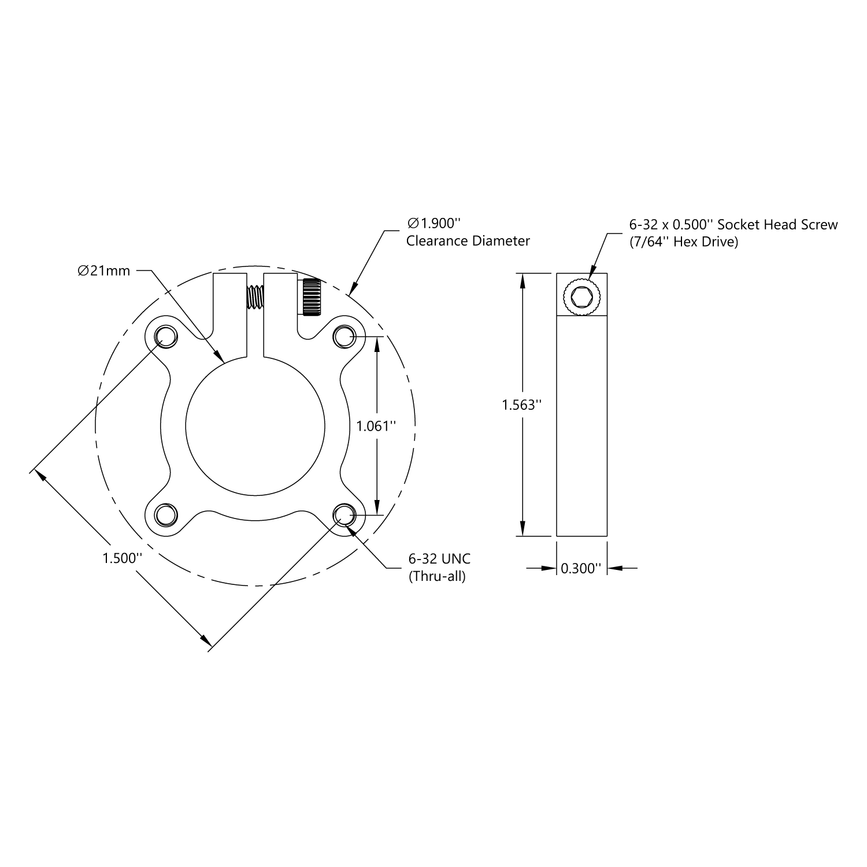

The 21mm Bore Aluminum Clamping Hub C is designed for use with our linear ball bearings (535214). This clamping hub has 4 equally spaced 6-32 tapped holes. The side clamping machine screw is a 6-32 x 1/2” socket head machine screw and accepts a 7/64” hex key.

SPECS

545664

Product Weight 0.50 oz
Material Aluminum
Coupling Style clamping
