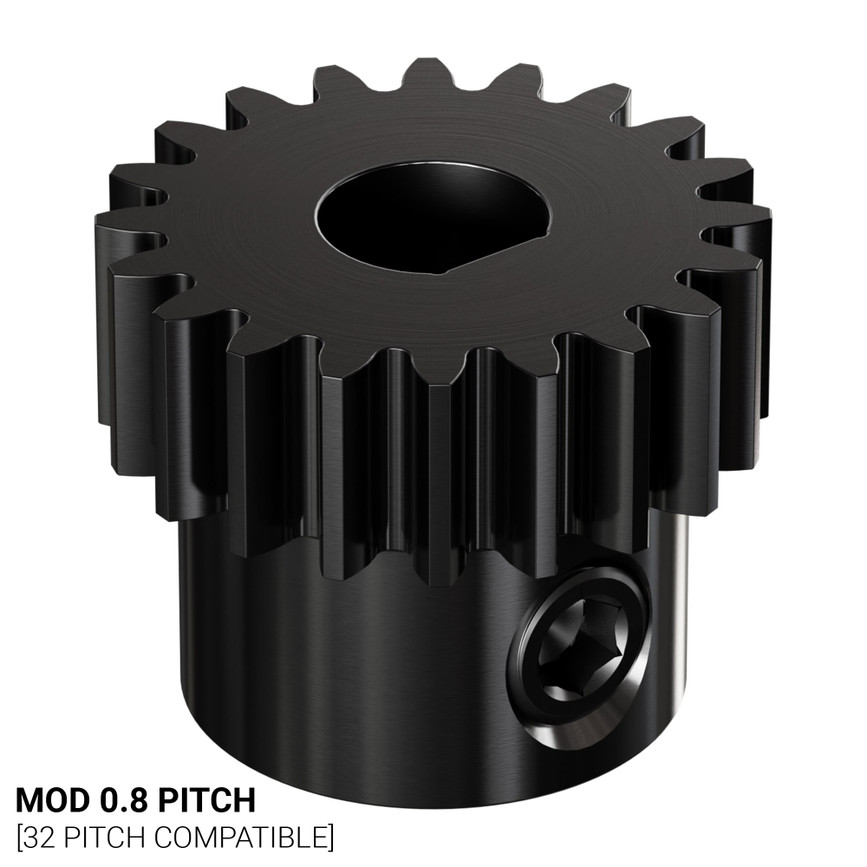

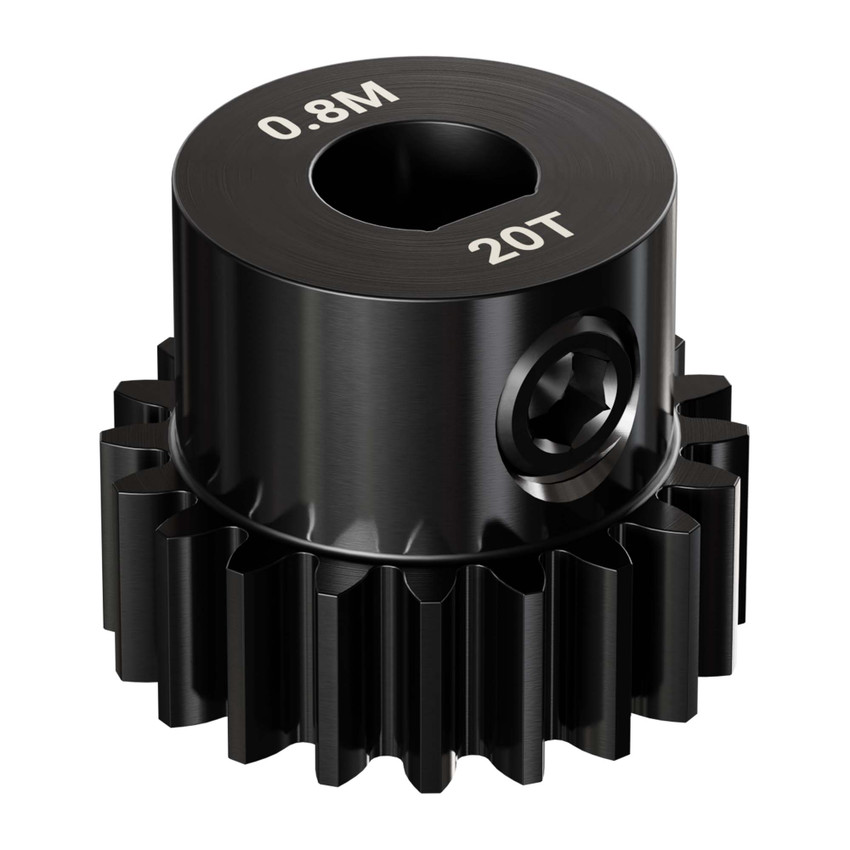

2303 Series Steel, MOD 0.8 Pinion Gear (6mm D-Bore, 20 Tooth)

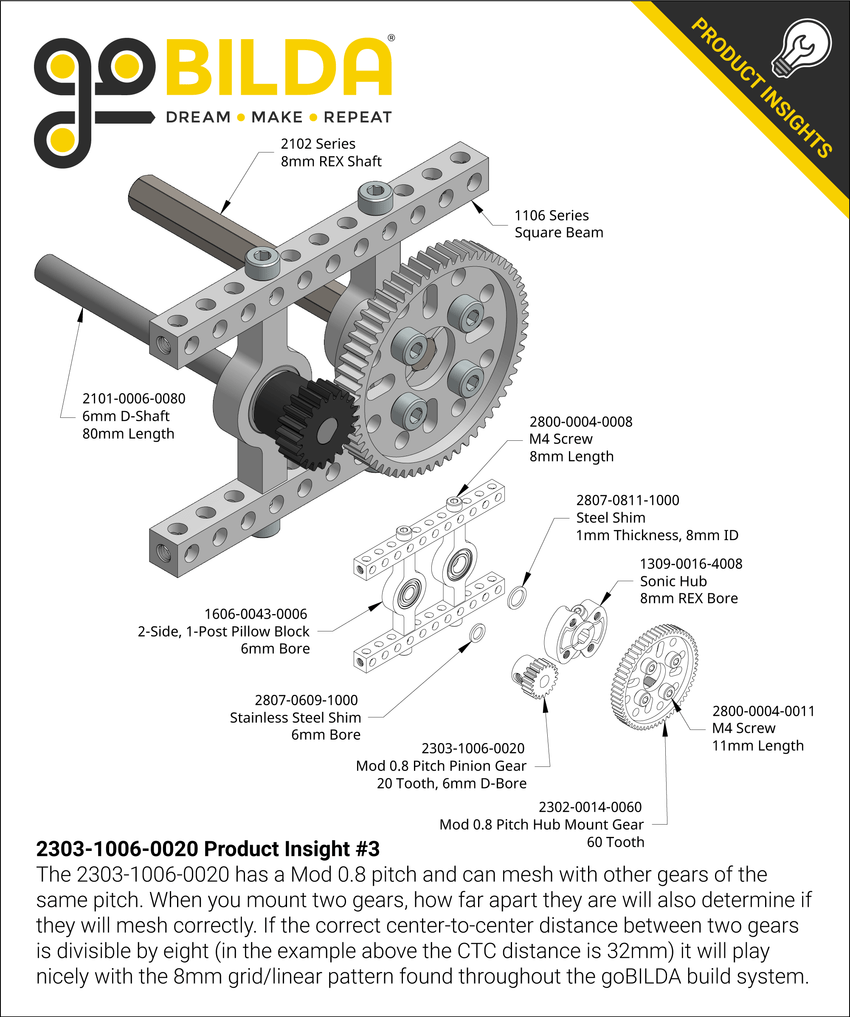

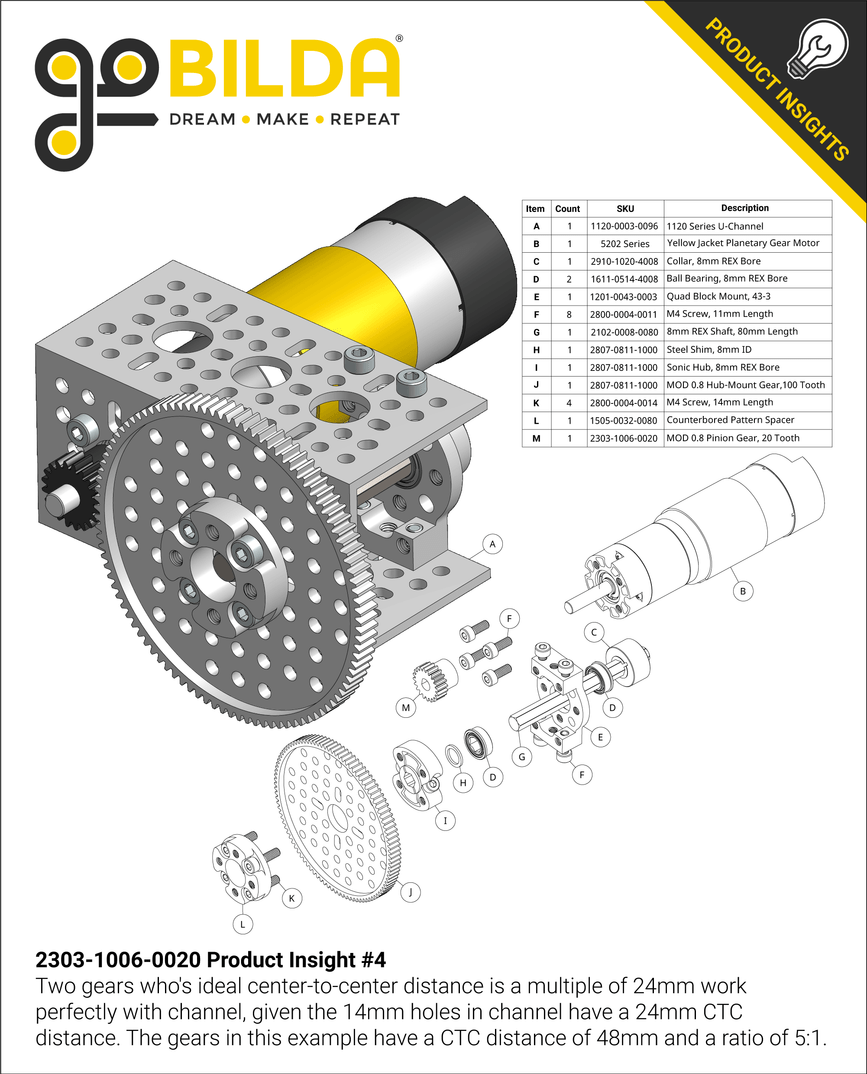

This 20 tooth 6mm D-bore pinion gear perfectly matches our 6mm D-shafting to create a positive drive.  This particular gear is able to be meshed with a 100 tooth hub gear spaced 48mm away for a 5:1 ratio on channel.  If your build provides the freedom to adjust the spacing between your gears, it’s able to mesh to any MOD 0.8 gear that suits your fancy.



Weight 15g
Material Steel
Finish Black Zinc-Plated
Tooth Count 20
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
