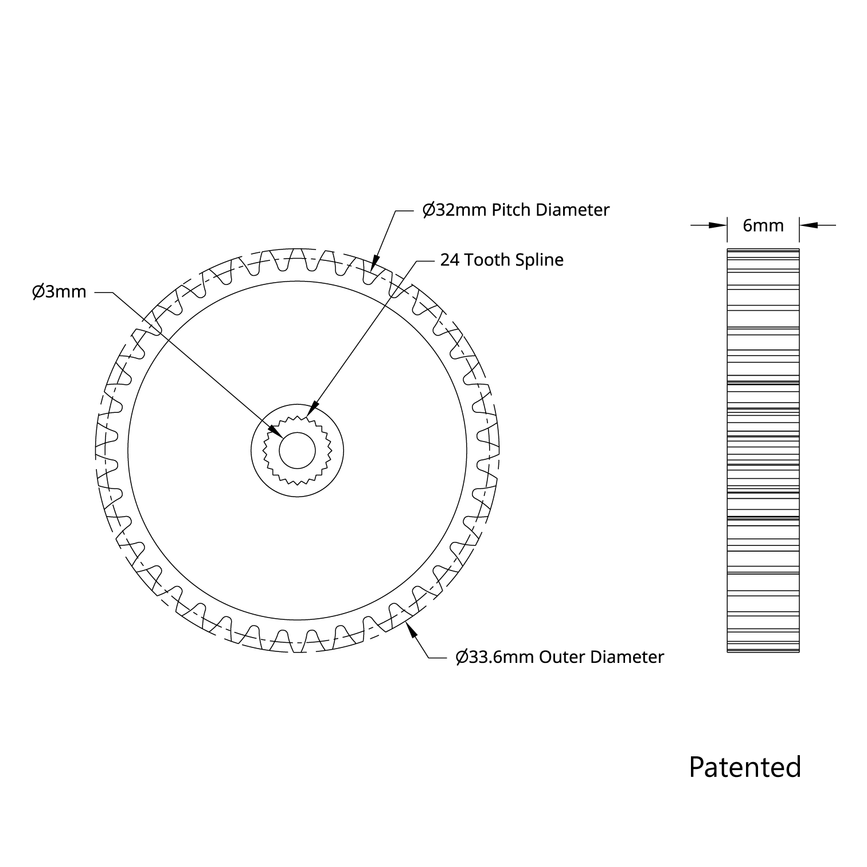

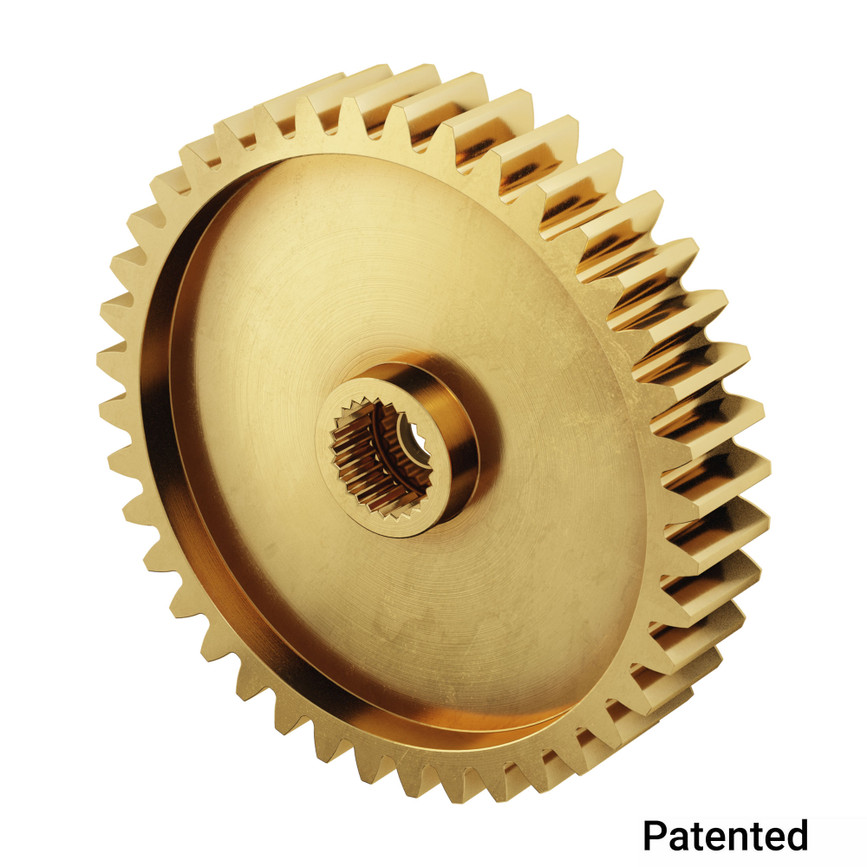

2305 Series Brass, MOD 0.8, Servo Gear (24 Tooth Spline, 40 Tooth)

SKU:
$9.99

This 40 tooth servo gear is most commonly used to drive the 80 tooth hub gear, spaced 48mm away, in order to create a 2:1 ratio.  This gear may also be used to drive a 20 tooth pinion gear spaced 24mm away for a 2:1 overdrive if you’re set out to increase the rotation of the servo.

Downloads

Specs

Weight 18g
Material Brass
Tooth Count 40
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
IP Patented
