Lightweight Actobotics Servo Horn (C24T Spline)

SKU:
$4.99

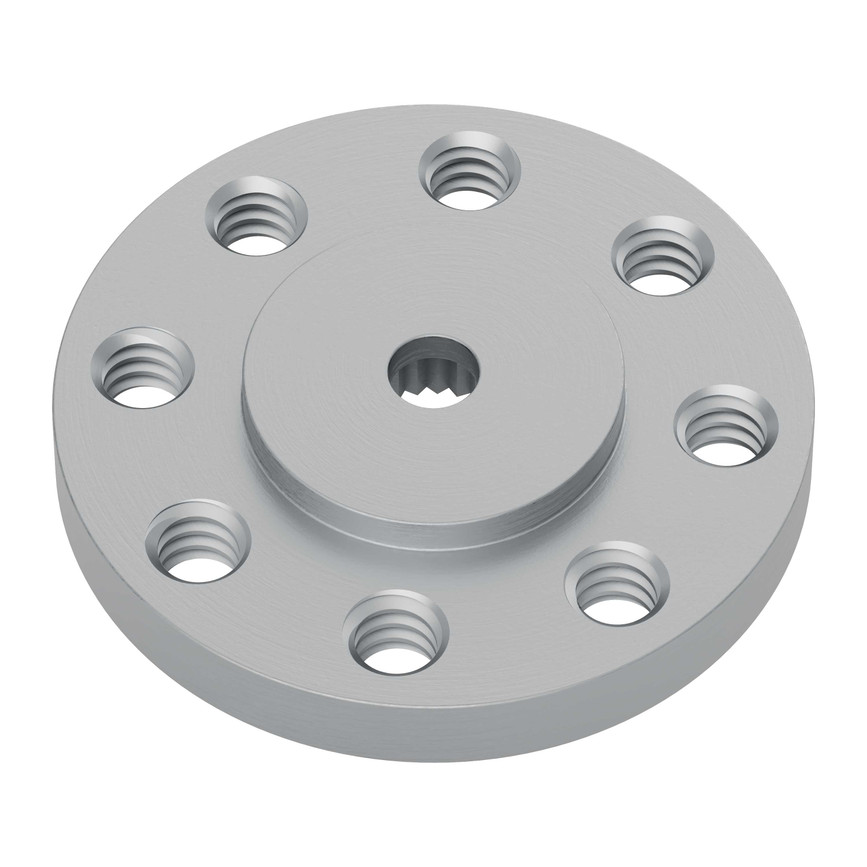

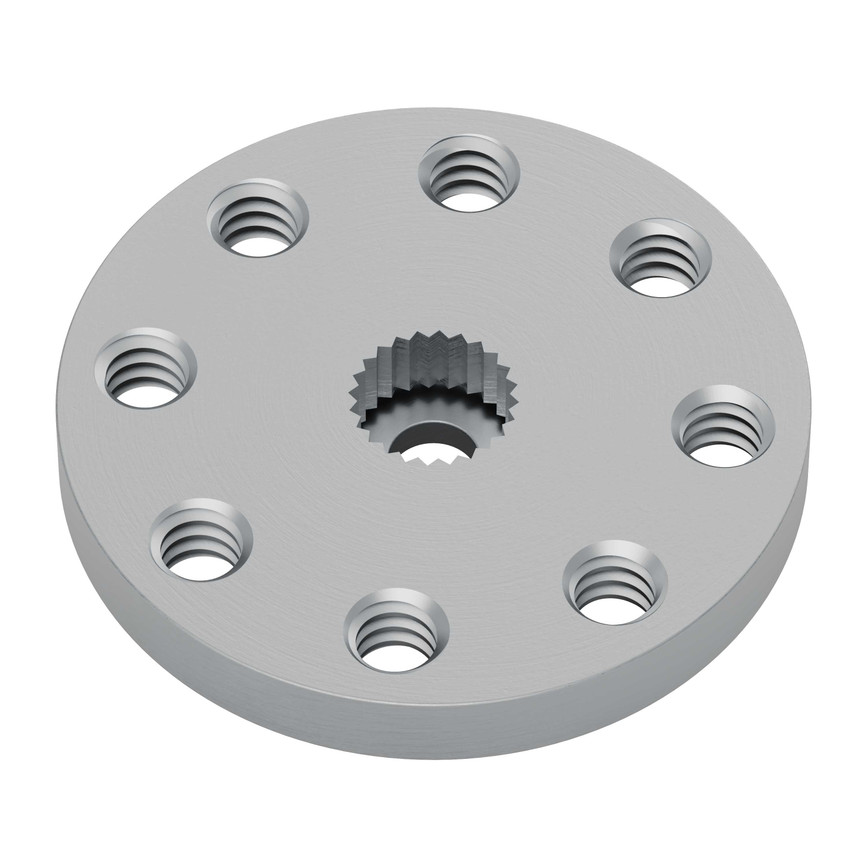

Much like the 525130, this 24T spline servo horn is a round disk that can be used to fasten Actobotics® components which possess the 0.77” hub pattern (and hence, the ½” hole in the center). This lightweight model is thinned out and does not contain the counterbored holes to minimize rotating mass and additional bulk.

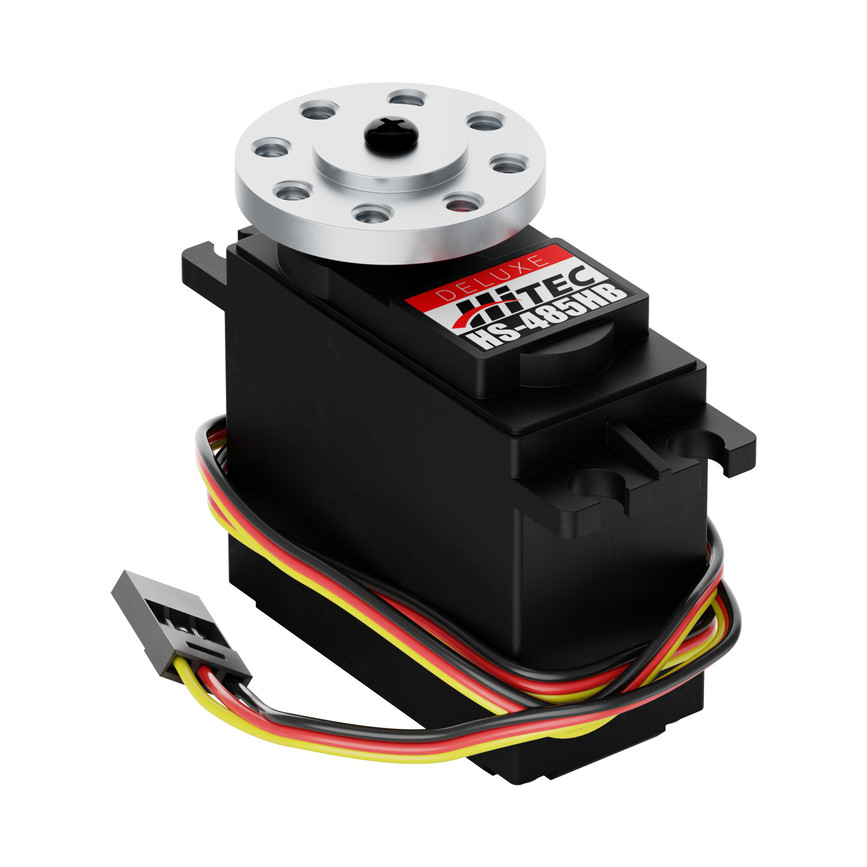

This servo hub is compatible with servos that have a 24T spline.

Downloads

Specs

Spline Size C24T Spline
Material Aluminum
Weight 0.15 oz (4.2g)
$4.99
