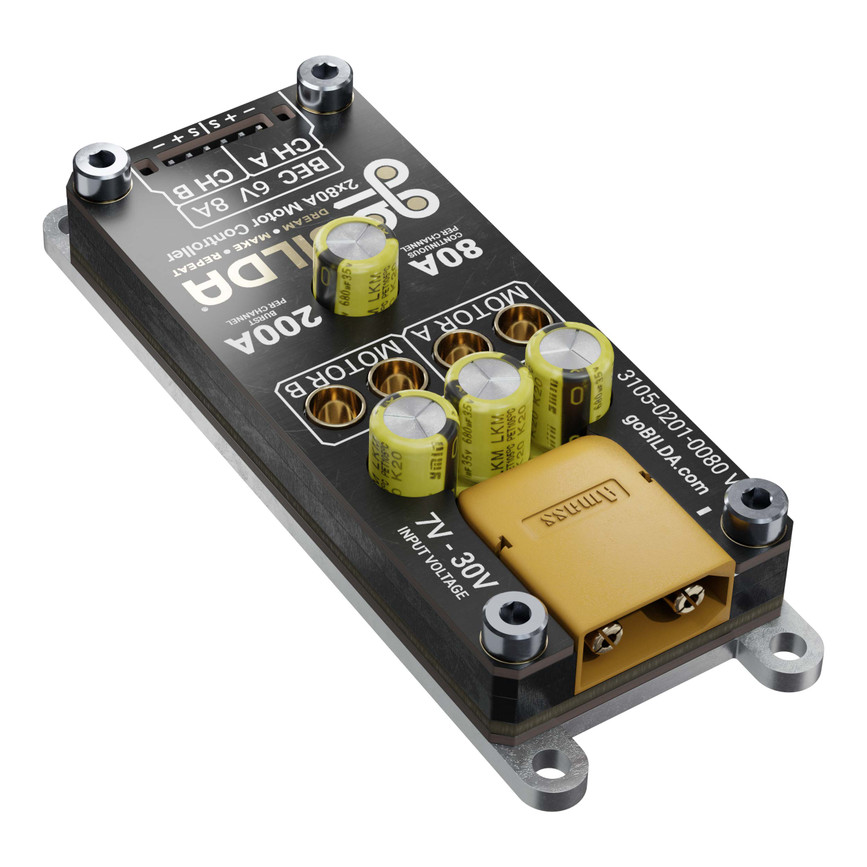

2x80A Motor Controller [V1]
SKU:![2x80A Motor Controller [V1]](https://cdn11.bigcommerce.com/s-f6vfspkkjf/images/stencil/original/products/5169/24357/3105-0201-0080__42032__67076.1748640278.jpg?c=1 "2x80A Motor Controller [V1]")
![2x80A Motor Controller [V1]](https://cdn11.bigcommerce.com/s-f6vfspkkjf/images/stencil/original/products/5169/24355/3105-0201-0080_Ang2__23099__99645.1748640278.jpg?c=1 "2x80A Motor Controller [V1]")
DISCONTINUED This product has been discontinued.
This beast of a motor controller is ready to proportionally control the speed & direction of your brushed DC motors!
Each of the two channels can handle 80A continuously and up to 200A for a short period. The rigid body has aluminum mounting tabs making it easy to fasten down to your project.
Power Input:
Supply anywhere from 7 - 30V to the XT90 connector to power your motors.
Signal Input:
Plug your RC receiver, Arduino, or another source of a standard PWM signal into the CHA and/or CHB ports. The beefy 6V 8A BEC will supply power out via the + pins.
Output:
Plugin one or two brushed DC motors via the 6mm bullet connectors.
Saftey Features:
- Reverse Voltage Protection
- Current Limit Protection
- Short Circuit Protection
- Over Temp Protection
- BEC Reverse Voltage Protection
- BEC Current Limit Protection
- BEC Short Circuit Protection
- BEC Over Temp Protection
Downloads
Specs
| Compatible Motor Type | Brushed DC |
|---|---|
| Motor Direction | Bidirectional |
| Motor Channels | 2 |
| PWM Range | 1000 – 2000µs |
| Voltage Range | 7 – 30V |
| Continuous Current per Channel | 80A |
| Burst Current per Channel | 200A |
| BEC Voltage | 6.4V |
| BEC Continuous Current | 8A |
| BEC Burst Current | 15A |
| Power Connector | XT90 |
| Motor Connectors | 6mm Bullet |
| Signal Connector | 0.1” Pitch Male Header / TJC8 |
| Signal Voltage | 5V/3.3V |
| Weight | 106g |
