3/8" Bore, Face Thru-Hole Pillow Block
SKU:

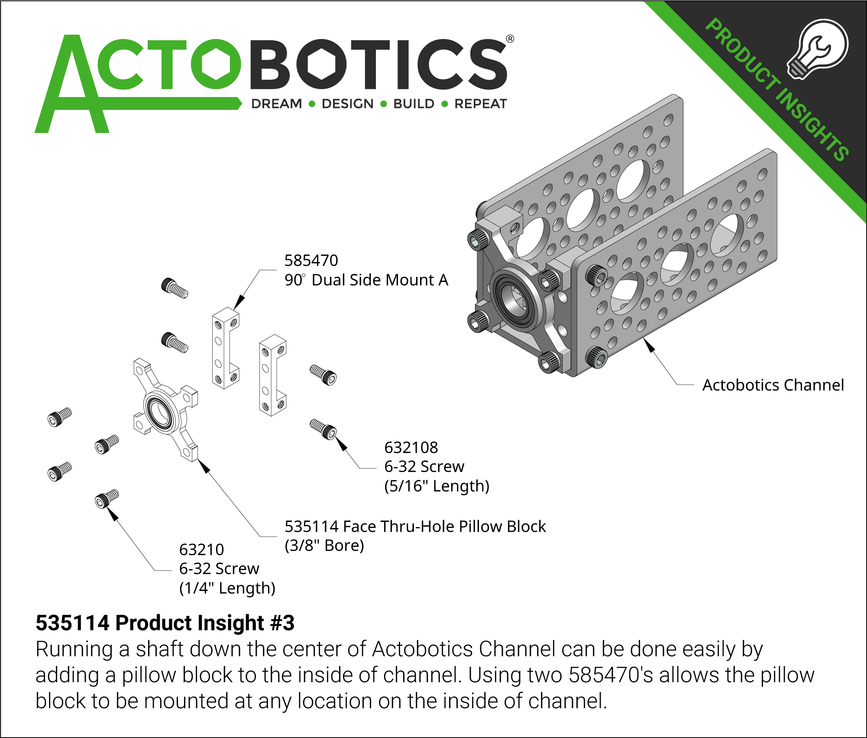

This ⅜" pillow block allows a bearing to be mounted to the Actobotics 1.5" pattern. The pressed-in bearing is held from moving axially so you don’t have to have a collar or nearby component to keep it from moving.
Downloads
Specs
| Material | Aluminum Housing, High-Carbon Steel Bearing |
|---|---|
| Weight | 0.24 oz (6.8g) |
| Static Load | 92 lbs |
| Max RPM | 30,000 |
| Bearing ID | 0.375" |
| Dynamic Load | 187 lbs |
