3/8" Bore Side Tapped Pillow Block
SKU:

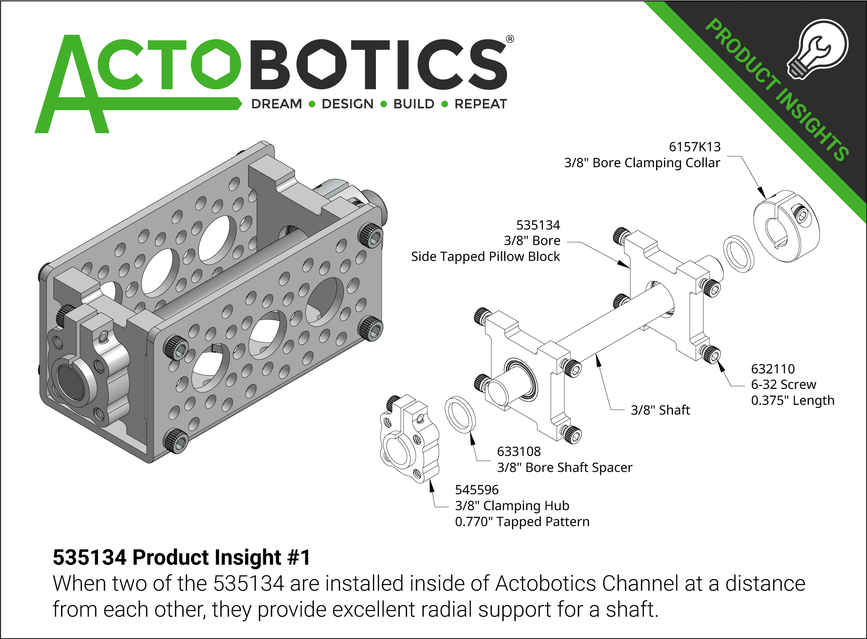

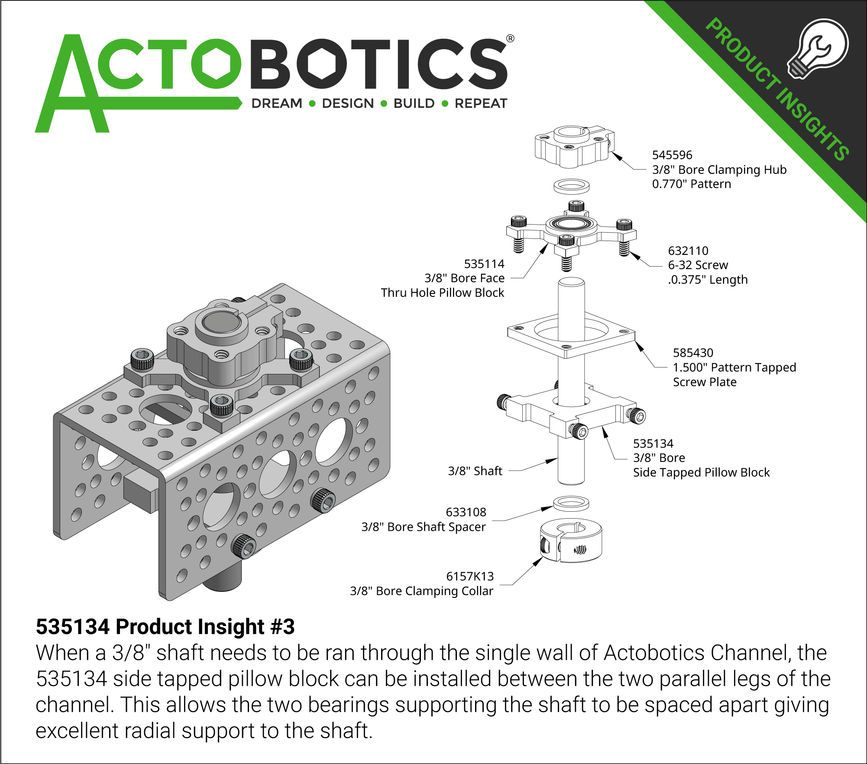

This ⅜" pillow block is able to slide down inside of channel and mount solidly from each side with 6-32 screws. Doing this not only provides a solid mount for the bearing, but it also provides additional support to the channel by tying the sides together.
Downloads

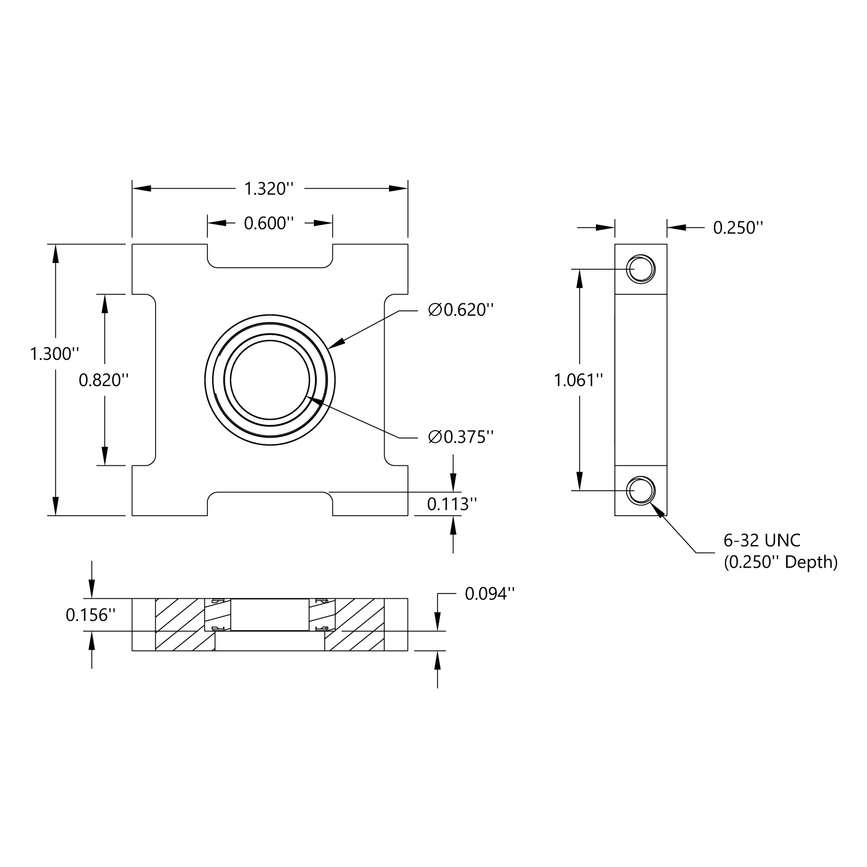

Specs
| Material | Aluminum |
|---|---|
| Weight | 0.49 oz (14g) |
| Static Load | 92 lbs |
| Max RPM | 30,000 |
| Bearing ID | 0.375" |
| Dynamic Load | 187 lbs |
