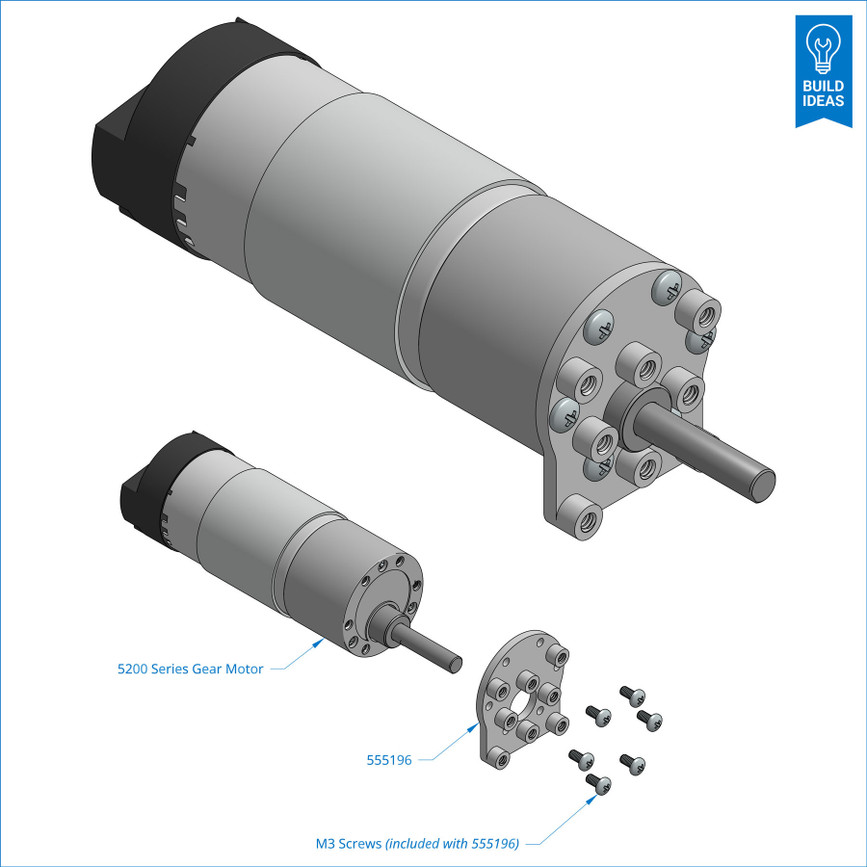

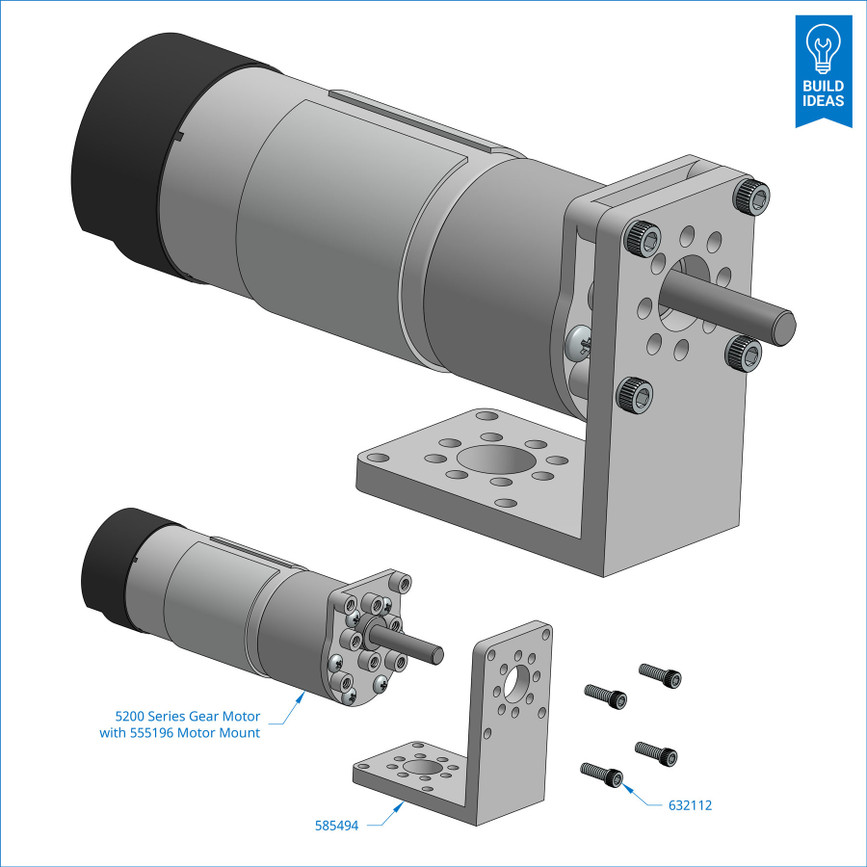

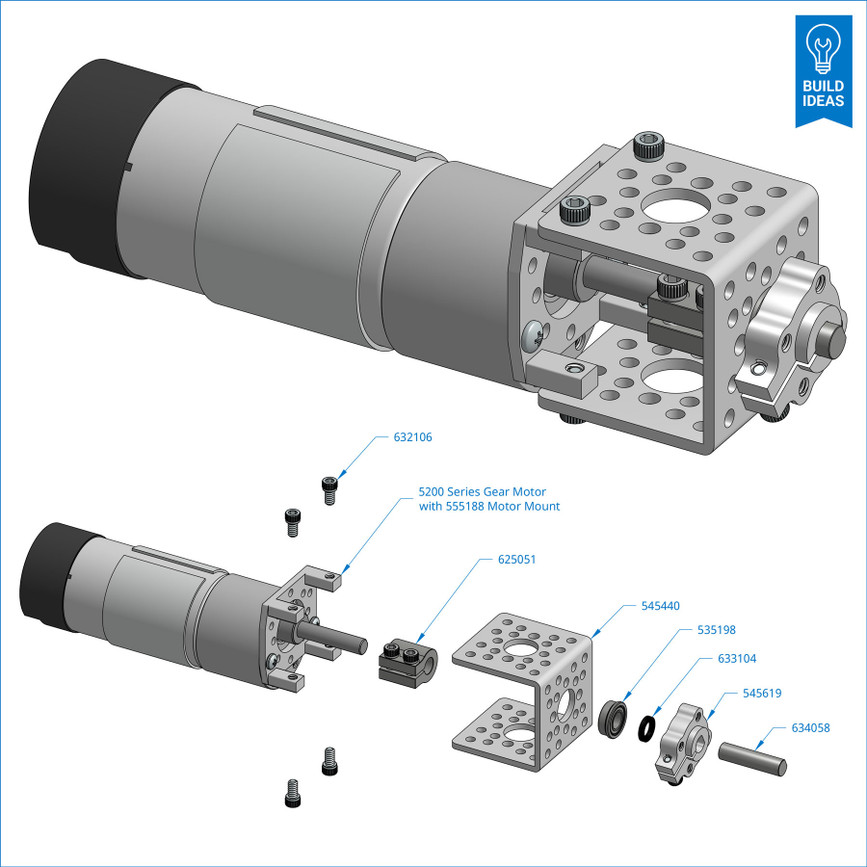

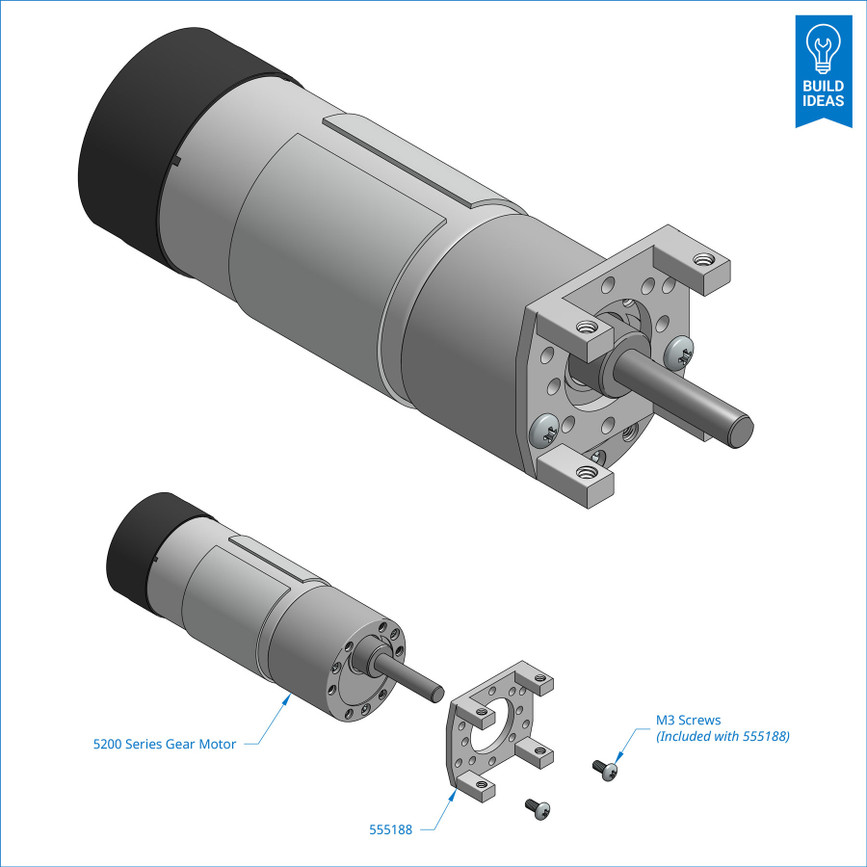

317 RPM Spur Gear Motor w/Encoder

1 of 7

Be the first to review this product

Part
5200-0002-0026
5200-0002-0026
Status
In stock
This Product? Share It!
SPECS

Stalling this gear motor could cause gear damage.

*At Nominal Voltage

Speed (No Load)* 317 rpm
Current (No Load)* 0.5 A
Current (Stall)* 20.7 A
Torque (Stall)* 510 oz-in
Gear Ratio 25.83:1
Gear Material Metal
Gearbox Style Spur
Wire Length 18.50" (470 mm)
Product Weight 11.71 oz (331.97 g)
Encoder: Cycles Per Revolution (Motor Shaft) 7
Encoder: Cycles Per Revolution (Output Shaft) 180.81
Encoder: Countable Events Per Revolution (Motor Shaft) 28
Encoder: Countable Events Per Revolution (Output Shaft) 723.24
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Sensor Input Voltage Range 5 V
Encoder Sensor Output Pulse Amplitude ~= Sensor Input Voltage
