32 Pitch, 64 Tooth (.50" Bore) Aluminum Hub Gear

SKU:
$12.99

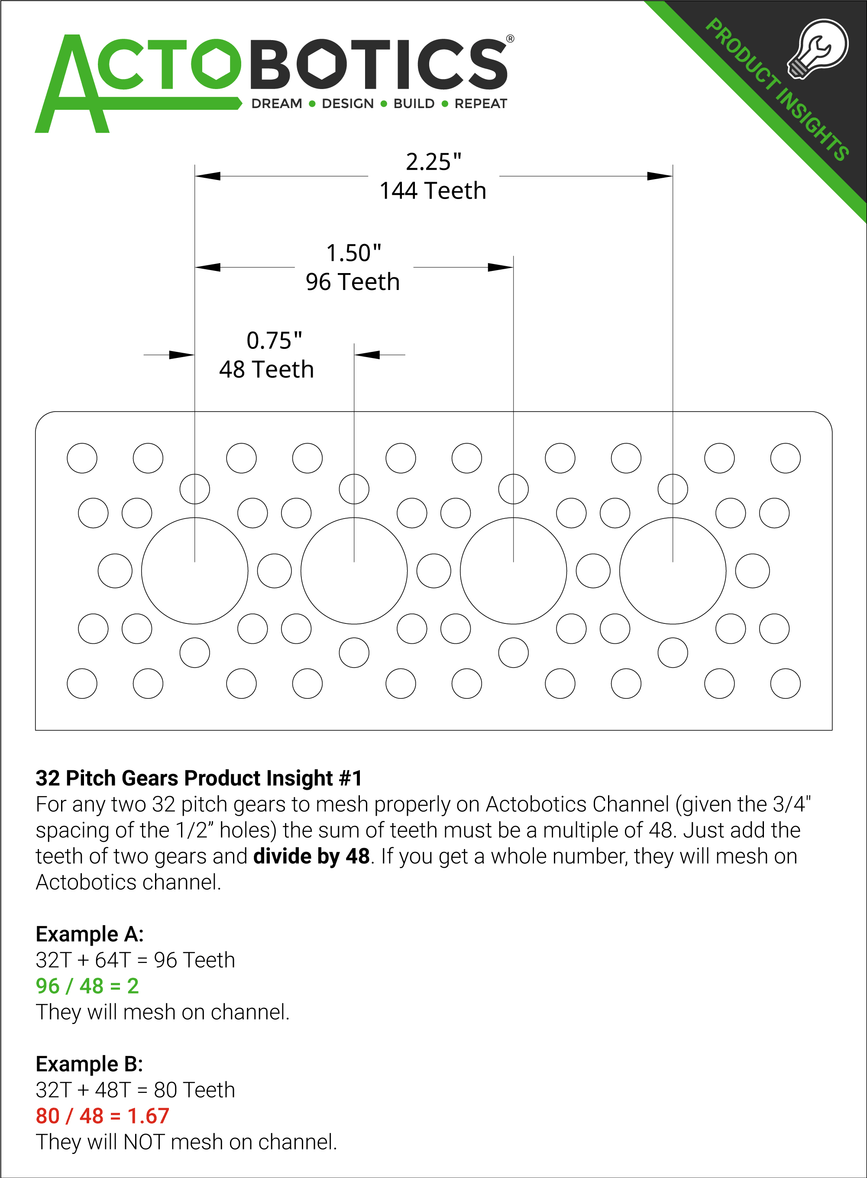

This 64 tooth hub gear is a popular choice, paired with a 32 tooth pinion gear, to create a 2:1 ratio between holes spaced 1.5” apart.  The ½” bore and 0.77” Actobotics hub pattern means you can attach a hub with the bore of your choice.  The gear has a dished side and a flat side so that you can adjust the position of your gear by flipping it over.

Downloads

Specs

# of teeth 64T
Weight .60 oz (17g)
Material Aluminum
Finish Clear Anodized
